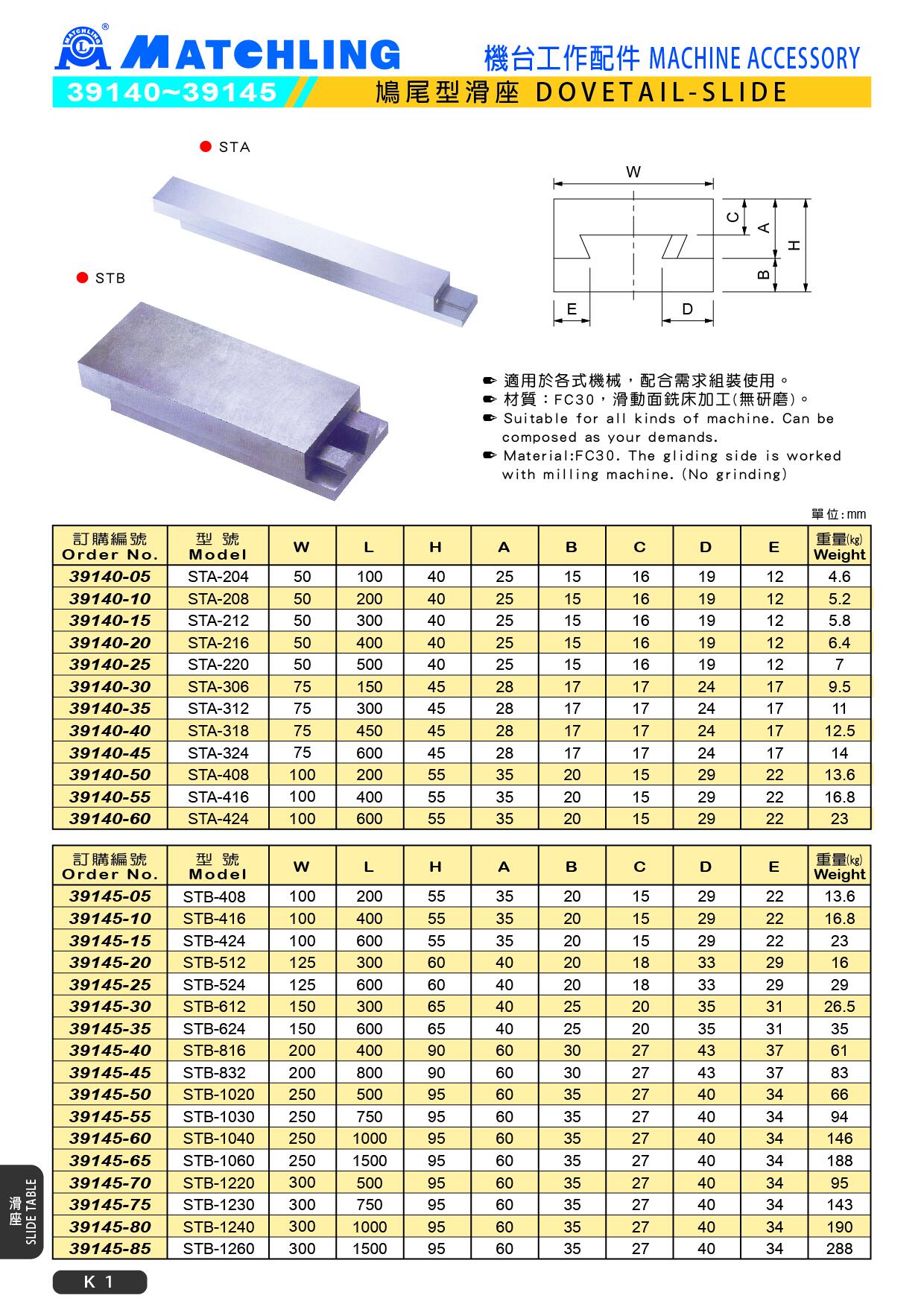

39140 DOVETAIL-SLIDE
● Suitable for all kinds of machine. Can be composed as your demands.
● Material:FC30. The gliding side is worked with milling machine. (No grinding)
unit：mm
| Order No. | Model | W | L | H | A | B | C | D | E | Weight (kg) |
| 39140-05 | STA-204 | 50 | 100 | 40 | 25 | 15 | 16 | 19 | 12 | 4.6 |
| 39140-10 | STA-208 | 50 | 200 | 40 | 25 | 15 | 16 | 19 | 12 | 5.2 |
| 39140-15 | STA-212 | 50 | 300 | 40 | 25 | 15 | 16 | 19 | 12 | 5.8 |
| 39140-20 | STA-216 | 50 | 400 | 40 | 25 | 15 | 16 | 19 | 12 | 6.4 |
| 39140-25 | STA-220 | 50 | 500 | 40 | 25 | 15 | 16 | 19 | 12 | 7 |
| 39140-30 | STA-306 | 75 | 150 | 45 | 28 | 17 | 17 | 24 | 17 | 9.5 |
| 39140-35 | STA-312 | 75 | 300 | 45 | 28 | 17 | 17 | 24 | 17 | 11 |
| 39140-40 | STA-318 | 75 | 450 | 45 | 28 | 17 | 17 | 24 | 17 | 12.5 |
| 39140-45 | STA-324 | 75 | 600 | 45 | 28 | 17 | 17 | 24 | 17 | 14 |
| 39140-50 | STA-408 | 100 | 200 | 55 | 35 | 20 | 15 | 29 | 22 | 13.6 |
| 39140-55 | STA-416 | 100 | 400 | 55 | 35 | 20 | 15 | 29 | 22 | 16.8 |
| 39140-60 | STA-424 | 100 | 600 | 55 | 35 | 20 | 15 | 29 | 22 | 23 |
