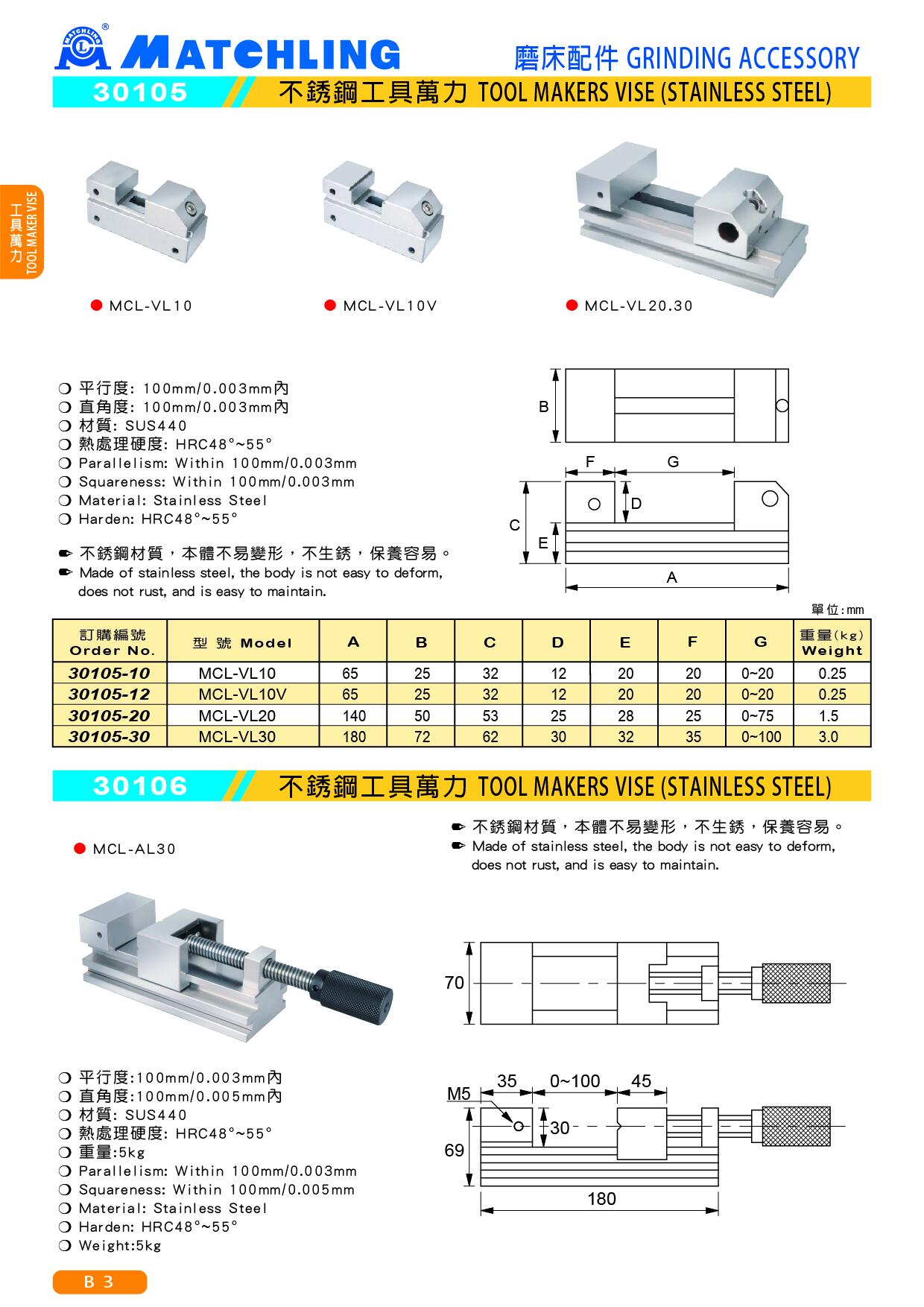

30105 TOOL MAKERS VISE (STAINLESS STEEL)
● Super Cold treating the stainless steel material after heat treatment, makes the rustless tools easy to be maintained and preserve lasting precision.
■ Feature:
● Parallelism:Within 100mm/0.003mm
● Squareness:Within 100mm/0.003mm
● Material:Stainless Steel
● Harden:HRC48°~55°
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | Weight (kg) |
| 30105-10 | MCL-VL10 | 65 | 25 | 32 | 12 | 20 | 20 | 0~20 | 0.25 |
| 30105-12 | MCL-VL10V | 65 | 25 | 32 | 12 | 20 | 20 | 0~20 | 0.25 |
| 30105-20 | MCL-VL20 | 140 | 50 | 53 | 25 | 28 | 25 | 0~75 | 1.5 |
| 30105-30 | MCL-VL30 | 180 | 72 | 62 | 30 | 32 | 35 | 0-100 | 3.0 |
