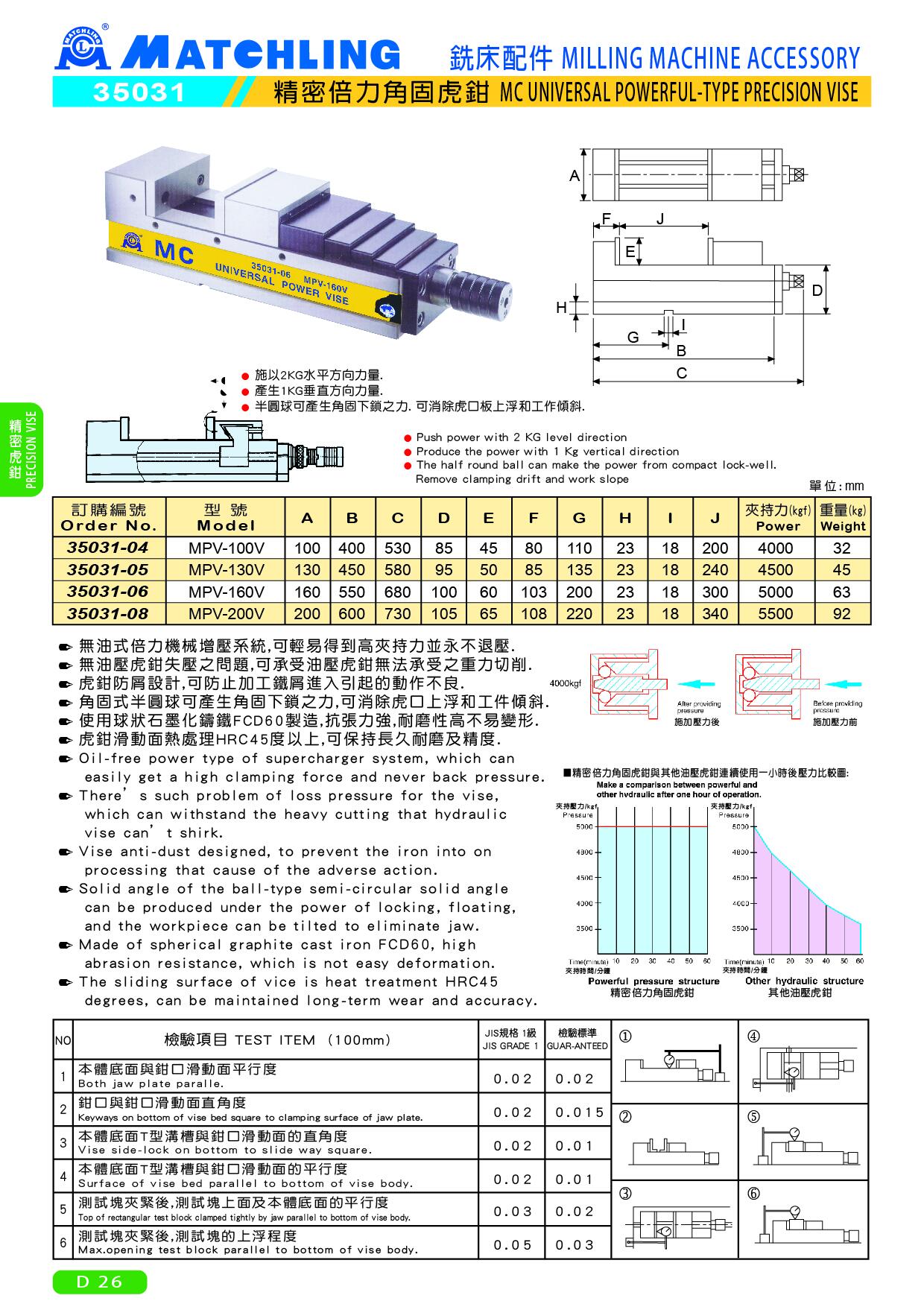

35031 MC UNIVERSAL POWERFUL-TYPE PRECISION VISE


 Oil-free power type of supercharger system, which can easily get a high clamping force and never back pressure.
 There’s such problem of loss pressure for the vise, which can withstand the heavy cutting that hydraulic vise can’t shirk.
 Vise anti-dust designed, to prevent the iron into on processing that cause of the adverse action.
 Solid angle of the ball-type semi-circular solid angle can be produced under the power of locking, floating, and the workpiece can be tilted to eliminate jaw.
 Made of spherical graphite cast iron FCD60, high abrasion resistance, which is not easy deformation.
The sliding surface of vice is heat treatment HRC45 degrees, can be maintained long-term wear and accuracy.






unit:mm

Order No.ModelABCDEFGHIJPower (kgf) Weight (kg)
35031-04MPV-100V1004005308545801102318200400032
35031-05MPV-130V1304505809550851352318240450045
35031-06MPV-160V160550680100601032002318300500063
35031-08MPV-200V200600730105651082202318340550092
