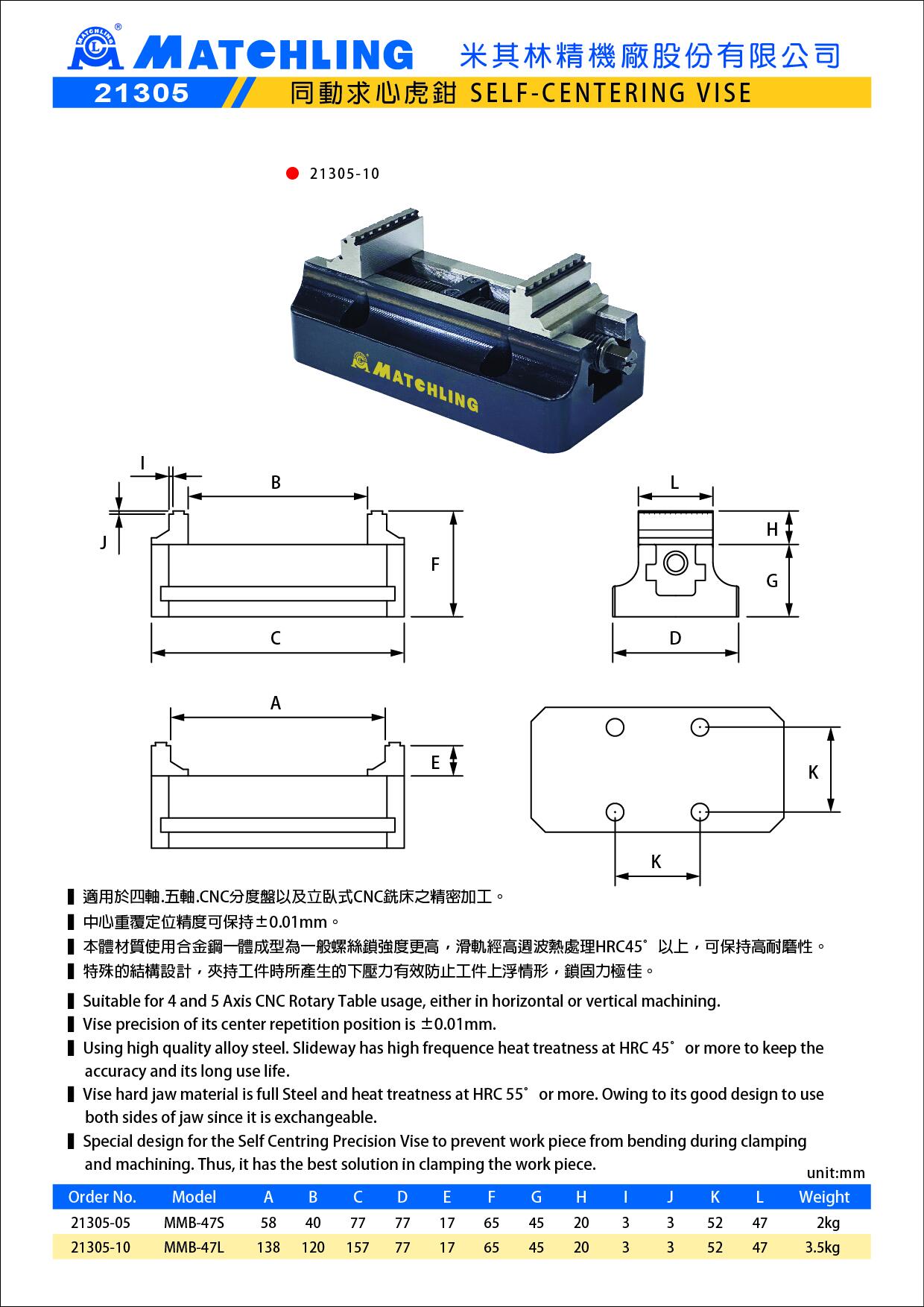

21305 Self-centering Vise
High-precision 5-axis self-centering vise for CNC machining, ±0.01 mm accuracy, HRC 45+ slideways, HRC 55+ hard jaws, prevents workpiece bending.
- ▍Suitable for 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining.
- ▍Vise precision of its center repetition position is ±0.01mm.
- ▍Using high-quality alloy steel. Slideway has high frequency heat treatment at HRC 45°or more to keep the accuracy and its long use life.
- ▍Vise hard jaw material is full Steel and heat-treated at HRC 55°or more. Owing to its good design, it can be used on both sides of the jaw since it is exchangeable.
- ▍Special design for the Self-Centring Precision Vise to prevent the workpiece from bending during clamping and machining. Thus, it has the best solution for clamping the workpiece.
| Order No. | Model | A | B | C | D | E | F | G | H | I | J | K | L | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21305-05 | MMB-47S | 58 | 40 | 77 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 57 | 2 |
| 21305-10 | MMB-47L | 138 | 120 | 157 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 47 | 3.5 |
UNIT : MM
