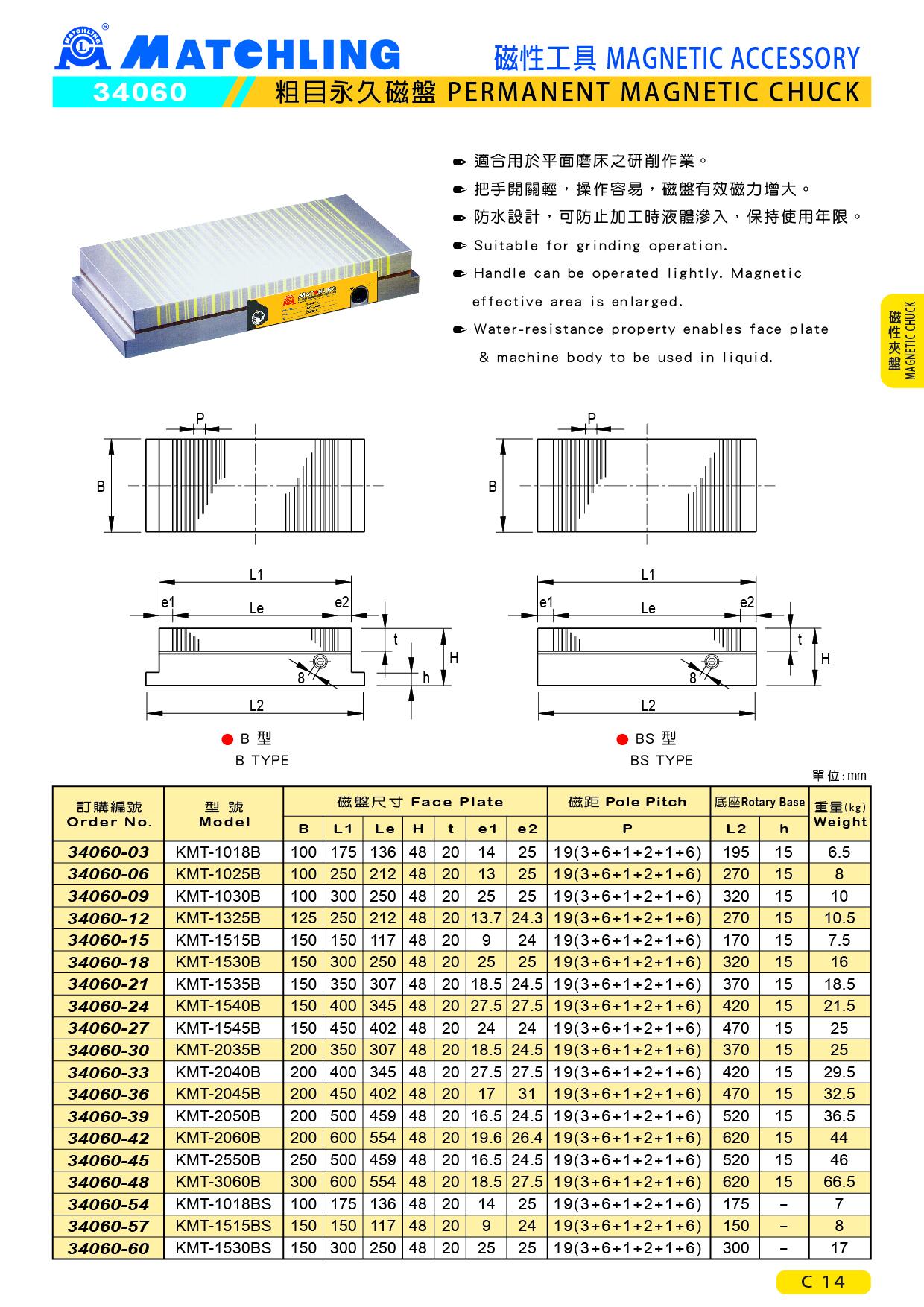

34060 PERMANENT MAGNETIC CHUCK

Description
Specifications

● Suitable for grinding operation.
● Handle can be operated lightly. Magnetic effective area is enlarged.
● Water-resistance property enables face plate & machine body to be used in liquid.

unit：mm

Order No.	Model	Face Plate							Pole Pitch	Rotary Base		Weight (kg)
Order No.	Model	B	L1	Le	H	t	e1	e2	P	L2	h	Weight (kg)
34060-03	KMT-1018B	100	175	136	48	20	14	25	19(3 + 6 + 1+2 + 1+6)	195	15	6.5
34060-06	KMT-1025B	100	250	212	48	20	13	25	19(3 + 6 + 1+2 + 1+6)	270	15	8
34060-09	KMT-1030B	100	300	250	48	20	25	25	19(3 + 6 + 1+2 + 1+6)	320	15	10
34060-12	KMT-1325B	125	250	212	48	20	13.7	24.3	19(3 + 6 + 1+2 + 1+6)	270	15	10.5
34060-15	KMT-1515B	150	150	117	48	20	9	24	19(3 + 6 + 1+2 + 1+6)	170	15	7.5
34060-18	KMT-1530B	150	300	250	48	20	25	25	19(3 + 6 + 1+2 + 1+6)	320	15	16
34060-21	KMT-1535B	150	350	307	48	20	18.5	24.5	19(3 + 6 + 1+2 + 1+6)	370	15	18.5
34060-24	KMT-1540B	150	400	345	48	20	27.5	27.5	19(3 + 6 + 1+2 + 1+6)	420	15	21.5
34060-27	KMT-1545B	150	450	402	48	20	24	24	19(3 + 6 + 1+2 + 1+6)	470	15	25
34060-30	KMT-2035B	200	350	307	48	20	18.5	24.5	19(3 + 6 + 1+2 + 1+6)	370	15	25
34060-33	KMT-2040B	200	400	345	48	20	27.5	27.5	19(3 + 6 + 1+2 + 1+6)	420	15	29.5
34060-36	KMT-2045B	200	450	402	48	20	17	31	19(3 + 6 + 1+2 + 1+6)	470	15	32.5
34060-39	KMT-2050B	200	500	459	48	20	16.5	24.5	19(3 + 6 + 1+2 + 1+6)	520	15	36.5
34060-42	KMT-2060B	200	600	554	48	20	19.6	26.4	19(3 + 6 + 1+2 + 1+6)	620	15	44
34060-45	KMT-2550B	250	500	459	48	20	16.5	24.5	19(3 + 6 + 1+2 + 1+6)	520	15	46
34060-48	KMT-3060B	300	600	554	48	20	18.5	27.5	19(3 + 6 + 1+2 + 1+6)	620	15	66.5
34060-54	KMT-1018BS	100	175	136	48	20	14	25	19(3 + 6 + 1+2 + 1+6)	175	-	7
34060-57	KMT-1515BS	150	150	117	48	20	9	24	19(3 + 6 + 1+2 + 1+6)	150	-	8
34060-60	KMT-1530BS	150	300	250	48	20	25	25	19(3 + 6 + 1+2 + 1+6)	300	-	17
