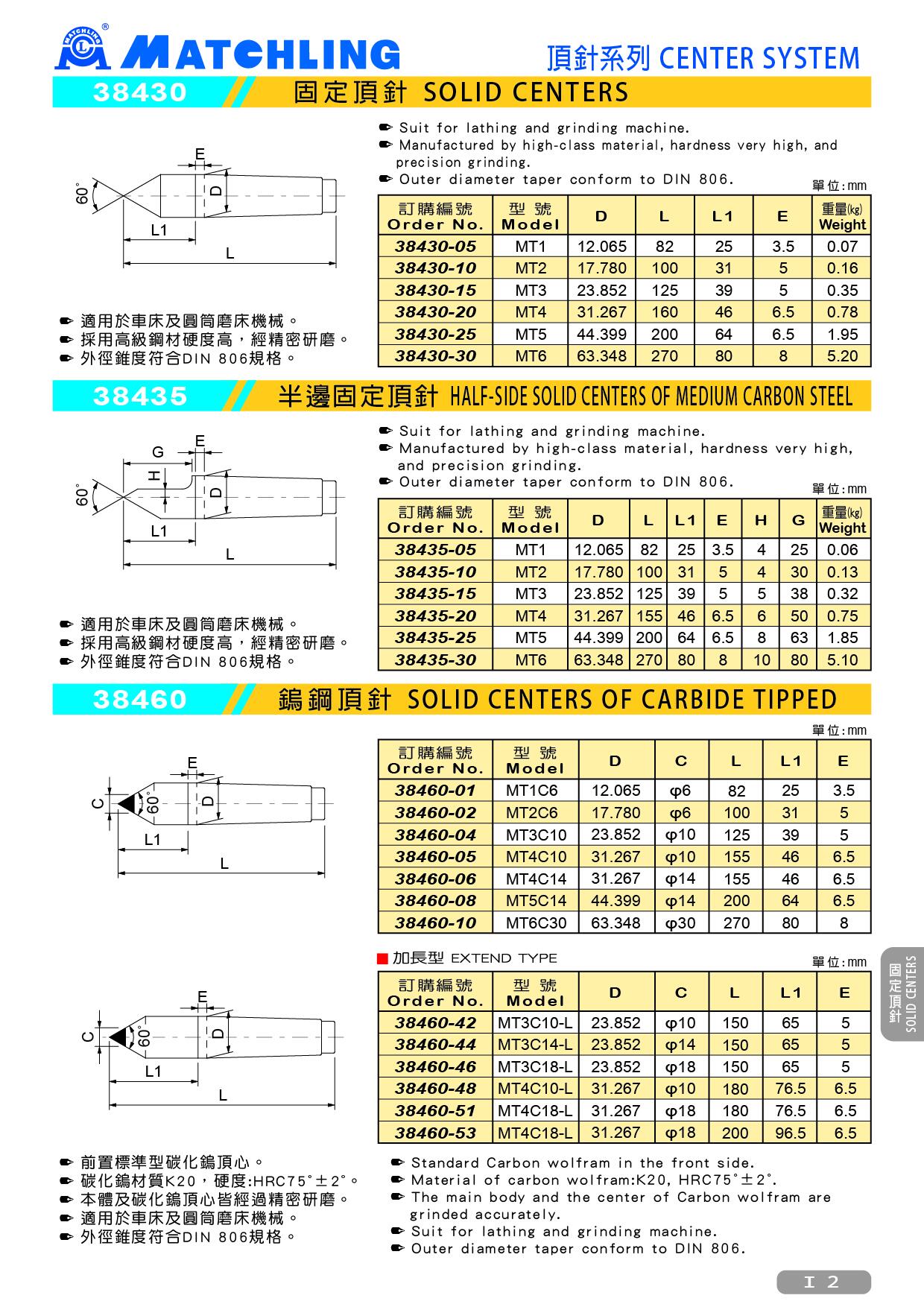

38460 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Suit for lathing and grinding machine.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | D | C | L | L1 | E |
|---|---|---|---|---|---|---|
| 38460-01 | MT1C6 | 12.065 | φ6 | 82 | 25 | 3.5 |
| 38460-02 | MT2C6 | 17.780 | φ6 | 100 | 31 | 5 |
| 38460-04 | MT3C10 | 23.852 | φ10 | 125 | 39 | 5 |
| 38460-05 | MT4C10 | 31.267 | φ10 | 155 | 46 | 6.5 |
| 38460-06 | MT4C14 | 31.267 | φ14 | 155 | 46 | 6.5 |
| 38460-08 | MT5C14 | 44.399 | φ14 | 200 | 64 | 6.5 |
| 38460-10 | MT6C30 | 63.348 | φ30 | 270 | 80 | 8 |
█ EXTEND TYPE unit:mm
| Order No. | Model | D | C | L | L1 | E |
|---|---|---|---|---|---|---|
| 38460-42 | MT3C10-L | 23.852 | φ10 | 150 | 65 | 5 |
| 38460-44 | MT3C14-L | 23.852 | φ14 | 150 | 65 | 5 |
| 38460-46 | MT3C18-L | 23.852 | φ18 | 150 | 65 | 5 |
| 38460-48 | MT4C10-L | 31.267 | φ10 | 180 | 76.5 | 6.5 |
| 38460-51 | MT4C18-L | 31.267 | φ18 | 180 | 76.5 | 6.5 |
| 38460-53 | MT4C18-L | 31.267 | φ18 | 200 | 96.5 | 6.5 |
