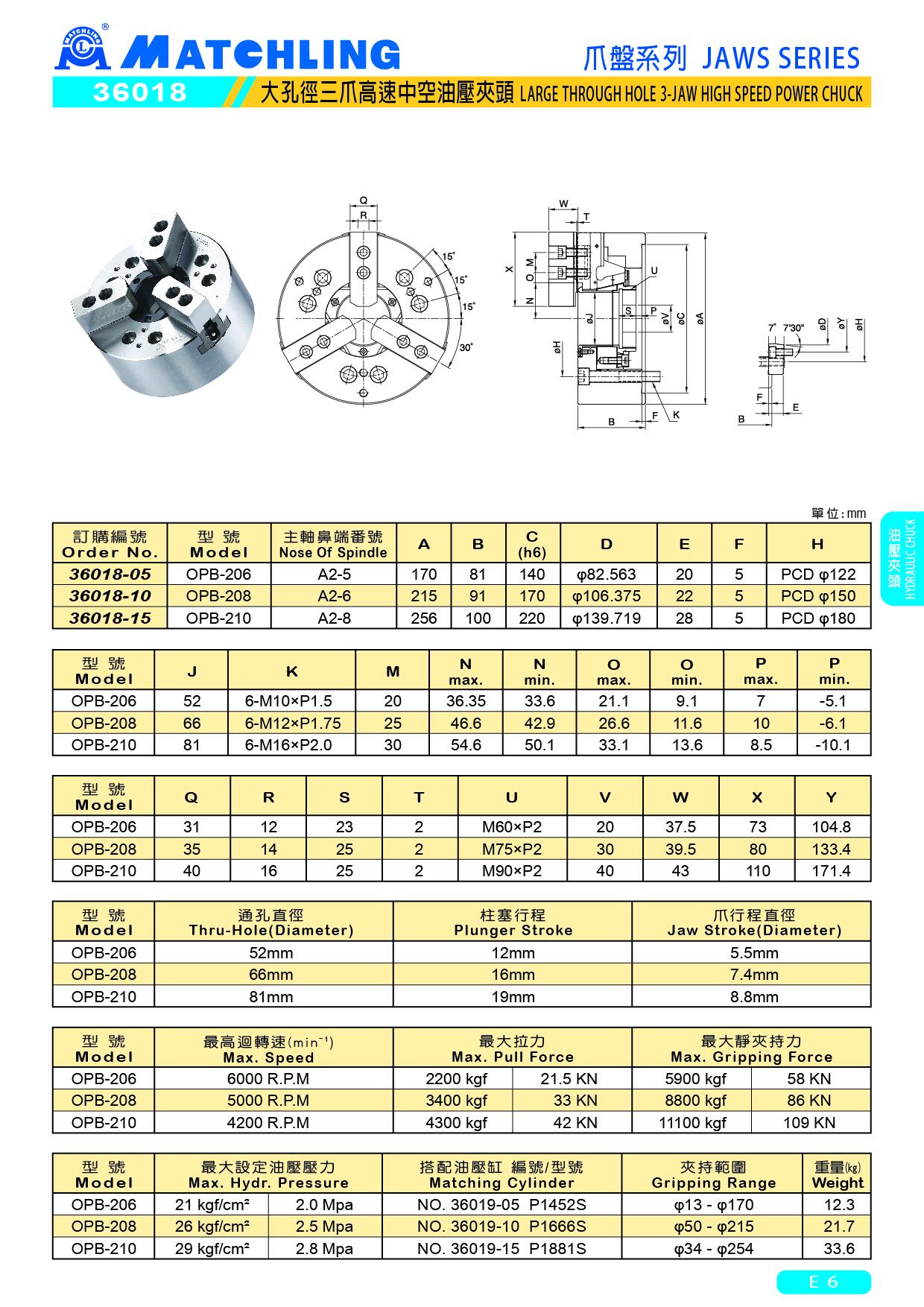

36018 LARGE THROUGH HOLE 3-JAW HIGH SPEED POWER CHUCK
unit：mm
| Order No. | Model | Nose Of Spindle | A | B | C (h6) | D | E | F | H |
| 36018-05 | OPB-206 | A2-5 | 170 | 81 | 140 | φ82.563 | 20 | 5 | PCD φ122 |
| 36018-10 | OPB-208 | A2-6 | 215 | 91 | 170 | φ106.375 | 22 | 5 | PCD φ150 |
| 36018-15 | OPB-210 | A2-8 | 256 | 100 | 220 | φ139.719 | 28 | 5 | PCD φ180 |
| Model | J | K | M | N max. | N min. | O max. | O min. | P max. | P min. |
| OPB-206 | 52 | 6-M10*P1.5 | 20 | 36.35 | 33.6 | 21.1 | 9.1 | 7 | -5.1 |
| OPB-208 | 66 | 6-M12*P1.75 | 25 | 46.6 | 42.9 | 26.6 | 11.6 | 10 | -6.1 |
| OPB-210 | 81 | 6-M16*P2.0 | 30 | 54.6 | 50.1 | 33.1 | 13.6 | 8.5 | -10.1 |
| Model | Q | R | S | T | U | V | W | X | Y |
| OPB-206 | 31 | 12 | 23 | 2 | M60xP2 | 20 | 37.5 | 73 | 104.8 |
| OPB-208 | 35 | 14 | 25 | 2 | M75xP2 | 30 | 39.5 | 80 | 133.4 |
| OPB-210 | 40 | 16 | 25 | 2 | M90xP2 | 40 | 43 | 110 | 171.4 |
| Model | Th ru-Hole( Diameter) | Plunger Stroke | Jaw Stroke(Diameter) |
| OPB-206 | 52mm | 12mm | 5.5mm |
| OPB-208 | 66mm | 16mm | 7.4mm |
| OPB-210 | 81mm | 19mm | 8.8mm |
| Model | Max. Speed (min-1) | Max. Pull Force | Max. Gripping Force | ||
| OPB-206 | 6000R.P.M | 2200 kgf | 21.5 KN | 5900 kgf | 58 KN |
| OPB-208 | 5000R.P.M | 3400 kgf | 33 KN | 8800 kgf | 86 KN |
| OPB-210 | 4200 R.P.M | 4300 kgf | 42 KN | 11100 kgf | 109 KN |
| Model | Max. Hydr. Pressure | Matching Cylinder | Gripping Range | Weight (kg) | |
| OPB-206 | 21 kgf/cm² | 2.0 Mpa | NO. 36019-05 P1452S | φ13-φ170 | 12.3 |
| OPB-208 | 26 kgf/cm² | 2.5 Mpa | NO. 36019-10 P1666S | φ50-φ215 | 21.7 |
| OPB-210 | 29 kgf/cm² | 2.8 Mpa | NO. 36019-15 P1881S | φ34-φ254 | 33.6 |
