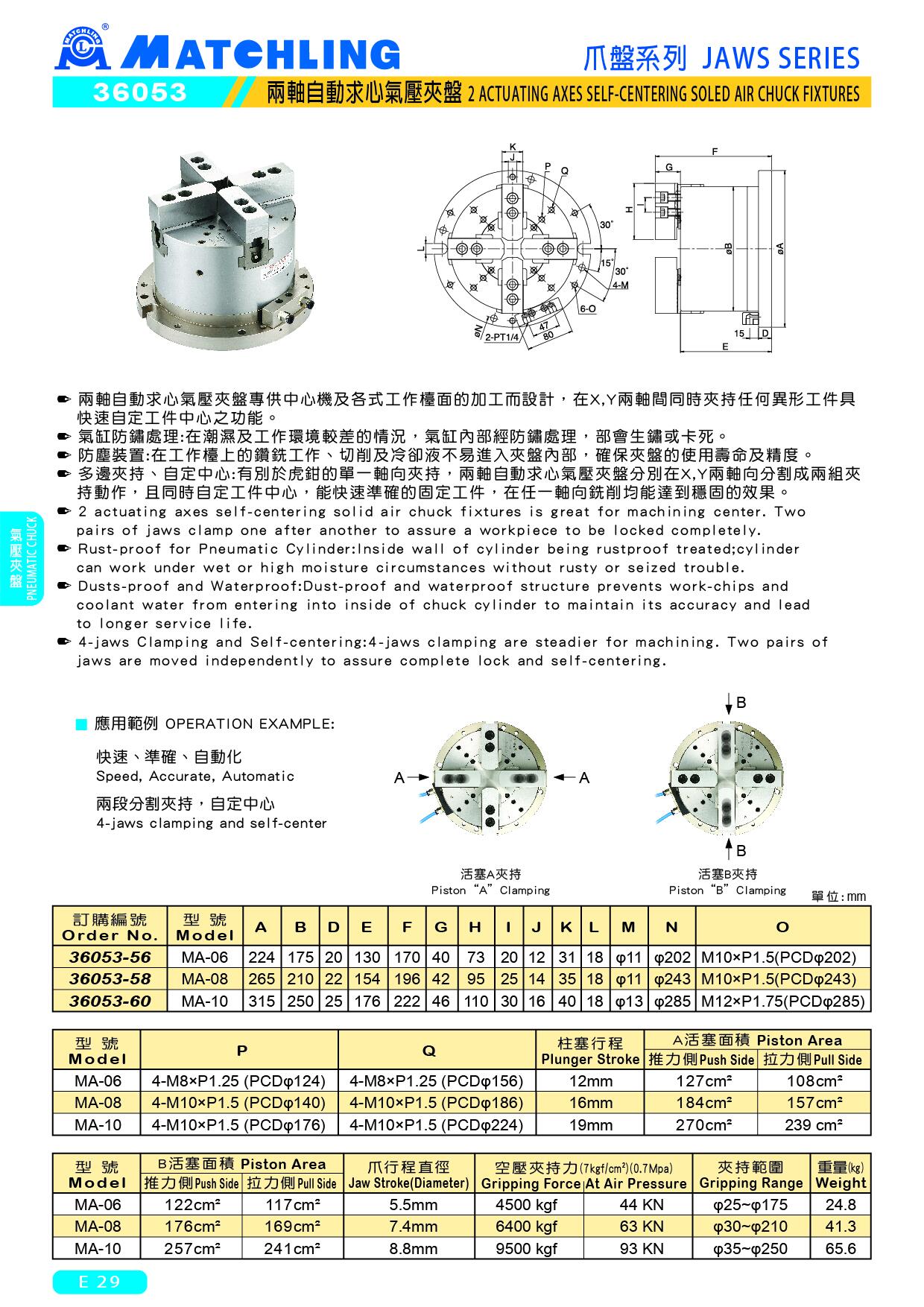

36053 2 ACTUATING AXES SELF-CENTERING SOLED AIR CHUCK FIXTURES
● 2 actuating axes self-centering solid air chuck fixtures is great for machining center. Two pairs of jaws clamp one after another to assure a workpiece to be locked completely.
● Rust-proof for Pneumatic Cylinder:Inside wall of cylinder being rustproof treated;cylinder can work under wet or high moisture circumstances without rusty or seized trouble.
● Dusts-proof and Waterproof:Dust-proof and waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy and lead to longer service life.
● 4-jaws Clamping and Self-centering:4-jaws clamping are steadier for machining. Two pairs of jaws are moved independently to assure complete lock and self-centering.
unit：mm
| Order No. | Model | A | B | D | E | F | G | H | I | J | K | L | M | N | O | ||||
| 36053-56 | MA-06 | 224 | 175 | 20 | 130 | 170 | 40 | 73 | 20 | 12 | 31 | 18 | φ11 | φ202 | M10xP1.5（PCD（φ202） | ||||
| 36053-58 | MA-08 | 265 | 210 | 22 | 154 | 196 | 42 | 95 | 25 | 14 | 35 | 18 | φ11 | φ243 | M10xP1.5（PCD（φ243） | ||||
| 36053-60 | MA-10 | 315 | 250 | 25 | 176 | 222 | 46 | 110 | 30 | 16 | 40 | 18 | φ13 | φ285 | M12xP1.75（PCD(φ285） | ||||
| Model | P | Q | Plunger Stroke | A Piston Area | |
| Push Side | Pull Side | ||||
| MA-06 | 4-M8xP1.25 （PCDφ124） | 4-M8xP1.25（PCDφ156） | 12mm | 127cm² | 108cm² |
| MA-08 | 4-M10xP1.5（PCDφ140） | 4-M10xP1.5（PCDφ186） | 16mm | 184cm² | 157cm² |
| MA-10 | 4-M10xP1.5 （PCDφ176） | 4-M10xP1.5 （PCDφ224） | 19mm | 270cm² | 239cm² |
| Model | B Piston Area | Jaw Stroke | Gripping Force At Air Pressure (7kgf/cm2)(0.7Mpa) | Gripping Range | Weight (kg) | ||
| Push Side | Pull Side | ||||||
| MA-06 | 122cm² | 117cm² | 5.5mm | 4500 kgf | 44 KN | φ25~φ175 | 24.8 |
| MA-08 | 176cm² | 169cm² | 7.4mm | 6400 kgf | 63 KN | φ30~φ210 | 41.3 |
| MA-10 | 257cm² | 241cm² | 8.8mm | 9500 kgf | 93 KN | φ35~φ250 | 65.6 |
