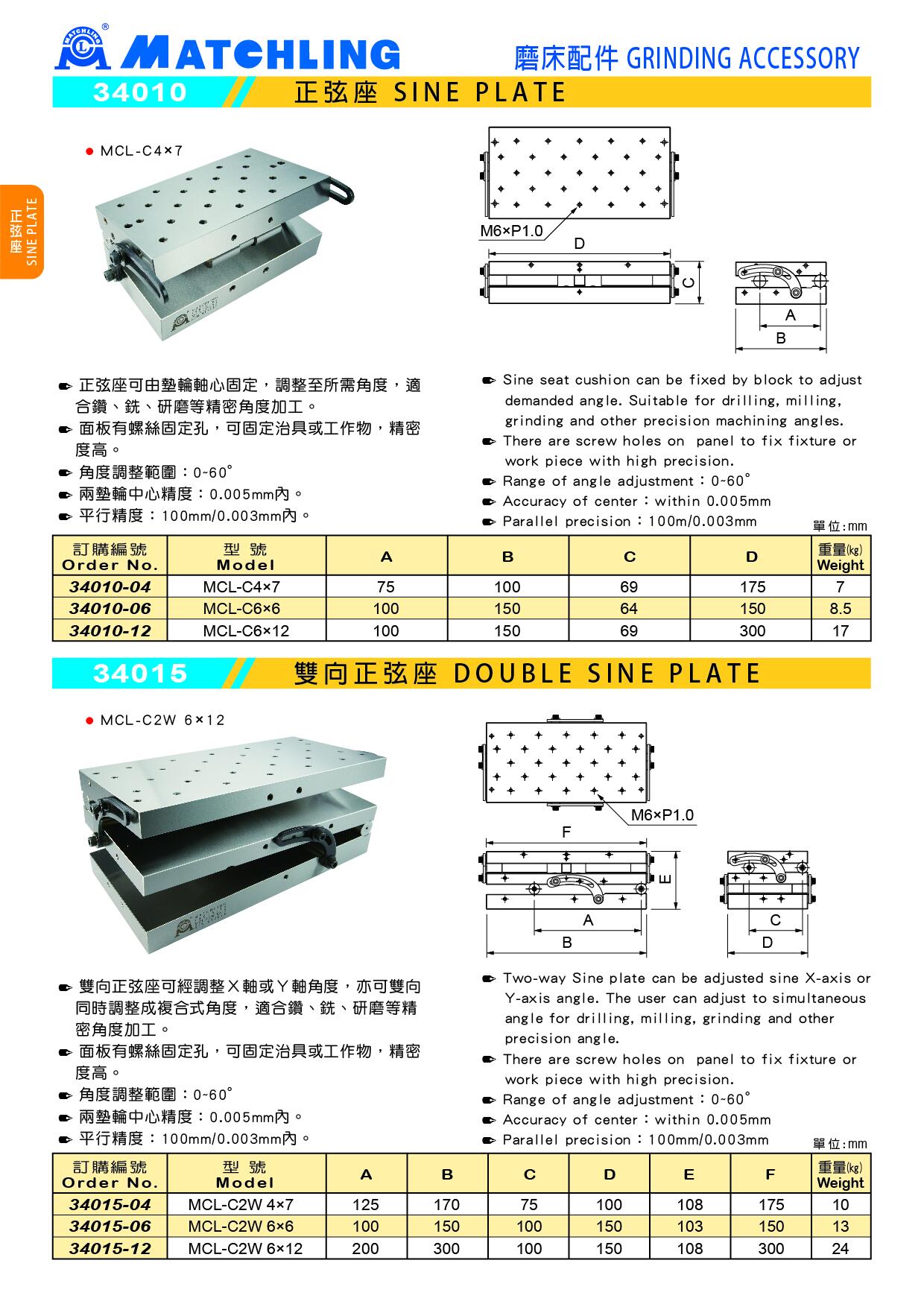

34010 SINE PLATE
● Sine seat cushion can be fixed by block to adjust demanded angle. Suitable for drilling, milling, grinding and other precision machining angles.
● There are screw holes on panel to fix fixture or work piece with high precision.
● Range of angle adjustment：0~60°
● Accuracy of center：within 0.005mm
● Parallel precision：100m/0.003mm
unit：mm
| Order No | Model | A | B | C | D | Weight (kg) |
| 34010-04 | MCL-C4X7 | 75 | 100 | 69 | 175 | 7 |
| 34010-06 | MCL-C6X6 | 100 | 150 | 64 | 150 | 8.5 |
| 34010-12 | MCL-C6X12 | 100 | 150 | 69 | 300 | 17 |
