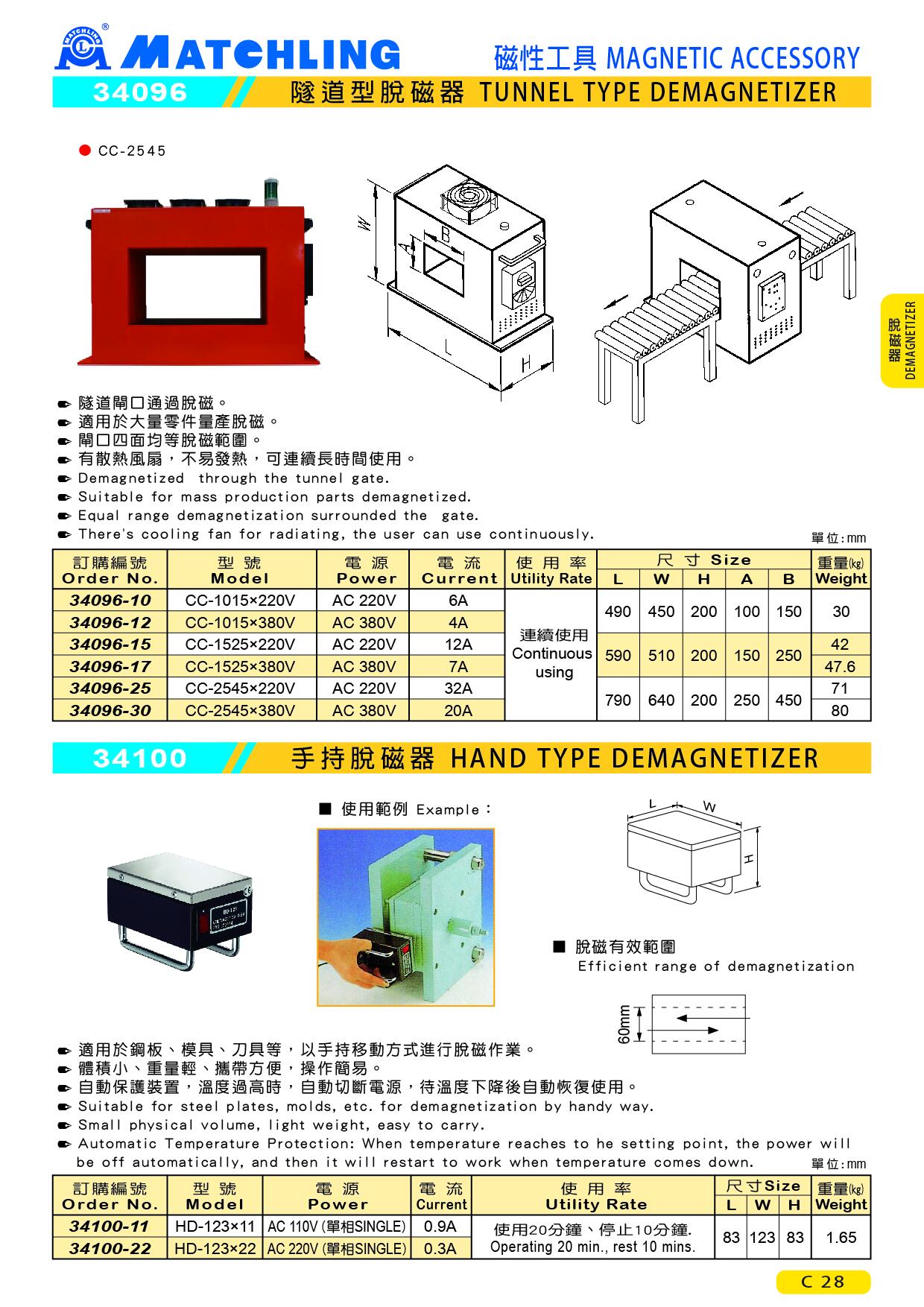

34096 TUNNEL TYPE DEMAGNETIZER
● Demagnetized through the tunnel gate.
● Suitable for mass production parts demagnetized.
● Equal range demagnetization surrounded the gate.
● There's cooling fan for radiating, the user can use continuously.
unit：mm
| Order No. | Model | Current | Utility Rate | Size | Weight (kg) | ||||
| L | W | H | A | B | |||||
| 34096-10 | CC-1015×220V | 6A | Continuous Using | 490 | 450 | 200 | 100 | 150 | 30 |
| 34096-12 | CC-1015×380V | 4A | 30 | ||||||
| 34096-15 | CC-1525×220V | 12A | 590 | 510 | 200 | 150 | 250 | 42 | |
| 34096-17 | CC-1525×380V | 7A | 47.6 | ||||||
| 34096-25 | CC-2545×220V | 32A | 790 | 640 | 200 | 250 | 450 | 71 | |
| 34096-30 | CC-2545×380V | 20A | 80 | ||||||
