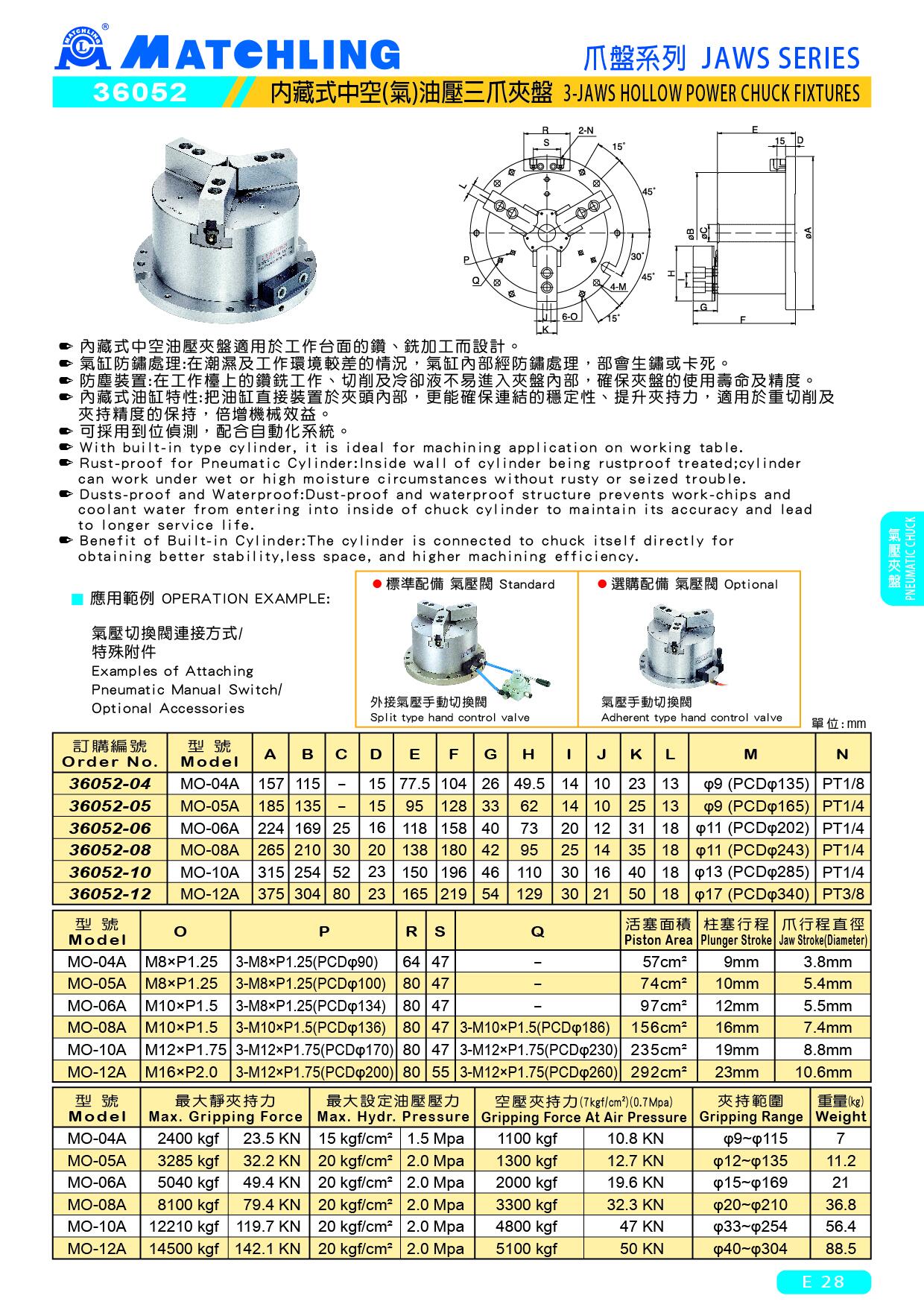

36052 3-JAWS HOLLOW POWER CHUCK FIXTURES
● With built-in type cylinder, it is ideal for machining application on working table.
● Rust-proof for Pneumatic Cylinder:Inside wall of cylinder being rustproof treated;cylinder can work under wet or high moisture circumstances without rusty or seized trouble.
● Dusts-proof and Waterproof:Dust-proof and waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy and lead to longer service life.
● Benefit of Built-in Cylinder:The cylinder is connected to chuck itself directly for obtaining better stability,less space, and higher machining efficiency.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | 1 | J | K | L | M | N | ||||||
| 36052-04 | MO-04A | 157 | 115 | - | 15 | 77.5 | 104 | 26 | 49.5 | 14 | 10 | 23 | 13 | φ9 (PCDφ135) | PT1/8 | ||||||
| 36052-05 | MO-05A | 185 | 135 | - | 15 | 95 | 128 | 33 | 62 | 14 | 10 | 25 | 13 | φ9 (PCD φ165) | PT1/4 | ||||||
| 36052-06 | MO-06A | 224 | 169 | 25 | 16 | 118 | 158 | 40 | 73 | 20 | 12 | 31 | 18 | φ11 (PCD φ202) | PT1/4 | ||||||
| 36052-08 | MO-08A | 265 | 210 | 30 | 20 | 138 | 180 | 42 | 95 | 25 | 14 | 35 | 18 | φ11 (PCD φ243) | PT1/4 | ||||||
| 36052-10 | MO-10A | 315 | 254 | 52 | 23 | 150 | 196 | 46 | 110 | 30 | 16 | 40 | 18 | φ13 (PCD φ285) | PT1/4 | ||||||
| 36052-12 | MO-12A | 375 | 304 | 80 | 23 | 165 | 219 | 54 | 129 | 30 | 21 | 50 | 18 | φ17 (PCD φ340) | PT3/8 | ||||||
| Model | O | P | R | S | Q | Piston Area | Plunger Stroke | Jaw Stroke |
| MO-04A | M8xP1.25 | 3-M8xP1.25(PCD φ90) | 64 | 47 | - | 57cm² | 9mm | 3.8mm |
| MO-05A | M8xP1.25 | 3-M8xP1.25(PCDφ100) | 80 | 47 | - | 74 cm² | 10mm | 5.4mm |
| MO-06A | M10xP1.5 | 3-M8xP1.25(PCD φ34) | 80 | 47 | - | 97 cm² | 12mm | 5.5mm |
| MO-08A | M10xP1.5 | 3-M10xP1.5(PCDφ136) | 80 | 47 | 3-M10xP1.5(PCDφ186) | 156cm² | 16mm | 7.4mm |
| MO-10A | M12xP1.75 | 3-M12xP1.75(PCD φ170) | 80 | 47 | 3-M12xP1.75(PCDφ230) | 235cm² | 19mm | 8.8mm |
| MO-12A | M16xP2.0 | 3-M12xP1.75(PCDφ200) | 80 | 55 | 3-M12xP1.75(PCDφ260) | 292cm² | 23mm | 10.6mm |
| Model | Max. Gripping Force | Max. Hydr. Pressure | Gripping Force At Air Pressure (7kgf/cm²)(0.7Mpa) | Gripping Range | Weight (kg) | |||
| MO-04A | 2400 kgf | 23.5 KN | 15 kgf/cm² | 1.5 Mpa | 1100 kgf | 10.8 KN | φ9~ φ115 | 7 |
| MO-05A | 3285 kgf | 32.2 KN | 20 kgf/cm² | 2.0 Mpa | 1300 kgf | 12.7 KN | φ12-φ135 | 11.2 |
| MO-06A | 5040 kgf | 49.4 KN | 20 kgf/cm² | 2.0 Mpa | 2000 kgf | 19.6 KN | φ15~φ169 | 21 |
| MO-08A | 8100 kgf | 79.4 KN | 20 kgf/cm² | 2.0 Mpa | 3300 kgf | 32.3 KN | φ20~ φ210 | 36.8 |
| MO-10A | 12210 kgf | 119.7 KN | 20 kgf/cm² | 2.0 Mpa | 4800 kgf | 47 KN | φ33~φ254 | 56.4 |
| MO-12A | 14500 kgf | 142.1 KN | 20 kgf/cm² | 2.0 Mpa | 5100 kgf | 50 KN | φ40~φ304 | 88.5 |
