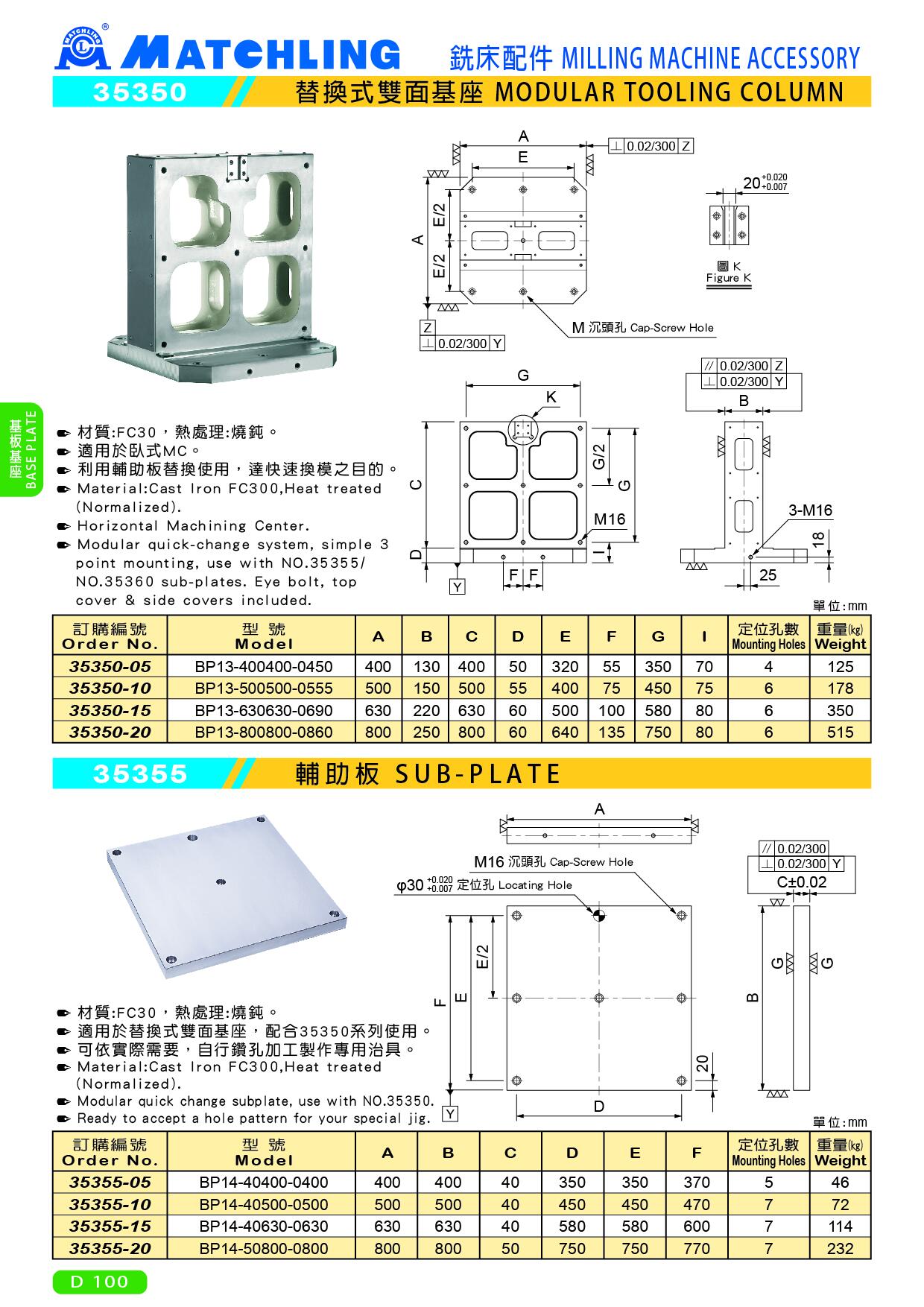

35350 MODULAR TOOLING COLUMN
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Modular quick-change system, simple 3 point mounting, use with NO.35355/NO.35360 sub-plates. Eye bolt, top cover & side covers included.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | I | Mounting Holes | Weight (kg) |
| 35350-05 | BP13-400400-0450 | 400 | 130 | 400 | 50 | 320 | 55 | 350 | 70 | 4 | 125 |
| 35350-10 | BP13-500500-0555 | 500 | 150 | 500 | 55 | 400 | 75 | 450 | 75 | 6 | 178 |
| 35350-15 | BP13-630630-0690 | 630 | 220 | 630 | 60 | 500 | 100 | 580 | 80 | 6 | 350 |
| 35350-20 | BP13-800800-0860 | 800 | 250 | 800 | 60 | 640 | 135 | 750 | 80 | 6 | 515 |
