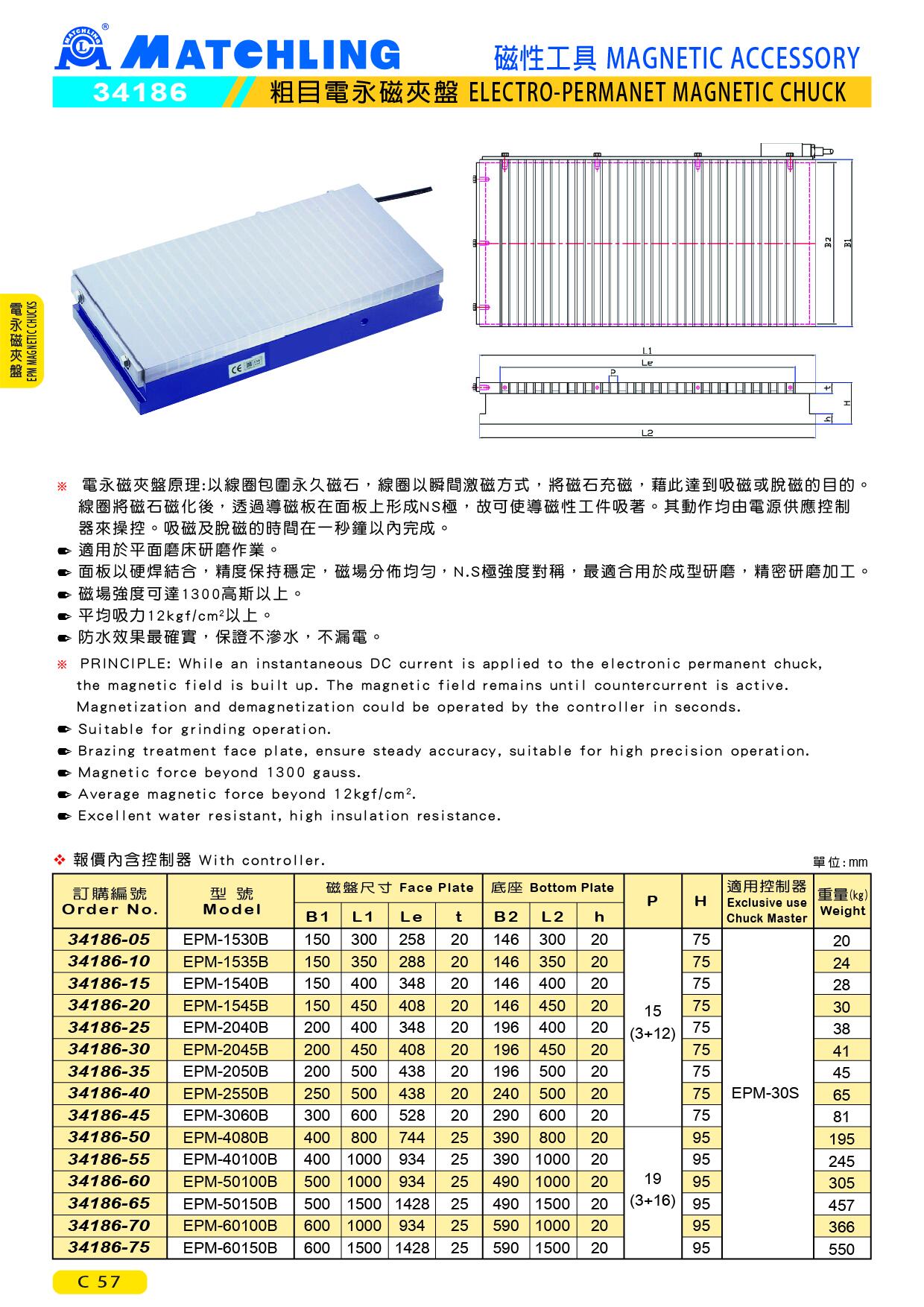

34186 Electro-permanent Magnetic Chuck
※PRINCIPLE: While an instantaneous DC current is applied to the electronic permanent chuck, the magnetic field is built up. The magnetic field remains until countercurrent is active. Magnetization and demagnetization could be operated by the controller in seconds.
●Suitable for grinding operation.
●Brazing treatment face plate, ensure steady accuracy, suitable for high precision operation.
●Magnetic force beyond 1300 gauss.
●Average magnetic force beyond 12kgf/cm².
●Excellent water resistant, high insulation resistance.
unit：mm
| Order No. | Model | Face Plate | Bottom Plate | P | H | Exclusive use Chuck Master | Weight (kg) | |||||
| B1 | L1 | Le | t | B2 | L2 | h | ||||||
| 34186-05 | EPM-1530B | 150 | 300 | 258 | 20 | 146 | 300 | 20 | 15 (3+2) | 75 | EPM-30S | 20 |
| 34186-10 | EPM-1535B | 150 | 350 | 288 | 20 | 146 | 350 | 20 | 75 | 24 | ||
| 34186-15 | EPM-1540B | 150 | 400 | 348 | 20 | 146 | 400 | 20 | 75 | 28 | ||
| 34186-20 | EPM-1545B | 150 | 450 | 408 | 20 | 146 | 450 | 20 | 75 | 30 | ||
| 34186-25 | EPM-2040B | 200 | 400 | 348 | 20 | 196 | 400 | 20 | 75 | 38 | ||
| 34186-30 | EPM-2045B | 200 | 450 | 408 | 20 | 196 | 450 | 20 | 75 | 41 | ||
| 34186-35 | EPM-2050B | 200 | 500 | 438 | 20 | 196 | 500 | 20 | 75 | 45 | ||
| 34186-40 | EPM-2550B | 250 | 500 | 438 | 20 | 240 | 500 | 20 | 75 | 65 | ||
| 34186-45 | EPM-3060B | 300 | 600 | 528 | 20 | 290 | 600 | 20 | 75 | 81 | ||
| 34186-50 | EPM-4080B | 400 | 800 | 744 | 25 | 390 | 800 | 20 | 19 (3+16) | 95 | 195 | |
| 34186-55 | EPM-40100B | 400 | 1000 | 934 | 25 | 390 | 1000 | 20 | 95 | 245 | ||
| 34186-60 | EPM-50100B | 500 | 1000 | 934 | 25 | 490 | 1000 | 20 | 95 | 305 | ||
| 34186-65 | EPM-50150B | 500 | 1500 | 1428 | 25 | 490 | 1500 | 20 | 95 | 457 | ||
| 34186-70 | EPM-60100B | 600 | 1000 | 934 | 25 | 590 | 1000 | 20 | 95 | 366 | ||
| 34186-75 | EPM-60150B | 600 | 1500 | 1428 | 25 | 590 | 1500 | 20 | 95 | 550 | ||
