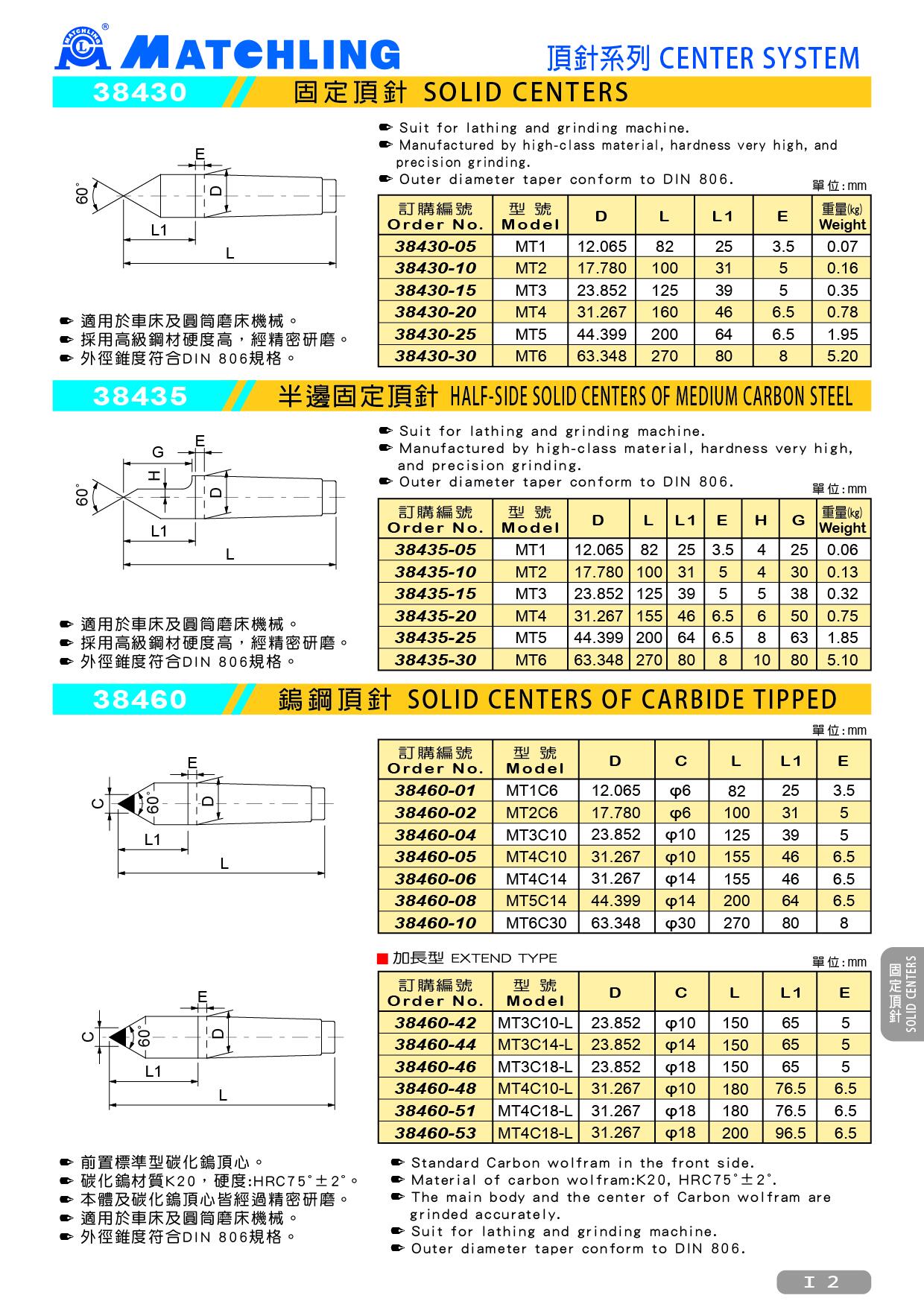

38430 SOLID CENTERS
● Suit for lathing and grinding machine.
● Manufactured by high-class material, hardness very high, and precision grinding.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | D | L | L1 | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 38430-15 | MT3 | 23.852 | 125 | 39 | 5 | 0.35 |
| 38430-25 | MT5 | 44.399 | 200 | 64 | 6.5 | 1.95 |
