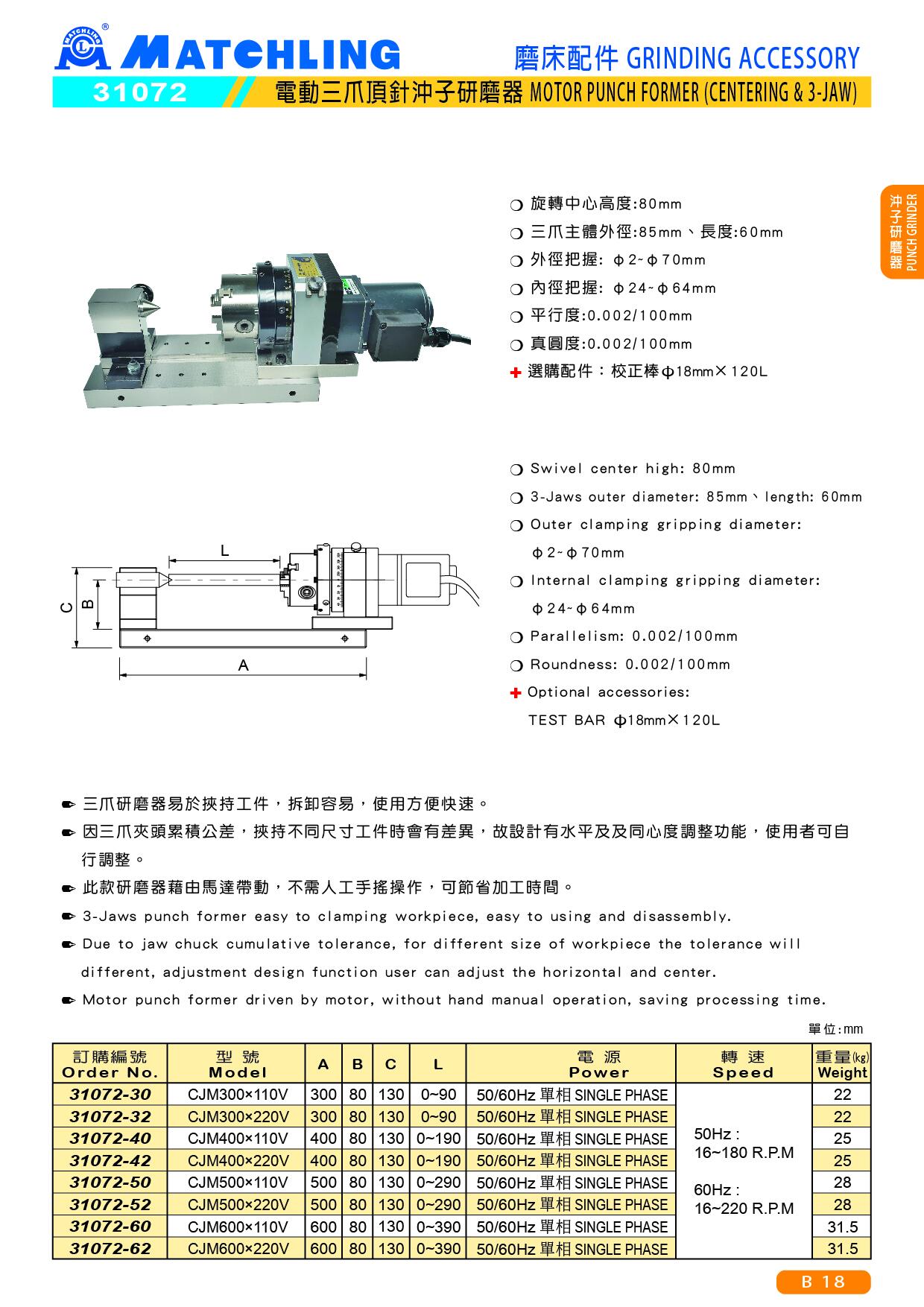

31072 MOTOR PUNCH FORMER (CENTERING & 3-JAW)
● 3-Jaws punch former easy to clamping workpiece, easy to using and disassembly.
● Due to jaw chuck cumulative tolerance, for different size of workpiece the tolerance will different, adjustment design function user can adjust the horizontal and center.
● Motor punch former driven by motor, without hand manual operation, saving processing time.
■Specifications:
● Swivel center high: 80mm
● Indexing Div: 24(Every 15°)±10"
● 3-Jaws outer diameter: 85mm、length: 60mm
●Outer clamping gripping diameter: φ2~φ70mm
● Internal clamping gripping diameter: φ24~φ64mm
● Parallelism: 0.002/100mm
● Roundness: 0.002/100mm
✚ Optional accessories: TEST BAR φ18mm×120L
unit：mm
| Order No. | Model | A | B | C | L | Motor | Speed | Weitht(kg) |
| 31072-30 | CJM300×110V | 300 | 80 | 130 | 0 ~ 90 | 50/60Hz SINGLE PHASE | 50Hz : 16~180 R.P.M 60Hz : 16~220 R.P.M | 22 |
| 31072-32 | CJM300×220V | 300 | 80 | 130 | 0 ~ 90 | 22 | ||
| 31072-40 | CJM400×110V | 400 | 80 | 130 | 0 ~ 190 | 25 | ||
| 31072-42 | CJM400×220V | 400 | 80 | 130 | 0 ~ 190 | 25 | ||
| 31072-50 | CJM500×110V | 500 | 80 | 130 | 0 ~ 290 | 28 | ||
| 31072-52 | CJM500×220V | 500 | 80 | 130 | 0 ~ 290 | 28 | ||
| 31072-60 | CJM600×110V | 600 | 80 | 130 | 0 ~ 390 | 31.5 | ||
| 31072-62 | CJM600×220V | 600 | 80 | 130 | 0 ~ 390 | 31.5 |
