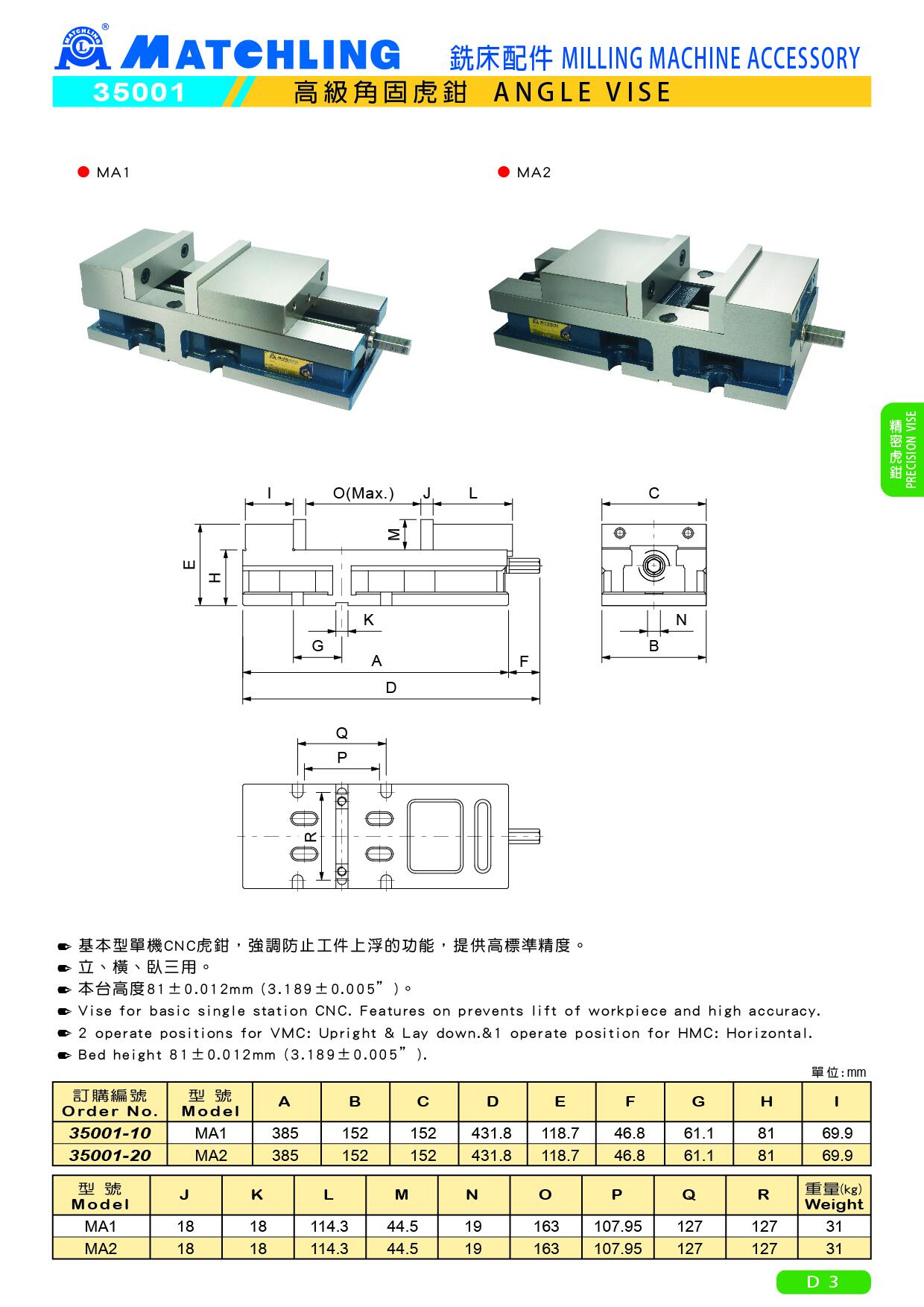

35001 ANGLE VISE
● Vise for basic single station CNC. Features on prevents lift of workpiece and high accuracy.
● 2 operate positions for VMC: Upright & Lay down.&1 operate position for HMC: Horizontal.
● Bed height 81±0.012mm (3.189±0.005”).
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | I | ||||||||
| 35001-10 | MA1 | 385 | 152 | 152 | 431.8 | 118.7 | 46.8 | 61.1 | 81 | 69.9 | ||||||||
| 35001-20 | MA2 | 385 | 152 | 152 | 431.8 | 118.7 | 46.8 | 61.1 | 81 | 69.9 | ||||||||
unit：mm
| Model | J | K | L | M | N | O | P | Q | R | Weight (kg) | ||||||||
| MA1 | 18 | 18 | 114.3 | 44.5 | 19 | 163 | 107.95 | 127 | 127 | 31 | ||||||||
| MA2 | 18 | 18 | 114.3 | 44.5 | 19 | 163 | 107.95 | 127 | 127 | 31 | ||||||||
