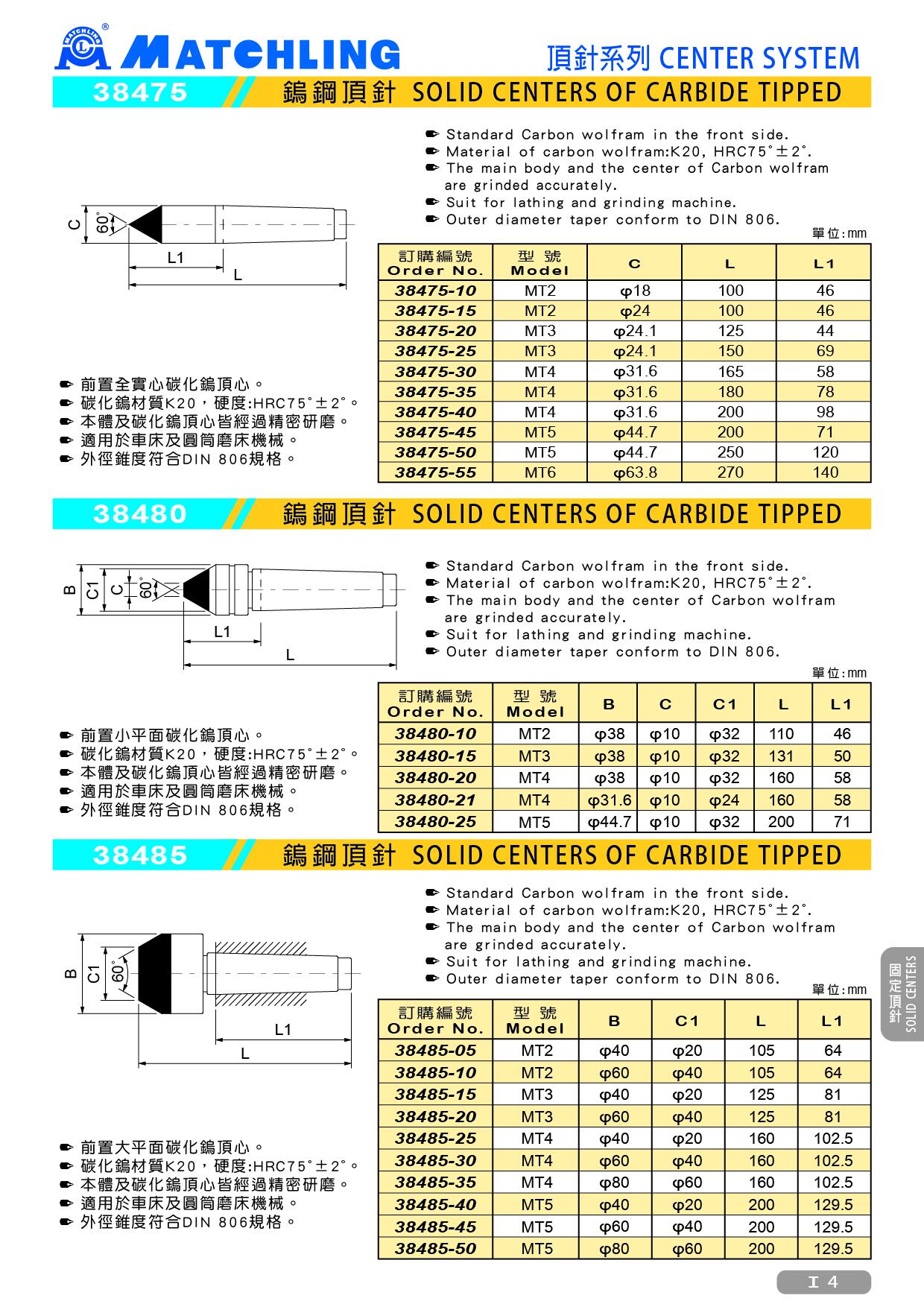

38480 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Suit for lathing and grinding machine.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | B | C | C1 | L | L1 |
| 38480-10 | MT2 | φ38 | φ10 | φ32 | 110 | 46 |
| 38480-15 | MT3 | φ38 | φ10 | φ32 | 131 | 50 |
| 38480-20 | MT4 | φ38 | φ10 | φ32 | 160 | 58 |
| 38480-21 | MT4 | φ31.6 | φ10 | φ32 | 160 | 58 |
| 38480-25 | MT5 | φ44.7 | φ10 | φ32 | 200 | 71 |
