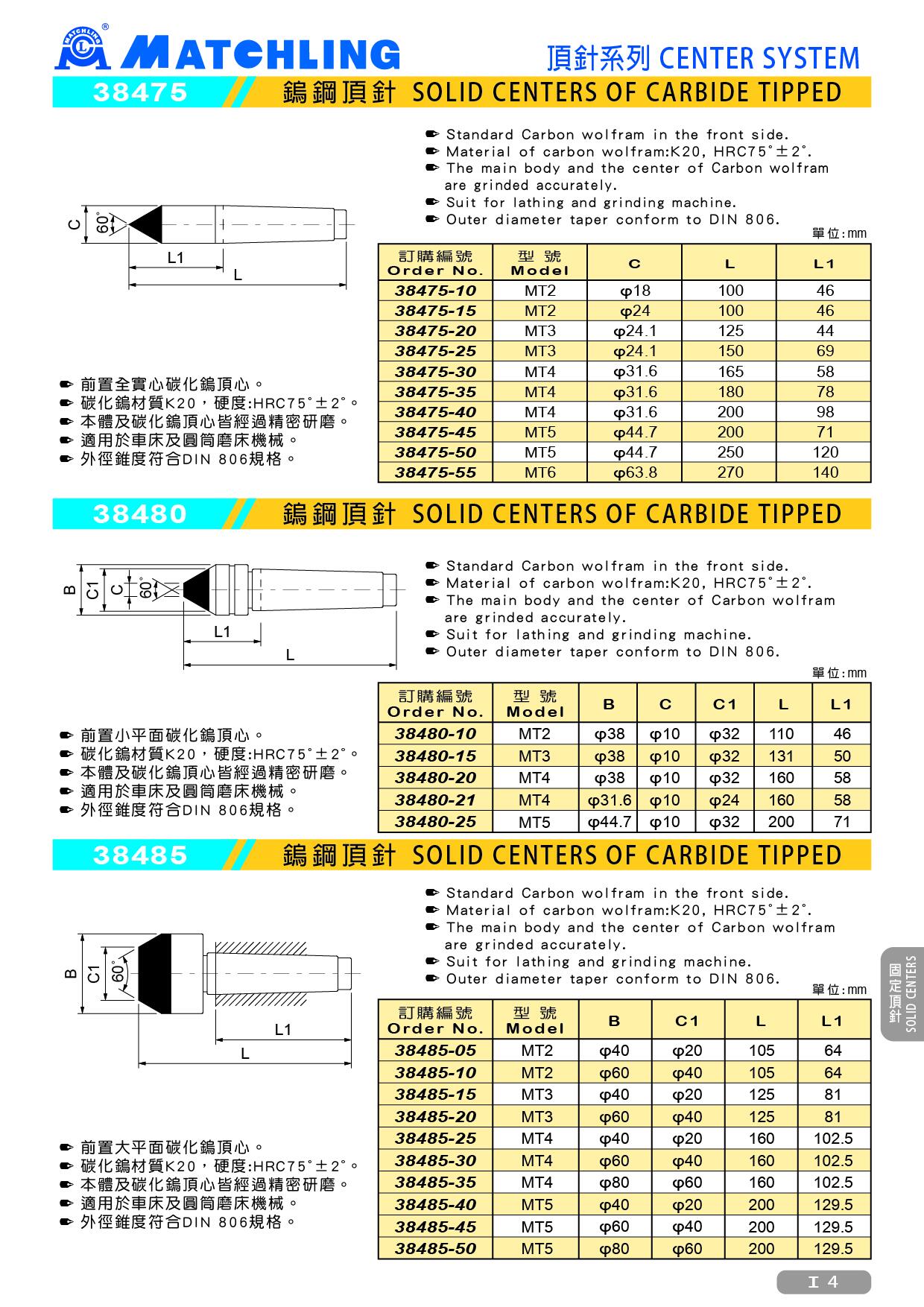

38475 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Suit for lathing and grinding machine.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | C | L | L1 |
| 38475-10 | MT2 | φ18 | 100 | 46 |
| 38475-15 | MT2 | φ24 | 100 | 46 |
| 38475-20 | MT3 | φ24.1 | 125 | 44 |
| 38475-25 | MT3 | φ24.1 | 150 | 69 |
| 38475-30 | MT4 | φ31.6 | 165 | 58 |
| 38475-35 | MT4 | φ31.6 | 180 | 78 |
| 38475-40 | MT4 | φ31.6 | 200 | 98 |
| 38475-45 | MT5 | φ44.7 | 200 | 71 |
| 38475-50 | MT5 | φ44.7 | 250 | 120 |
| 38475-55 | MT6 | φ63.8 | 270 | 140 |
