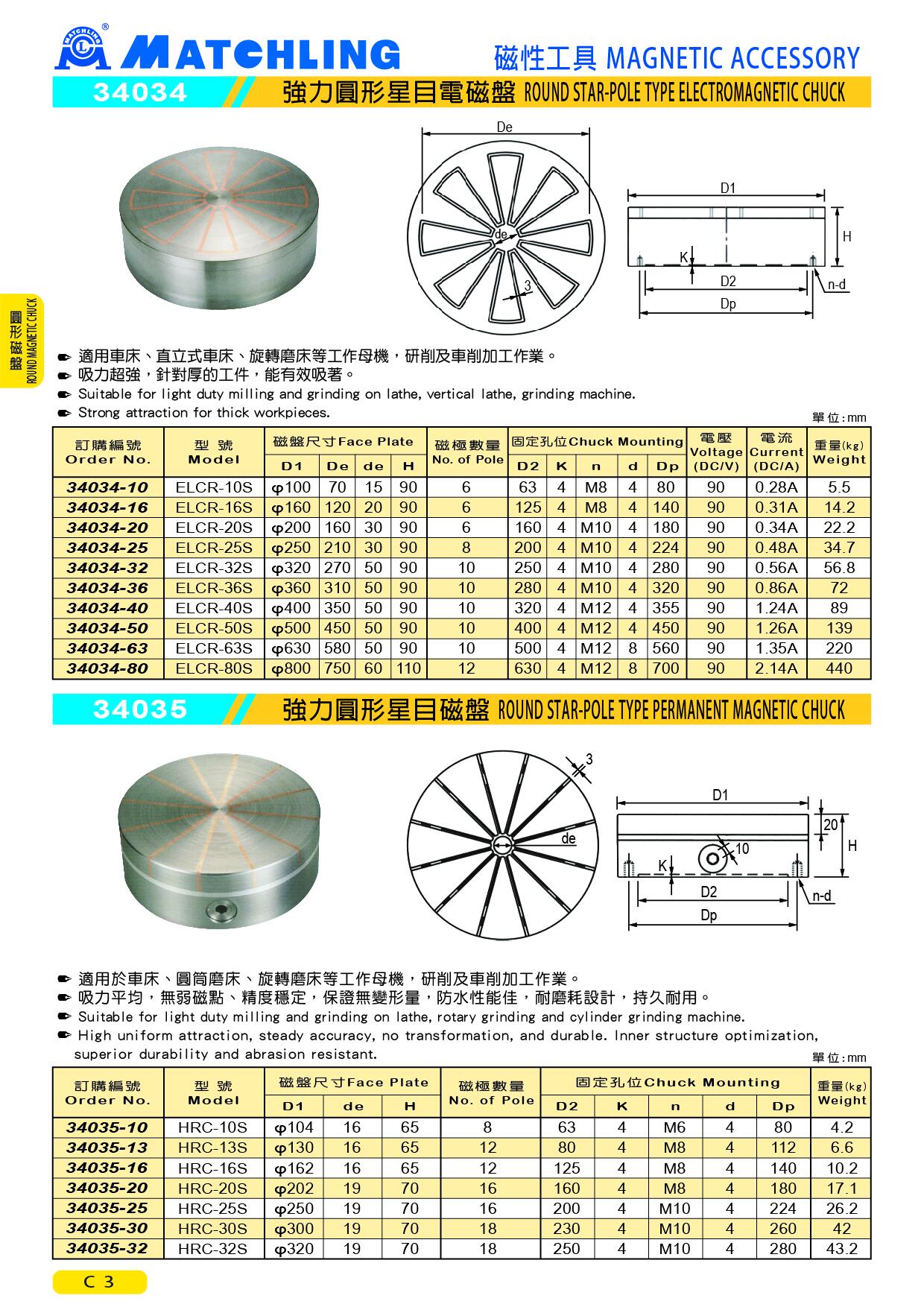

34035 ROUND STAR-POLE TYPE PERMANENT MAGNETIC CHUCK
● Suitable for light duty milling and grinding on lathe, rotary grinding and cylinder grinding machine.
● High uniform attraction, steady accuracy, no transformation, and durable. Inner structure optimization, superior durability and abrasion resistant.
unit：mm
| Order No. | Model | Face Plate | No. of Pole | Chuck Mounting | Weight (kg) | ||||||
| D1 | de | H | D2 | K | n | d | Dp | ||||
| 34035-10 | HRC-10S | ϕ104 | 16 | 66 | 8 | 60 | 3 | M6 | 4 | 80 | 4.2 |
