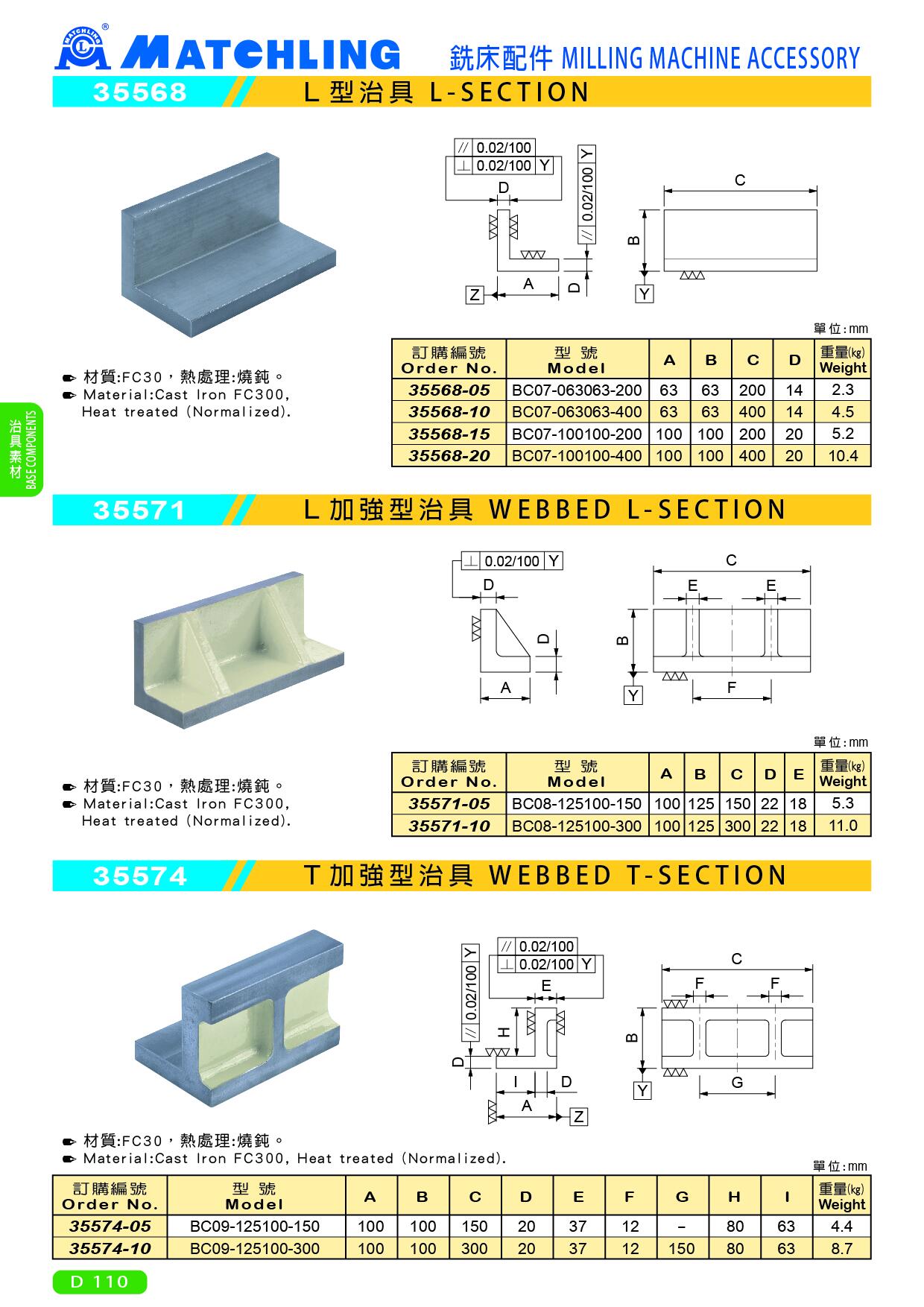

35574 WEBBED T-SECTION

Description
Specifications

● Material:Cast Iron FC300, Heat treated (Normalized).

unit：mm

Order No.	Model	A	B	C	D	E	F	G	H	I	Weight (kg)
35574-05	BC09-125100-150	100	100	150	20	37	12	-	80	63	4.4
35574-10	BC09-125100-300	100	100	300	20	37	12	150	80	63	8.7
