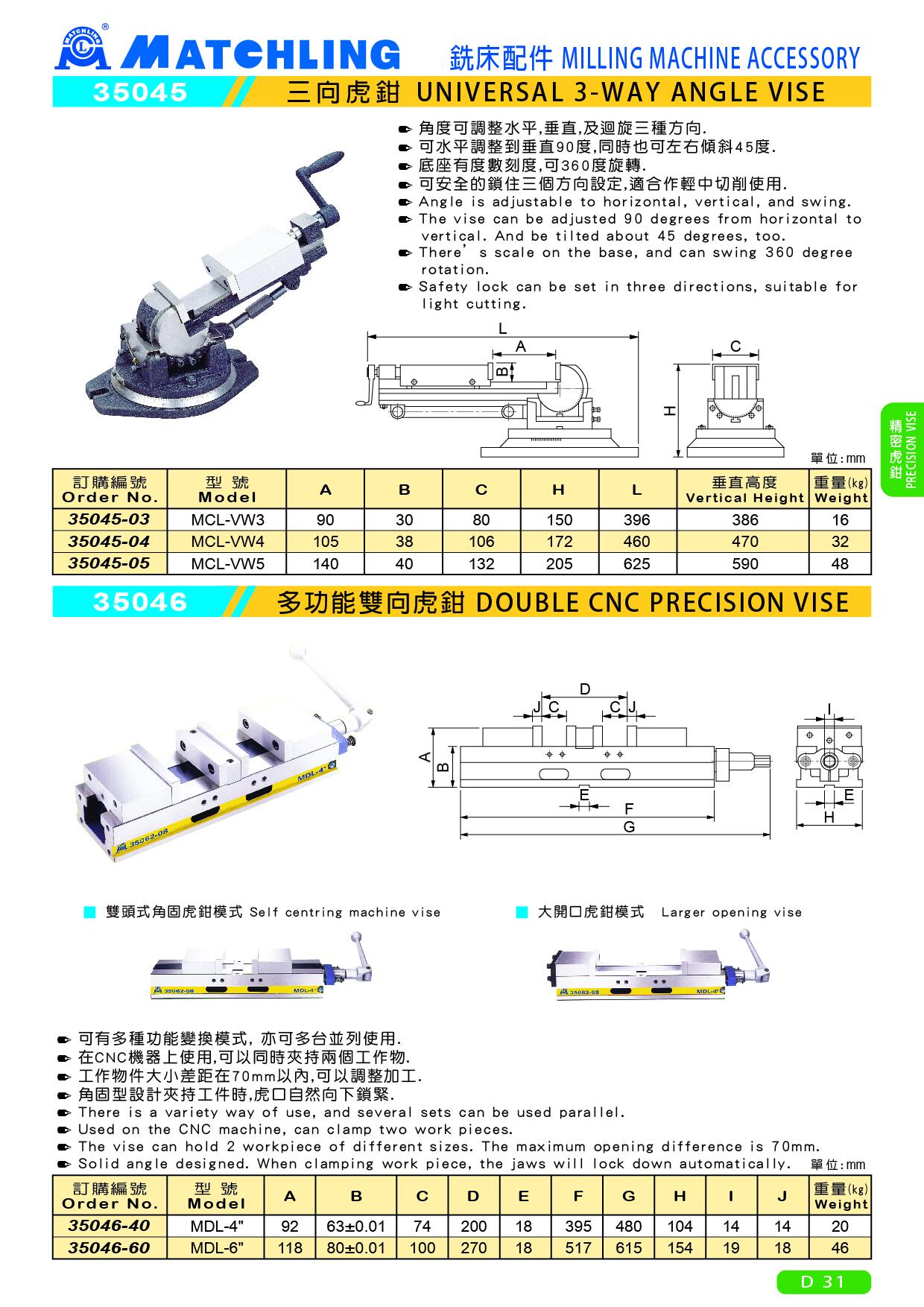

35046 DOUBLE CNC PRECISION VISE
● There is a variety way of use, and several sets can be used parallel.
● Used on the CNC machine, can clamp two work pieces
● Solid angle designed. When clamping work piece, the jaws will lock down automatically.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | 1 | J | Weight (kg) |
| 35046-40 | MDL-4M | 92 | 63±0.01 | 74 | 200 | 18 | 395 | 480 | 104 | 14 | 14 | 20 |
| 35046-60 | MDL-6n | 118 | 80±0.01 | 100 | 270 | 18 | 517 | 615 | 154 | 19 | 18 | 46 |
