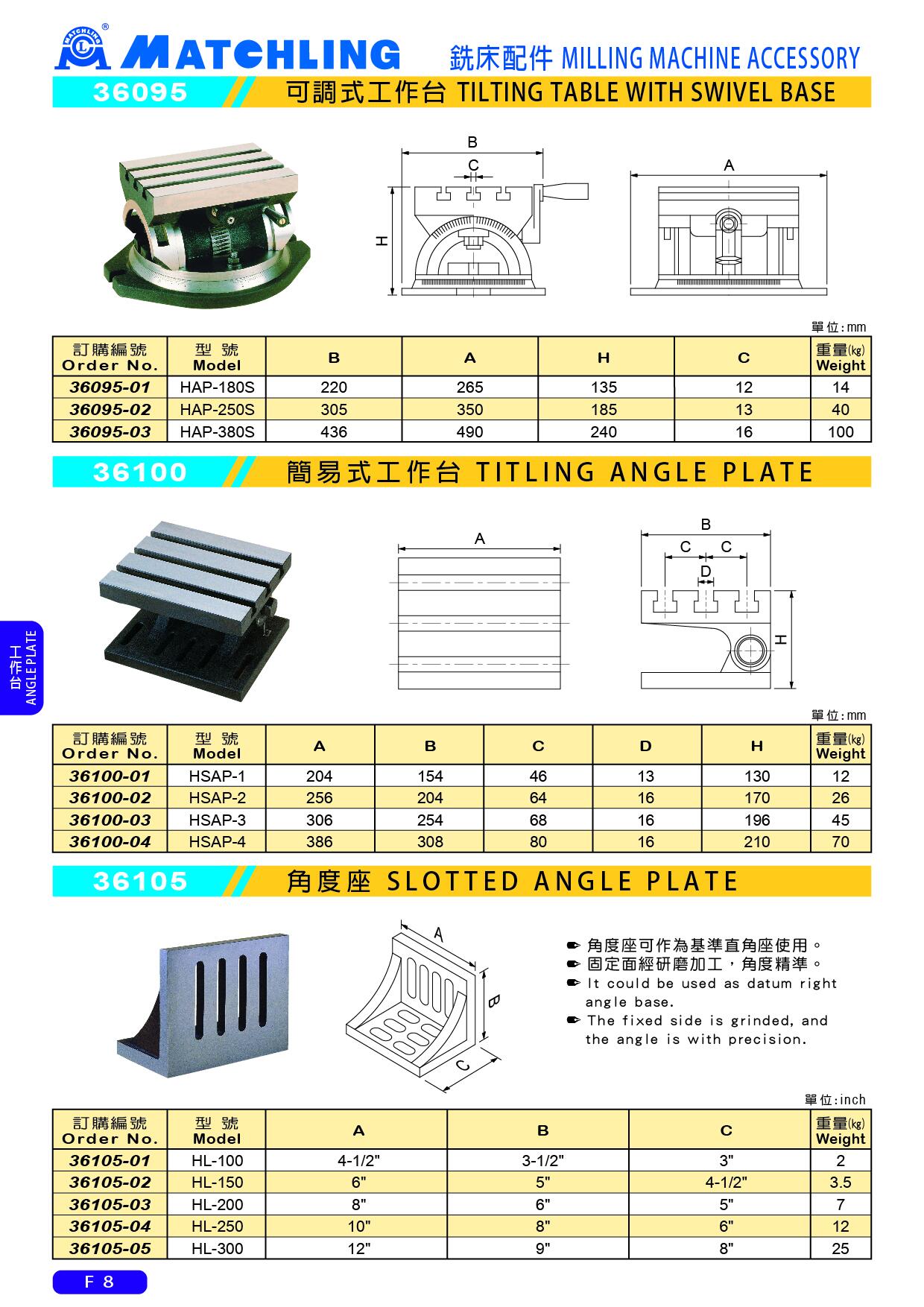

36095 TILTING TABLE WITH SWIVEL BASE
unit：mm
| Order No. | Model | B | A | H | C | Weight (kg) |
| 36095-01 | HAP-180S | 220 | 265 | 135 | 12 | 12 |
| 36095-02 | HAP-250S | 305 | 350 | 185 | 12 | 40 |
| 36095-03 | HAP-380S | 436 | 490 | 240 | 16 | 100 |
