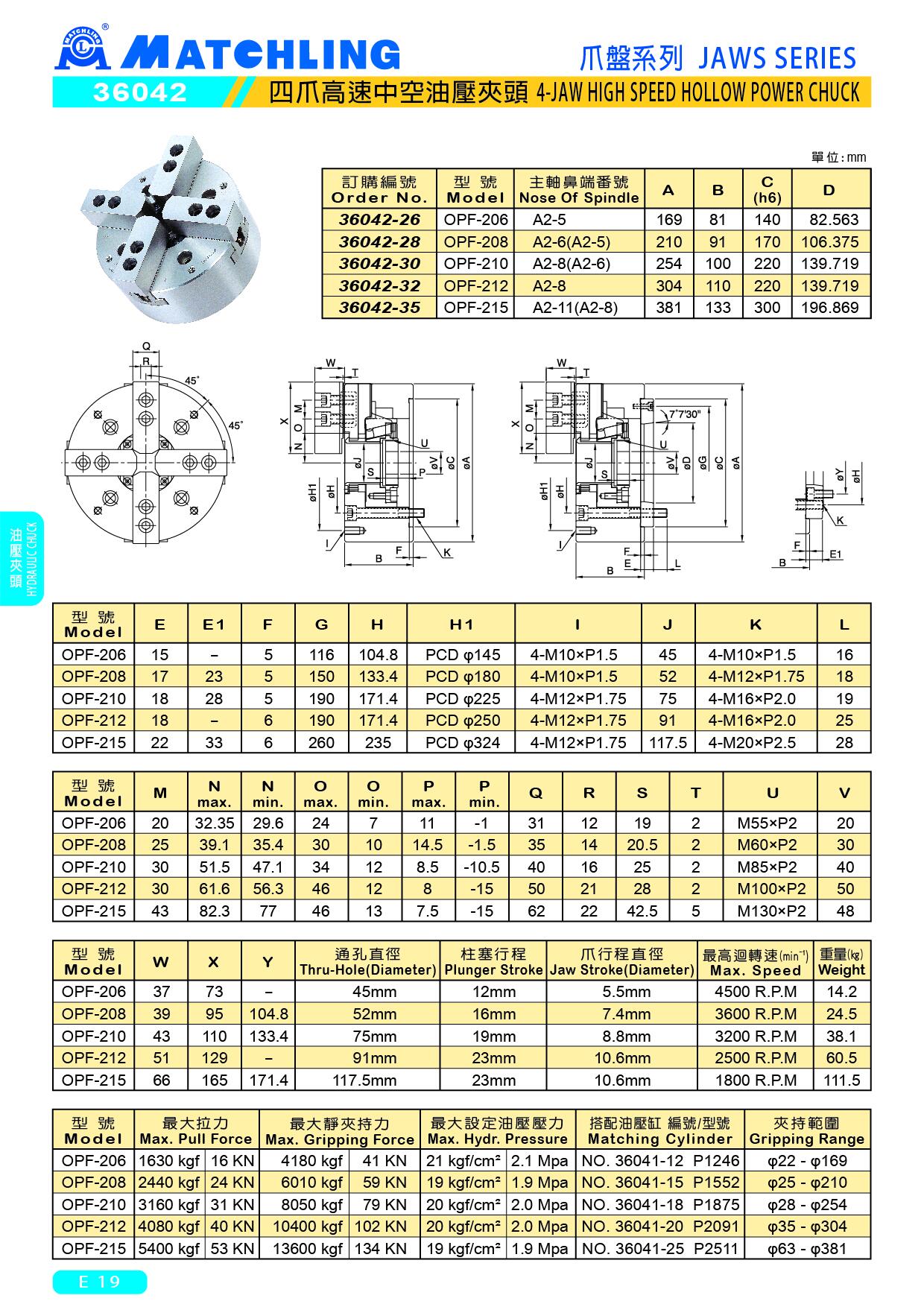

36042 4-JAW HIGH SPEED HOLLOW POWER CHUCK
unit：mm
| Order No. | Model | Nose Of Spindle | A | B | C (h6) | D |
| 36042-26 | OPF-206 | A2-5 | 169 | 81 | 140 | 82.563 |
| 36042-28 | OPF-208 | A2-6(A2-5) | 210 | 91 | 170 | 106.375 |
| 36042-30 | OPF-210 | A2-8(A2-6) | 254 | 100 | 220 | 139.719 |
| 36042-32 | OPF-212 | A2-8 | 304 | 110 | 220 | 139.719 |
| 36042-35 | OPF-215 | A2-11(A2-8) | 381 | 133 | 300 | 196.869 |
unit：mm
| Model | E | E1 | F | G | H | H1 | 1 | J | K | L |
| OPF-206 | 15 | - | 5 | 116 | 104.8 | PCDφ145 | 4-M10xP1.5 | 45 | 4-M10xP1.5 | 16 |
| OPF-208 | 17 | 23 | 5 | 150 | 133.4 | PCD φ180 | 4-M10xP1.5 | 52 | 4-M12xP1.75 | 18 |
| OPF-210 | 18 | 28 | 5 | 190 | 171.4 | PCD φ225 | 4-M12xP1.75 | 75 | 4-M16xP2.0 | 19 |
| OPF-212 | 18 | - | 6 | 190 | 171.4 | PCDφ250 | 4-M12xP1.75 | 91 | 4-M16xP2.0 | 25 |
| OPF-215 | 22 | 33 | 6 | 260 | 235 | PCDφ324 | 4-M12xP1.75 | 117.5 | 4-M20xP2.5 | 28 |
| Model | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T | U | V |
| OPF-206 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 | M55xP2 | 20 |
| OPF-208 | 25 | 39.1 | 35.4 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 | M60xP2 | 30 |
| OPF-210 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M85xP2 | 40 |
| OPF-212 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 | M100xP2 | 50 |
| OPF-215 | 43 | 82.3 | 77 | 46 | 13 | 7.5 | -15 | 62 | 22 | 42.5 | 5 | M130xP2 | 48 |
| Model | W | X | Y | Thru-Hole (Diameter) | Plunger Stroke | Jaw Stroke (Diameter) | Max. Speed (min-1) | Weight (kg) |
| OPF-206 | 37 | 73 | - | 45mm | 12mm | 5.5mm | 4500 R.P.M | 14.2 |
| OPF-208 | 39 | 95 | 104.8 | 52mm | 16mm | 7.4mm | 3600 R.P.M | 24.5 |
| OPF-210 | 43 | 110 | 133.4 | 75mm | 19mm | 8.8mm | 3200 R.P.M | 38.1 |
| OPF-212 | 51 | 129 | - | 91mm | 23mm | 10.6mm | 2500 R.P.M | 60.5 |
| OPF-215 | 66 | 165 | 171.4 | 117.5mm | 23mm | 10.6mm | 1800 R.P.M | 111.5 |
| Model | Max. Pull Force | Max. Gripping Force | Max. Hydr. Pressure | Matching Cylinder | Gripping Range | ||||
| OPF-206 | 1630 kgf | 16 KN | 4180 kgf | 41 KN | 21 kgf/cm2 | 2.1 Mpa | NO. 36041-12 P1246 | φ22 -φ169 | |
| OPF-208 | 2440 kgf | 24 KN | 6010 kgf | 59 KN | 19 kgf/cm2 | 1.9 Mpa | NO. 36041-15 P1552 | φ25 -φ210 | |
| OPF-210 | 3160 kgf | 31 KN | 8050 kgf | 79 KN | 20 kgf/cm2 | 2.0 Mpa | NO. 36041-18 P1875 | φ28 - φ254 | |
| OPF-212 | 4080 kgf | 40 KN | 10400 kgf | 102 KN | 20 kgf/cm2 | 2.0 Mpa | NO. 36041-20 P2091 | φ35 -φ304 | |
| OPF-215 | 5400 kgf | 53 KN | 13600 kgf | 134 KN | 19 kgf/cm2 | 1.9 Mpa | NO. 36041-25 P2511 | φ63 - φ381 | |
