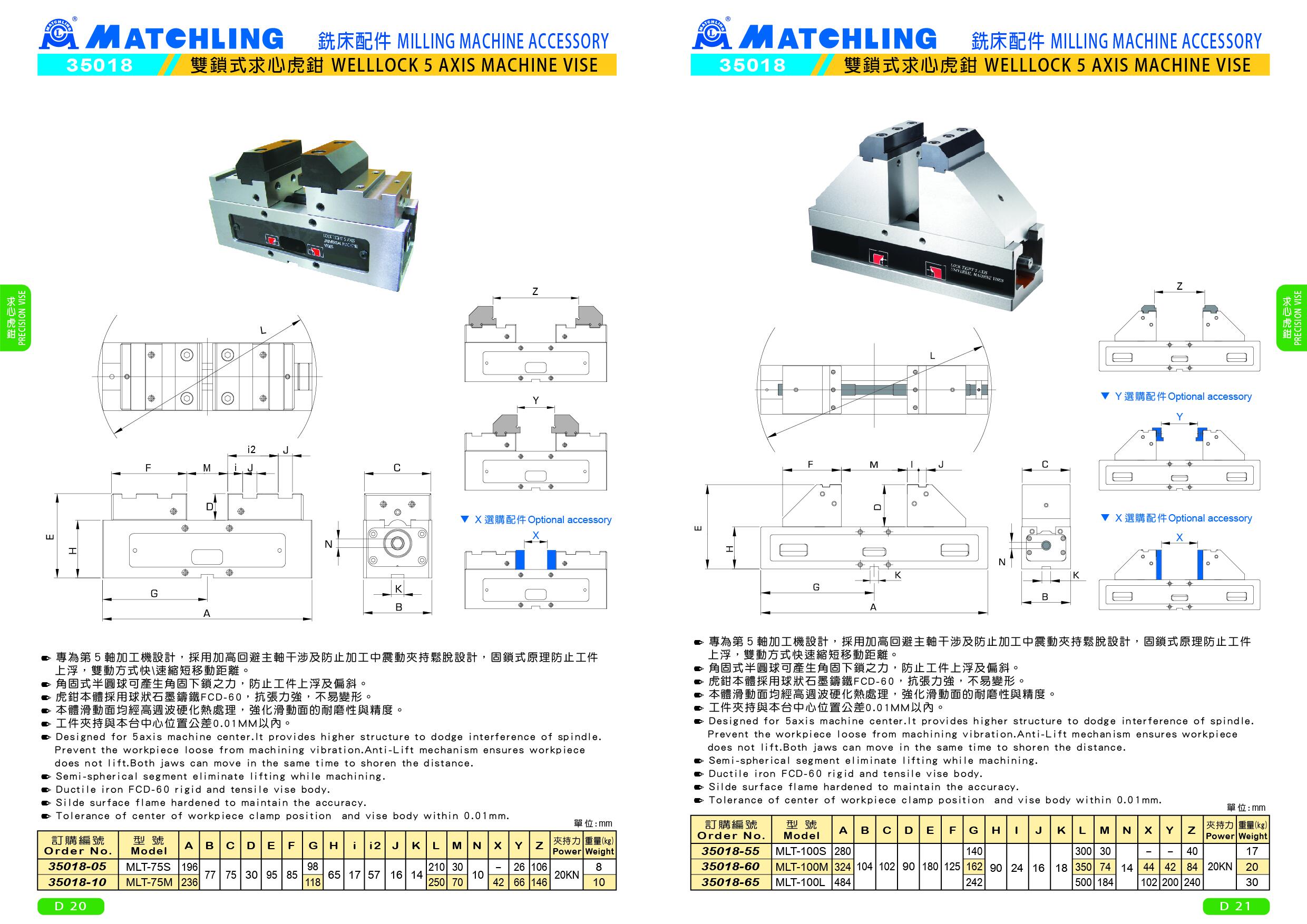

35018 Welllock 5 Axis Machine Vise
● Designed for 5axis machine center.It provides higher structure to dodge interference of spindle. Prevent the workpiece loose from machining vibration. Anti-Lift mechanism ensures workpiece does not lift. Both jaws can move in the same time to shoren the distance.
● Semi-spherical segment eliminate lifting while machining.
● Ductile iron FCD-60 rigid and tensile vise body.
● Silde surface flame hardened to maintain the accuracy.
● Tolerance of center of workpiece clamp position and vise body within 0.01mm.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | i | i2 | J | K | L | M | N | X | Y | Z | Power | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35018-05 | MLT-75S | 196 | 77 | 75 | 30 | 95 | 85 | 98 | 65 | 17 | 57 | 16 | 14 | 210 | 30 | 10 | - | 26 | 106 | 20KN | 8 |
| 35018-10 | MLT-75M | 236 | 77 | 75 | 30 | 95 | 85 | 118 | 65 | 17 | 57 | 16 | 14 | 250 | 70 | 10 | 42 | 66 | 146 | 20KN | 10 |
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | i | J | K | L | M | N | X | Y | Z | Power | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35018-55 | MLT-100S | 280 | 104 | 102 | 90 | 180 | 125 | 140 | 90 | 24 | 16 | 18 | 300 | 30 | 14 | - | - | 40 | 20KN | 17 |
| 35018-60 | MLT-100M | 324 | 104 | 102 | 90 | 180 | 125 | 162 | 90 | 24 | 16 | 18 | 350 | 74 | 14 | 44 | 42 | 84 | 20KN | 20 |
| 35018-65 | MLT-100L | 484 | 104 | 102 | 90 | 180 | 125 | 242 | 90 | 24 | 16 | 18 | 500 | 184 | 14 | 102 | 200 | 240 | 20KN | 30 |
