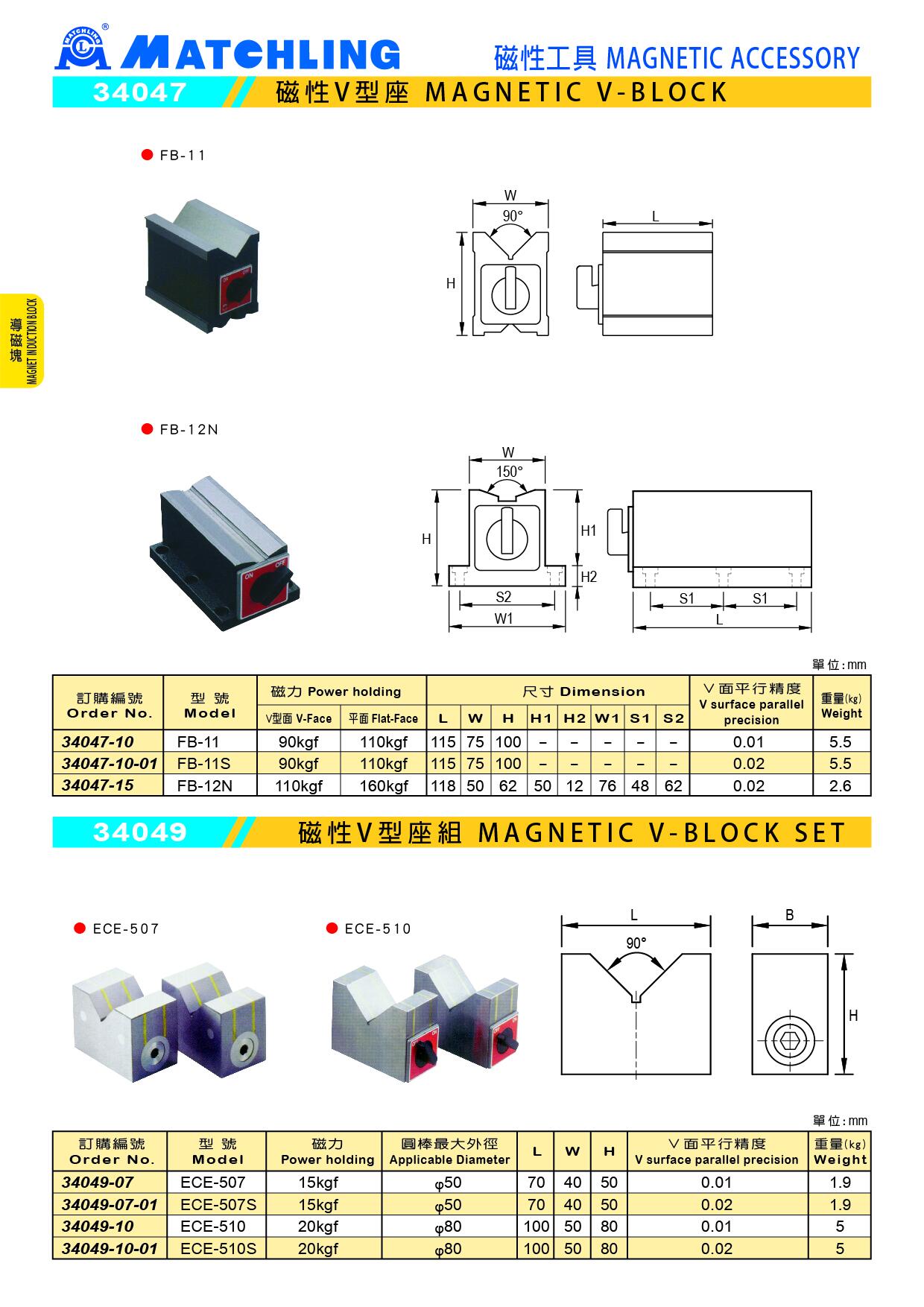

34049 MAGNETIC V-BLOCK SET
● V-type surface parallel precision: within 0.01MM.
unit：mm
| Order No. | Model | Power Holding | Applicable Diameter | L | W | H | V - Suface Parallel Precision | Weight (kg) |
| 34049-07 | ECE-507 | 15kgf | ϕ50 | 70 | 40 | 50 | 0.01 | 1.9 |
| 34049-07-01 | ECE-507S | 15kgf | ϕ50 | 70 | 40 | 50 | 0.02 | 1.9 |
| 34049-10 | ECE-510 | 20kgf | ϕ80 | 100 | 50 | 80 | 0.01 | 5 |
| 34049-10-01 | ECE-510S | 20kgf | ϕ80 | 100 | 50 | 80 | 0.02 | 5 |
