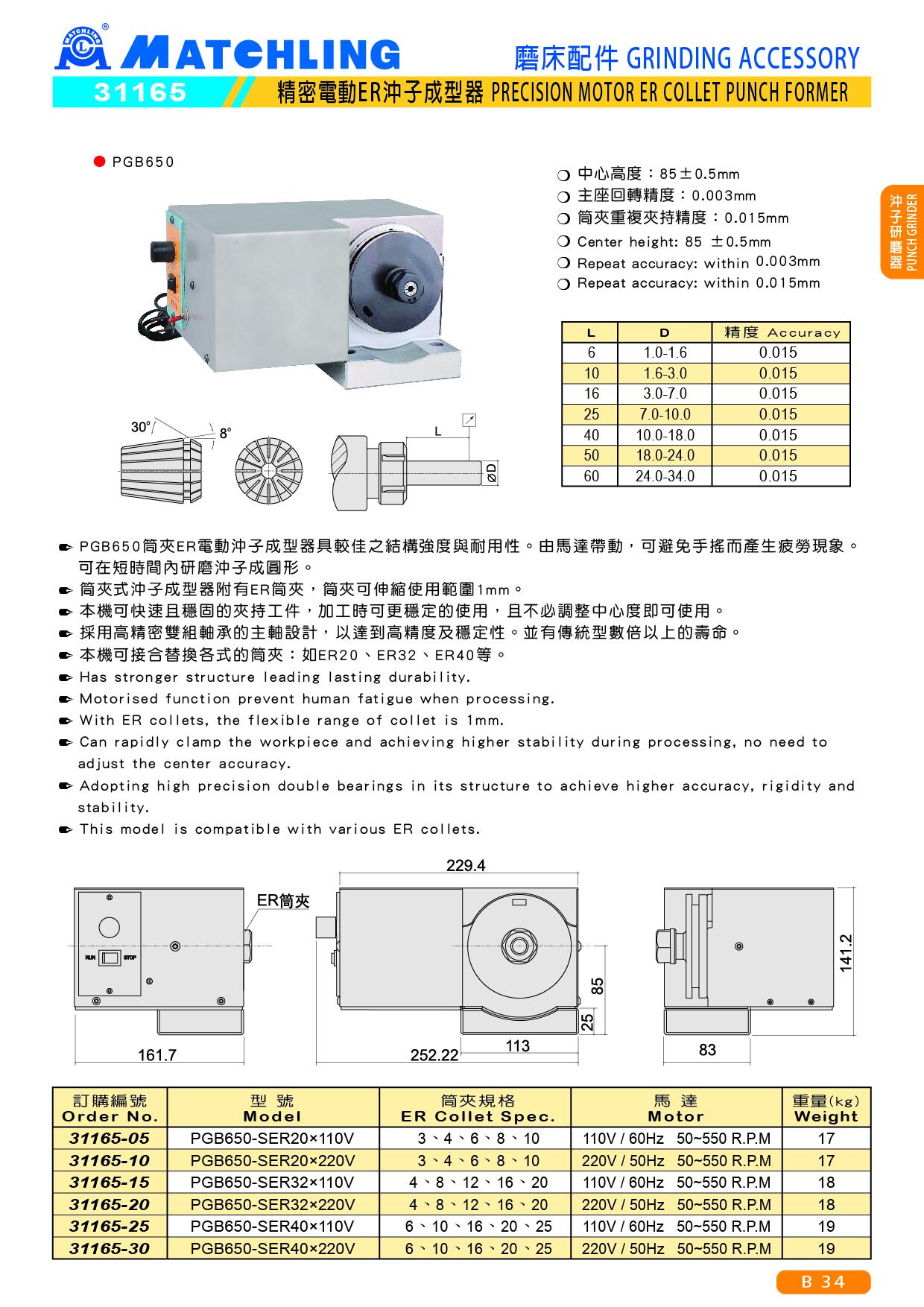

31165 PRECISION MOTOR ER COLLET PUNCH FORMER
● Has stronger structure leading lasting durability.
● Motorised function prevent human fatigue when processing.
● With ER collets, the flexible range of collet is 1mm.
● Capable collet clamping range: Min. Ø2mm, Max. Ø26mm.
● Can rapidly clamp the workpiece and achieving higher stability during processing, no need to adjust the center accuracy.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
● This model is compatible with various ER collets.
■ Specifications:
● Center height: 85 ±0.5mm
● Repeat accuracy: within 0.003mm
| L | D | ccuracy |
|---|---|---|
| 6 | 1.0-1.6 | 0.01 |
| 10 | 1.6-3.0 | 0.01 |
| 16 | 3.0-7.0 | 0.01 |
| 25 | 7.0-10.0 | 0.01 |
| 40 | 10.0-18.0 | 0.01 |
| 50 | 18.0-24.0 | 0.01 |
| 60 | 24.0-34.0 | 0.01 |
unit：mm
| Order No | Model | ER Collet Spec | Motor | Weight（kg） |
| 31165-05 | PGB650-SER20x110V | 3、4、6、8、10 | 110V/60HZ 50~550 R.P.M | 17 |
| 31165-10 | PGB650-SER20x220V | 3、4、6、8、10 | 220V / 50Hz 50-550 R.P.M | 17 |
| 31165-15 | PGB650-SER32x110V | 4、8、12、16、20 | 110V/60HZ 50-550 R.P.M | 18 |
| 31165-20 | PGB650-SER32x220V | 4、8、12、16、20 | 220V / 50Hz 50-550 R.P.M | 18 |
| 31165-25 | PGB650-SER40x110V | 6、10、16、20、25 | 110V/60HZ 50-550 R.P.M | 19 |
| 31165-30 | PGB650-SER40x220V | 6、10、16、20、25 | 220V / 50Hz 50-550 R.P.M | 19 |
