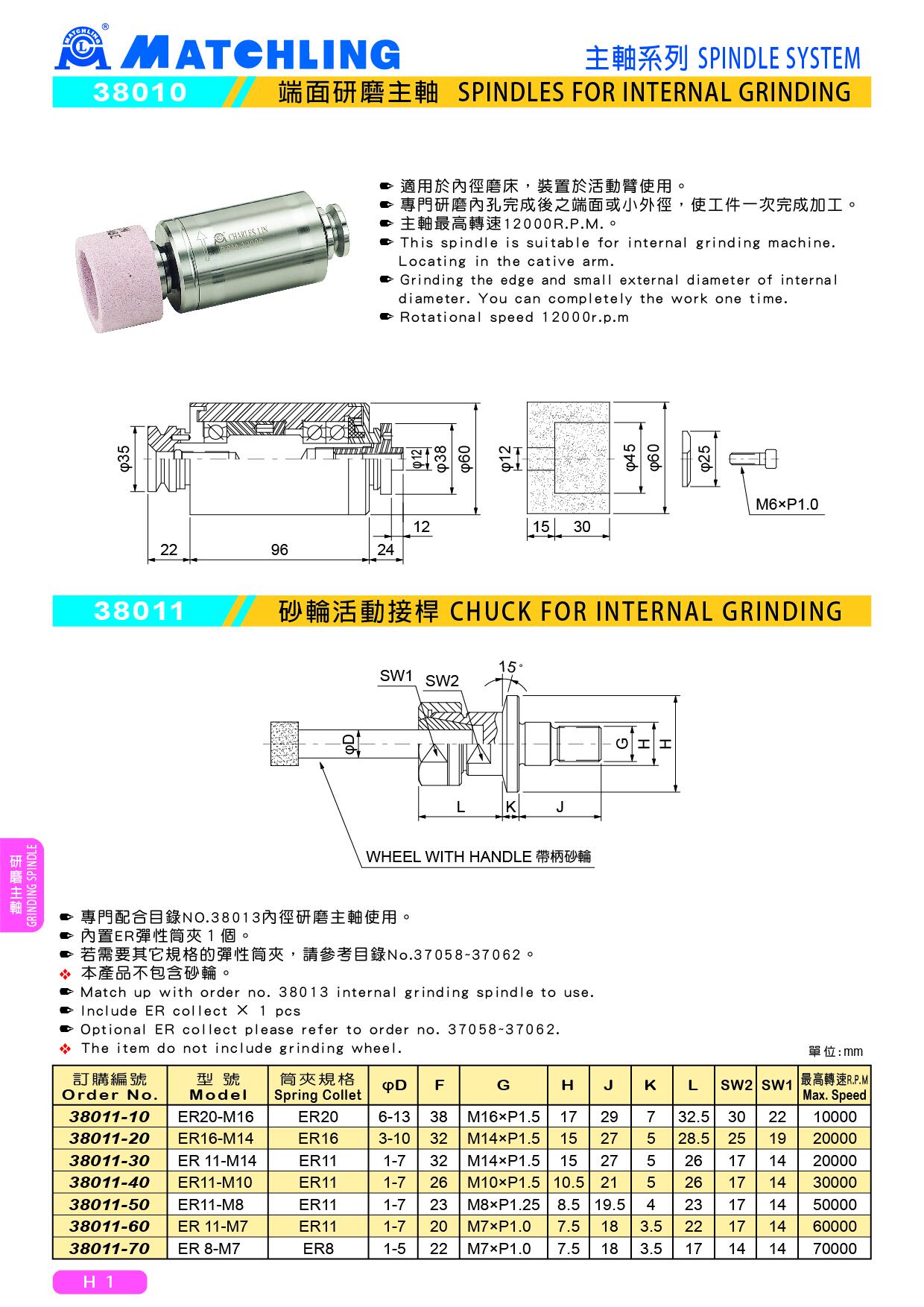

38011 CHUCK FOR INTERNAL GRINDING
● Match up with order no. 38013 internal grinding spindle to use.
● Include ER collect X 1 pcs
● Optional ER collect please refer to order no. 37058-37062.
● The item do not include grinding wheel.
unit：mm
| Order No. | Model | Spring Collet | φD | F | G | H | J | K | L | SW2 | SW1 | Max. Speed R.P.M |
| 38011-10 | ER20-M16 | ER20 | 6-13 | 38 | M16xP1.5 | 17 | 29 | 7 | 32.5 | 30 | 22 | 10000 |
| 38011-20 | ER16-M14 | ER16 | 3-10 | 32 | M14xP1.5 | 15 | 27 | 5 | 28.5 | 25 | 19 | 20000 |
| 38011-30 | ER 11-M14 | ER11 | 1-7 | 32 | M14xP1.5 | 15 | 27 | 5 | 26 | 17 | 14 | 20000 |
| 38011-40 | ER11-M10 | ER11 | 1-7 | 26 | M10xP1.5 | 10.5 | 21 | 5 | 26 | 17 | 14 | 30000 |
| 38011-50 | ER11-M8 | ER11 | 1-7 | 23 | M8xP1.25 | 8.5 | 19.5 | 4 | 23 | 17 | 14 | 50000 |
| 38011-60 | ER 11-M7 | ER11 | 1-7 | 20 | M7xP1.0 | 7.5 | 18 | 3.5 | 22 | 17 | 14 | 60000 |
| 38011-70 | ER 8-M7 | ER8 | 1-5 | 22 | M7xP1.0 | 7.5 | 18 | 3.5 | 17 | 14 | 14 | 70000 |
