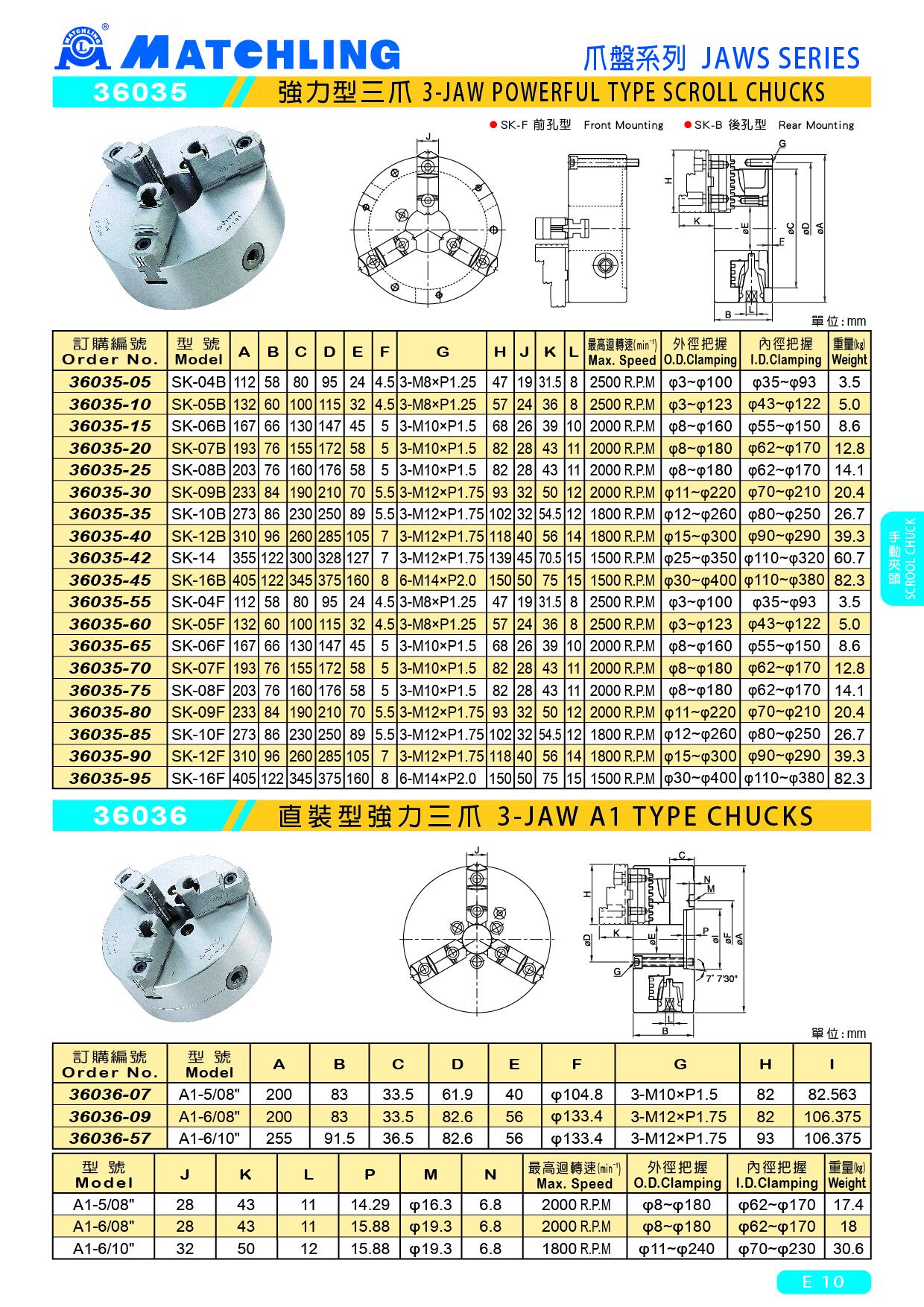

36036 3-JAW A1 TYPE CHUCKS
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | I | ||||||||||
| 36036-07 | A1-5/08" | 200 | 83 | 33.5 | 61.9 | 40 | φ104.8 | 3-M10xP1.5 | 82 | 82.563 | ||||||||||
| 36036-09 | A1-6/08" | 200 | 83 | 33.5 | 82.6 | 56 | φ133.4 | 3-M12xP1.75 | 82 | 106.375 | ||||||||||
| 36036-57 | A1-6/10" | 255 | 91.5 | 36.5 | 82.6 | 56 | φ133.4 | 3-M12xP1.75 | 93 | 106.375 | ||||||||||
| Model | J | K | L | P | M | N | Max. Speed (min-1) | O.D.CIamping | I.D.CIamping | Weight (kg) | ||||||||||
| A1-5/08" | 28 | 43 | 11 | 14.29 | φ16.3 | 6.8 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | 17.4 | ||||||||||
| A1-6/08" | 28 | 43 | 11 | 15.88 | φ19.3 | 6.8 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | 18 | ||||||||||
| A1-6/10" | 32 | 50 | 12 | 15.88 | φ19.3 | 6.8 | 1800 R.P.M | φ11~φ240 | φ70~φ230 | 30.6 | ||||||||||
