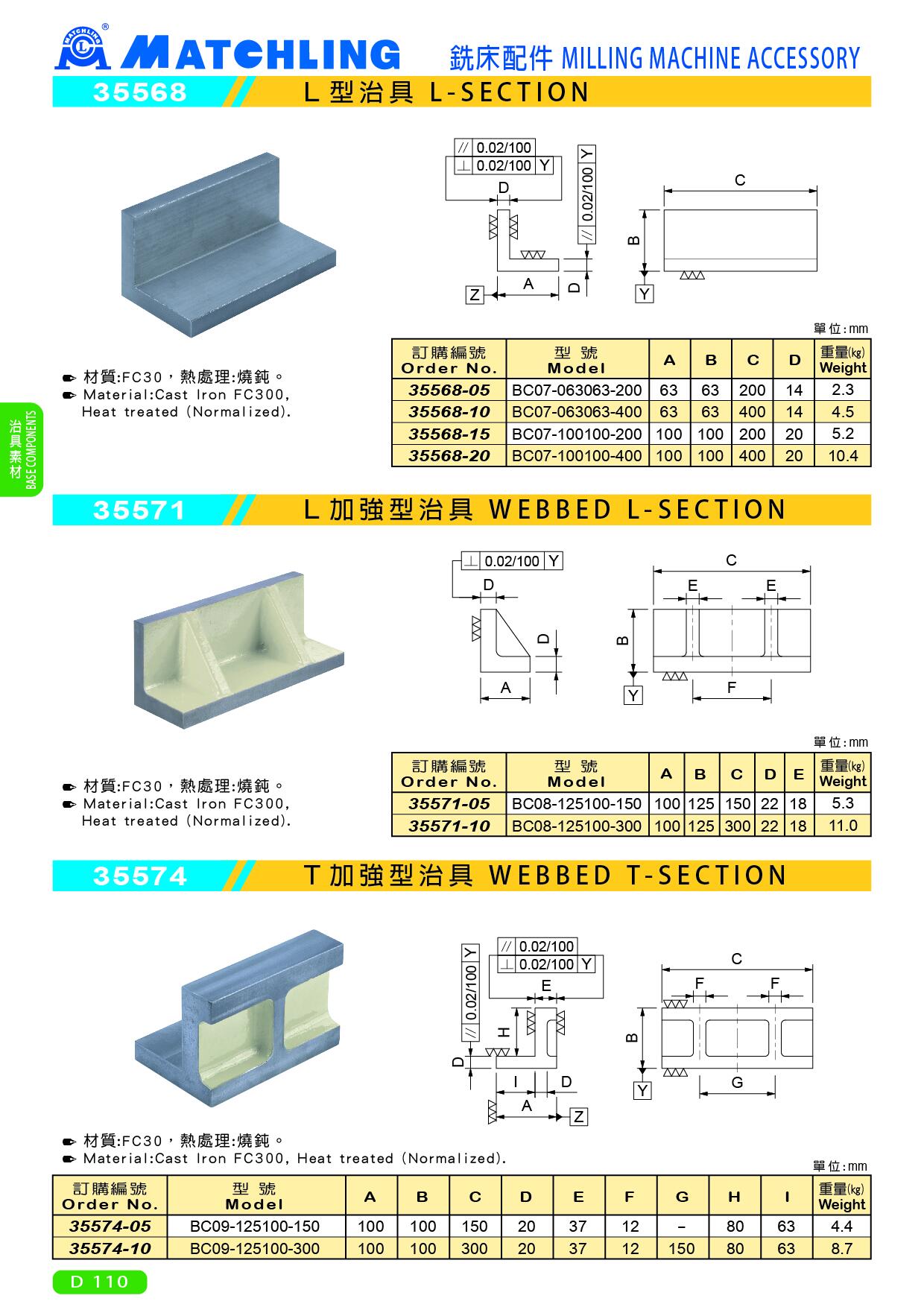

35571 WEBBED L-SECTION
● Material:Cast Iron FC300, Heat treated (Normalized).
unit：mm
| Order No. | Model | A | B | C | D | E | Weight (kg) |
| 35571-05 | BC08-125100-150 | 100 | 125 | 150 | 22 | 18 | 5.3 |
| 35571-10 | BC08-125100-300 | 100 | 125 | 300 | 22 | 18 | 11.0 |
