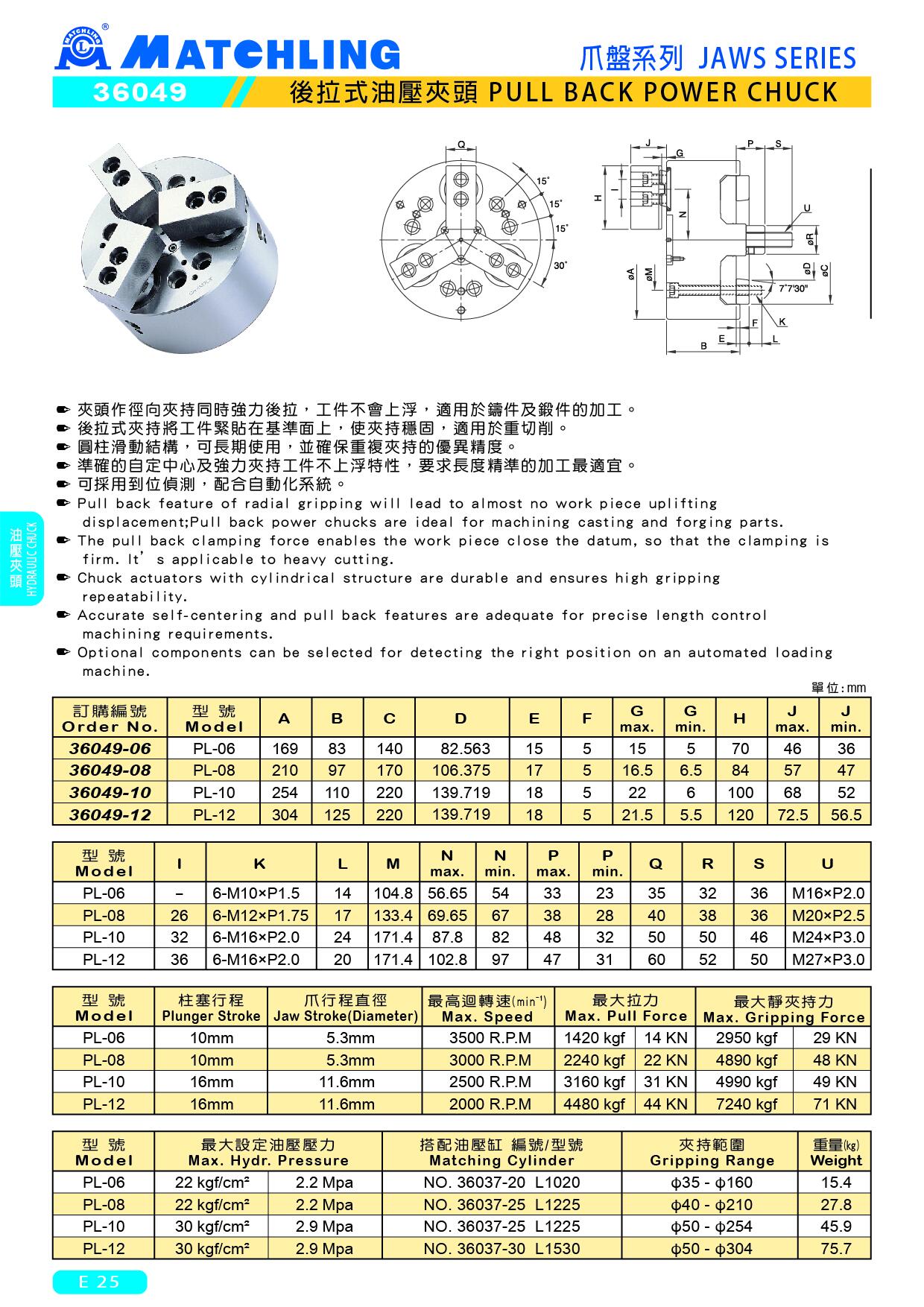

36049 PULL BACK POWER CHUCK
● Pull back feature of radial gripping will lead to almost no work piece uplifting displacement;Pull back power chucks are ideal for machining casting and forging parts.
● The pull back clamping force enables the work piece close the datum, so that the clamping is firm. It’s applicable to heavy cutting.
● Chuck actuators with cylindrical structure are durable and ensures high gripping repeatability.
● Accurate self-centering and pull back features are adequate for precise length control machining requirements.
● Optional components can be selected for detecting the right position on an automated loading machine.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G max. | G min. | H | J max. | J min. |
| 36049-06 | PL-06 | 169 | 83 | 140 | 82.563 | 15 | 5 | 15 | 5 | 70 | 46 | 36 |
| 36049-08 | PL-08 | 210 | 97 | 170 | 106.375 | 17 | 5 | 16.5 | 6.5 | 84 | 57 | 47 |
| 36049-10 | PL-10 | 254 | 110 | 220 | 139.719 | 18 | 5 | 22 | 6 | 100 | 68 | 52 |
| 36049-12 | PL-12 | 304 | 125 | 220 | 139.719 | 18 | 5 | 21.5 | 5.5 | 120 | 72.5 | 56.5 |
| Model | I | K | L | M | N max. | N min. | P max. | P min. | Q | R | S | U |
| PL-06 | - | 6-M10xP1.5 | 14 | 104.8 | 56.65 | 54 | 33 | 23 | 35 | 32 | 36 | M16xP2.0 |
| PL-08 | 26 | 6-M12xP1.75 | 17 | 133.4 | 69.65 | 67 | 38 | 28 | 40 | 38 | 36 | M20xP2.5 |
| PL-10 | 32 | 6-M16xP2.0 | 24 | 171.4 | 87.8 | 82 | 48 | 32 | 50 | 50 | 46 | M24xP3.0 |
| PL-12 | 36 | 6-M16xP2.0 | 20 | 171.4 | 102.8 | 97 | 47 | 31 | 60 | 52 | 50 | M27xP3.0 |
| Model | Plunger Stroke | Jaw Stroke(Diameter | Max. Speed (min-1) | Max. Pull Force | Max. Gripping Force | ||
| PL-06 | 10mm | 5.3mm | 3500 R.P.M | 1420 kgf | 14 KN | 2950 kgf | 29 KN |
| PL-08 | 10mm | 5.3mm | 3000 R.P.M | 2240 kgf | 22 KN | 4890 kgf | 48 KN |
| PL-10 | 16mm | 11.6mm | 2500 R.P.M | 3160 kgf | 31 KN | 4990 kgf | 49 KN |
| PL-12 | 16mm | 11.6mm | 2000 R.P.M | 4480 kgf | 44 KN | 7240 kgf | 71 KN |
| Model | Max. Hydr. Pressure | Matching Cylinder | Gripping Range | Weight (kg) | |
| PL-06 | 22 kgf/cm² | 2.2 Mpa | NO. 36037-20 L1020 | φ35-φ160 | 15.4 |
| PL-08 | 22 kgf/cm² | 2.2 Mpa | NO. 36037-25 L1225 | φ40-φ210 | 27.8 |
| PL-10 | 30 kgf/cm² | 2.9 Mpa | NO. 36037-25 L1225 | φ50-φ254 | 45.9 |
| PL-12 | 30 kgf/cm² | 2.9 Mpa | NO. 36037-30 L1530 | φ50-φ304 | 75.7 |
