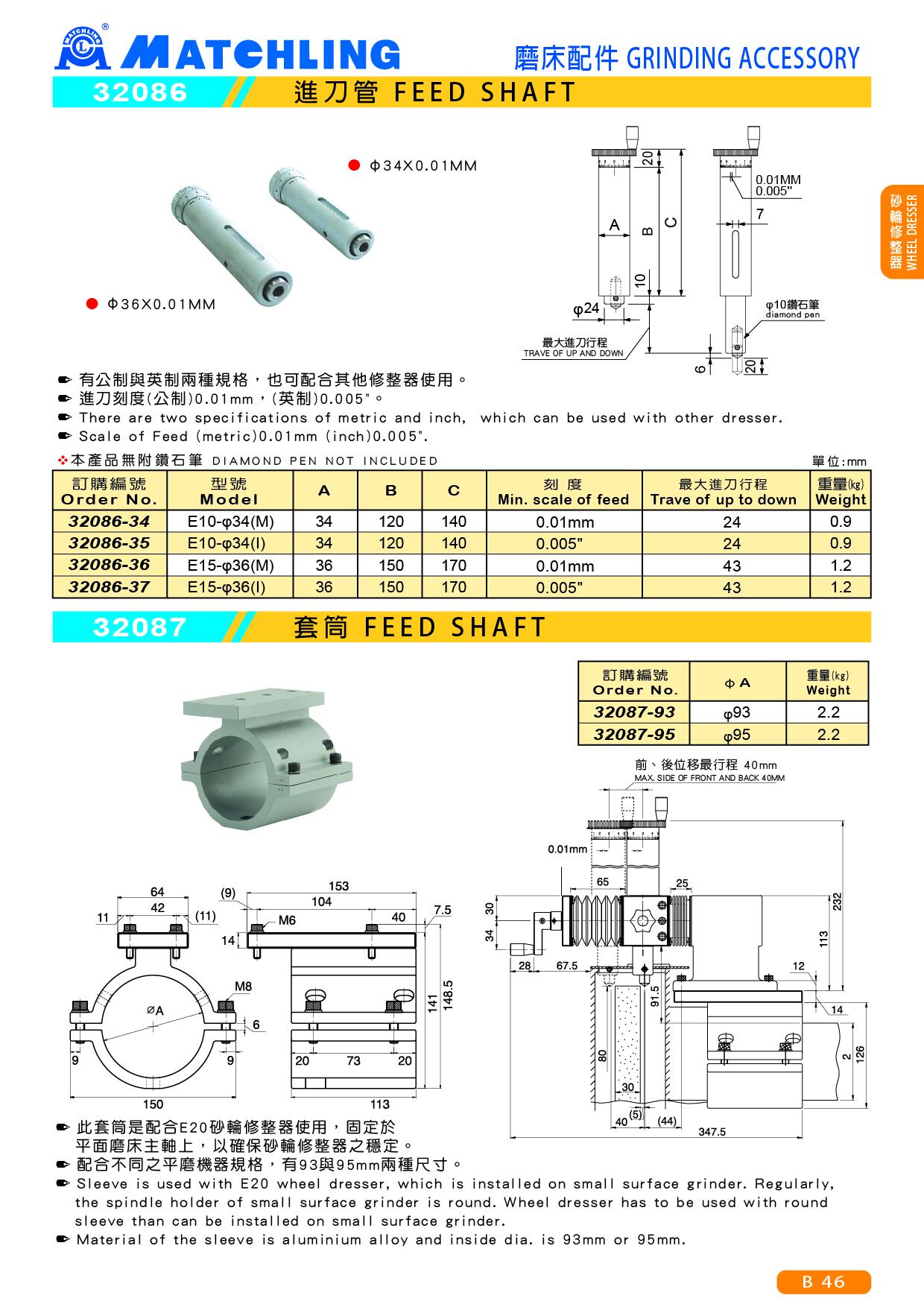

32086 Feed Shaft
● There are two specifications of metric and inch, which can be used with other dresser.
● Scale of Feed (metric)0.01mm (inch)0.005".
● Diamond pen not included.
unit：mm
| Order No | Model | A | B | C | Min. scale of feed | Trave of up to down | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 32086-34 | E10-φ34(M) | 34 | 120 | 140 | 0.01mm | 24 | 0.9 |
| 32086-35 | E10-φ34(I) | 34 | 120 | 140 | 0.005" | 24 | 0.9 |
| 32086-36 | E15-φ36(M) | 36 | 150 | 170 | 0.01mm | 43 | 1.2 |
| 32086-37 | E15-φ36(I) | 36 | 150 | 170 | 0.005" | 43 | 1.2 |
