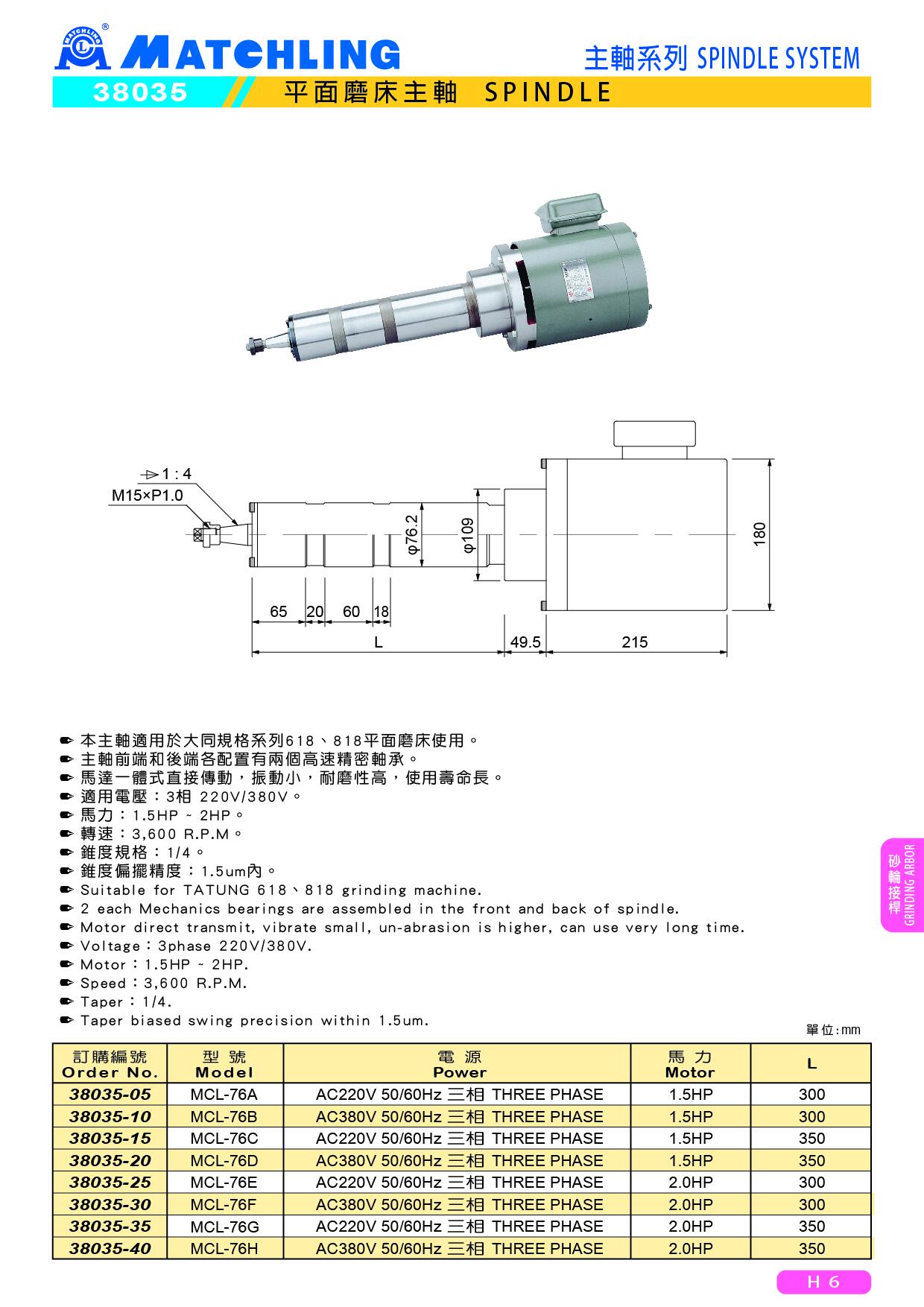

38035 SPINDLE
● Suitable for TATUNG 618、818 grinding machine.
● 2 each Mechanics bearings are assembled in the front and back of spindle.
● Motor direct transmit, vibrate small, un-abrasion is higher, can use very long time.
● Voltage: 3phase 220V/380V.
● Motor: 1.5HP 2HP.
● Speed 3,600 R.P.Μ.
● Taper: 1/4.
● Taper biased swing precision within 1.5um.
unit：mm
| Order No. | Model | Power | Motor | L |
| 38035-05 | MCL-76A | AC220V 50/60Hz THREE PHASE | 1.5HP | 300 |
| 38035-10 | MCL-76B | AC380V 50/60HZ THREE PHASE | 1.5HP | 300 |
| 38035-15 | MCL-76C | AC220V 50/60Hz THREE PHASE | 1.5HP | 350 |
| 38035-20 | MCL-76D | AC380V 50/60Hz THREE PHASE | 1.5HP | 350 |
| 38035-25 | MCL-76E | AC220V 50/60Hz THREE PHASE | 2.0HP | 300 |
| 38035-30 | MCL-76F | AC380V 50/60Hz THREE PHASE | 2.0HP | 300 |
| 38035-35 | MCL-76G | AC220V 50/60Hz THREE PHASE | 2.0HP | 350 |
| 38035-40 | MCL-76H | AC380V 50/60Hz THREE PHASE | 2.0HP | 350 |
