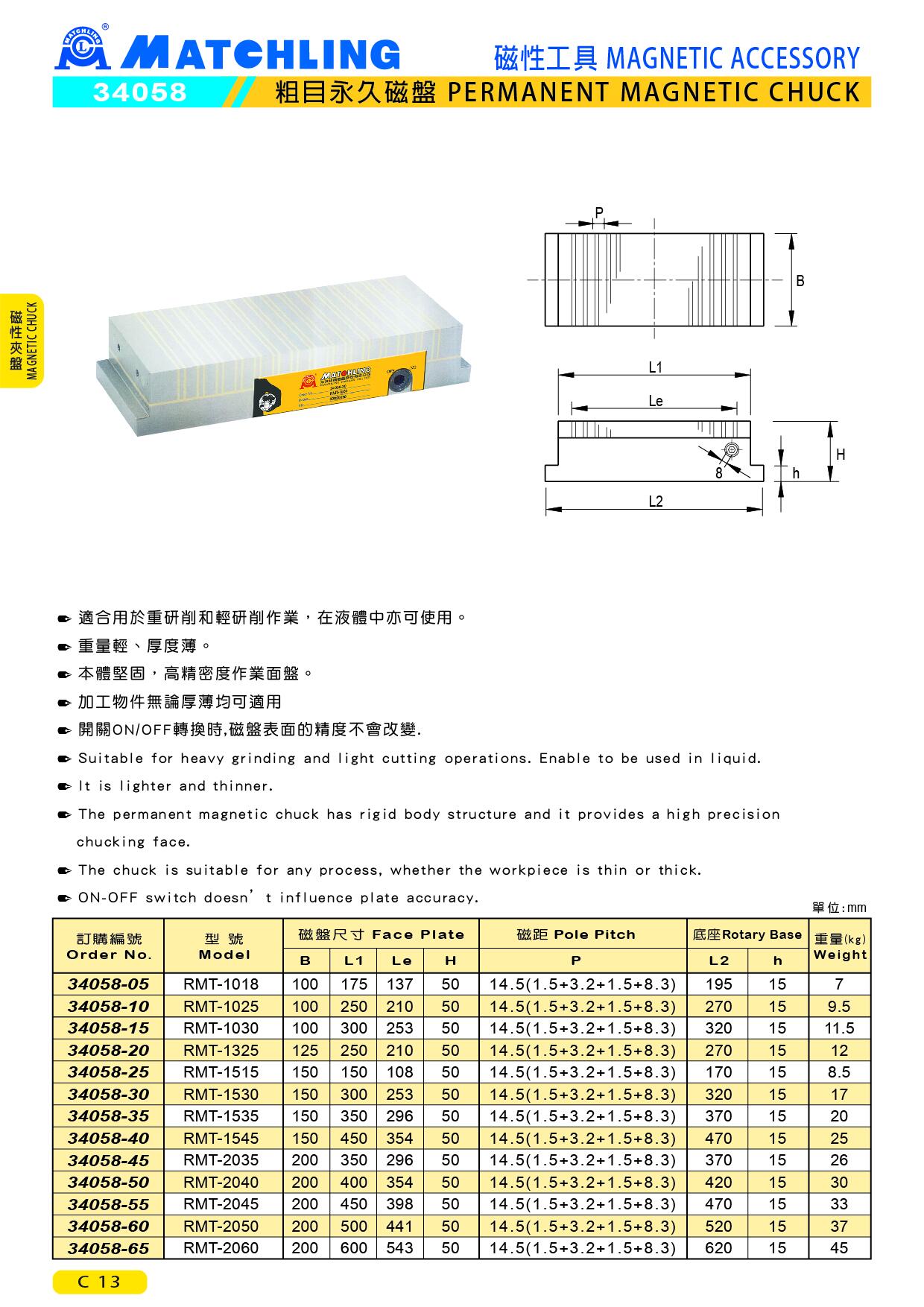

34058 PERMANENT MAGNETIC CHUCK
● Suitable for heavy grinding and light cutting operations. Enable to be used in liquid.
● It is lighter and thinner.
● The permanent magnetic chuck has rigid body structure and it provides a high precision chucking face.
● The chuck is suitable for any process, whether the workpiece is thin or thick.
● ON-OFF switch doesn’t influence plate accuracy.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Weight (kg) | ||||
| B | L1 | Le | H | P | L2 | h | |||
| 34058-05 | RMT-1018 | 100 | 175 | 137 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 195 | 15 | 7 |
| 34058-10 | RMT-1025 | 100 | 250 | 210 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 270 | 15 | 9.5 |
| 34058-15 | RMT-1030 | 100 | 300 | 253 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 320 | 15 | 11.5 |
| 34058-20 | RMT-1325 | 125 | 250 | 210 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 270 | 15 | 12 |
| 34058-25 | RMT-1515 | 150 | 150 | 108 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 170 | 15 | 8.5 |
| 34058-30 | RMT-1530 | 150 | 300 | 253 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 320 | 15 | 17 |
| 34058-35 | RMT-1535 | 150 | 350 | 296 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 370 | 15 | 20 |
| 34058-40 | RMT-1545 | 150 | 450 | 354 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 470 | 15 | 25 |
| 34058-45 | RMT-2035 | 200 | 350 | 296 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 370 | 15 | 26 |
| 34058-50 | RMT-2040 | 200 | 400 | 354 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 420 | 15 | 30 |
| 34058-55 | RMT-2045 | 200 | 450 | 398 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 470 | 15 | 33 |
| 34058-60 | RMT-2050 | 200 | 500 | 441 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 520 | 15 | 37 |
| 34058-65 | RMT-2060 | 200 | 600 | 543 | 50 | 14.5(1.5 + 3.2 + 1.5 + 8.3) | 620 | 15 | 45 |
