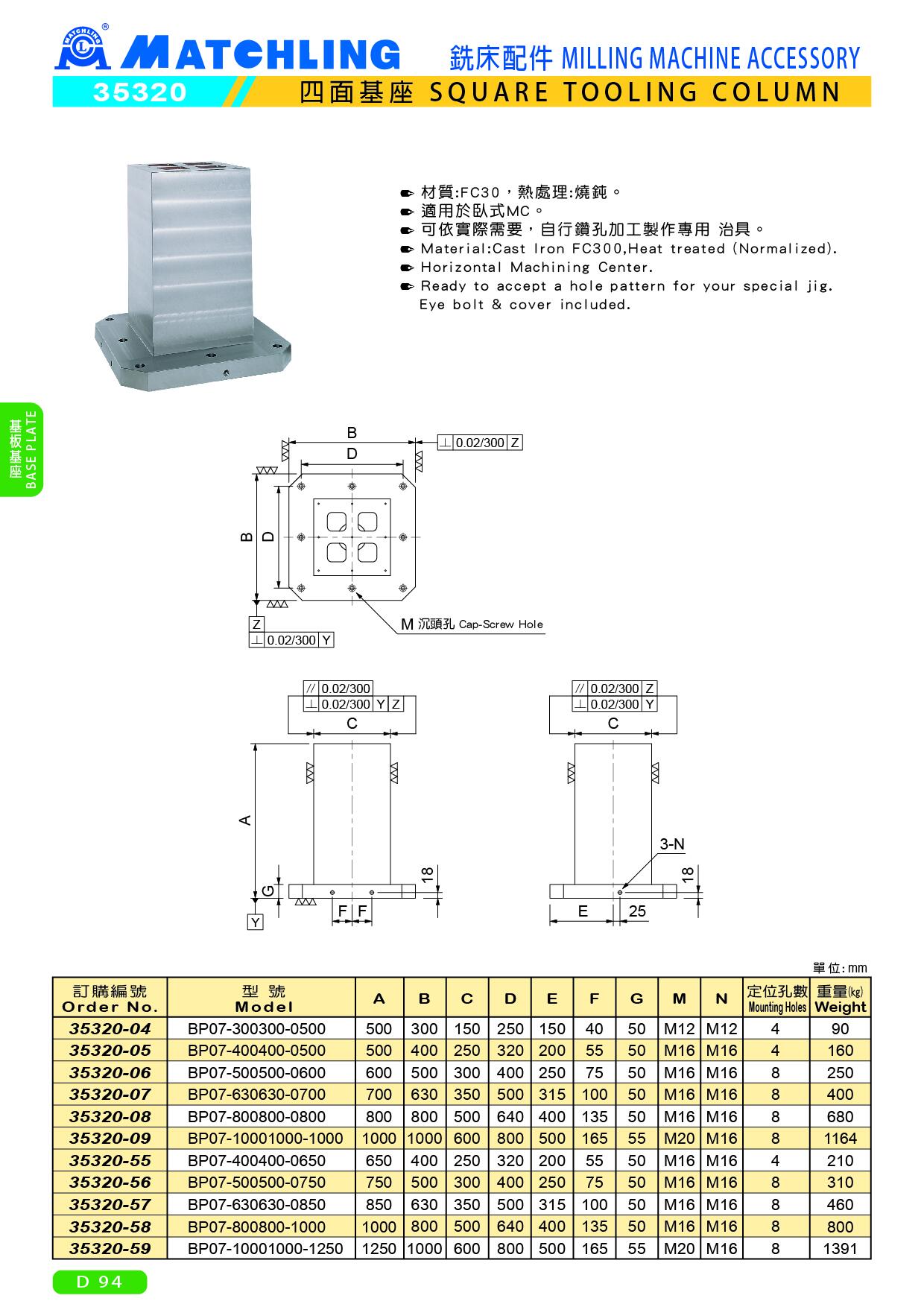

35320 SQUARE TOOLING COLUMN
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Ready to accept a hole pattern for your special jig. Eye bolt & cover included.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | M | N | Mounting Holes | Weight (kg) |
| 35320-04 | BP07-300300-0500 | 500 | 300 | 150 | 250 | 150 | 40 | 50 | M12 | M12 | 4 | 90 |
| 35320-05 | BP07-400400-0500 | 500 | 400 | 250 | 320 | 200 | 55 | 50 | M16 | M16 | 4 | 160 |
| 35320-06 | BP07-500500-0600 | 600 | 500 | 300 | 400 | 250 | 75 | 50 | M16 | M16 | 8 | 250 |
| 35320-07 | BP07-630630-0700 | 700 | 630 | 350 | 500 | 315 | 100 | 50 | M16 | M16 | 8 | 400 |
| 35320-08 | BP07-800800-0800 | 800 | 800 | 500 | 640 | 400 | 135 | 50 | M16 | M16 | 8 | 680 |
| 35320-09 | BP07-10001000-1000 | 1000 | 1000 | 600 | 800 | 500 | 165 | 55 | M20 | M16 | 8 | 1164 |
| 35320-55 | BP07-400400-0650 | 650 | 400 | 250 | 320 | 200 | 55 | 50 | M16 | M16 | 4 | 210 |
| 35320-56 | BP07-500500-0750 | 750 | 500 | 300 | 400 | 250 | 75 | 50 | M16 | M16 | 8 | 310 |
| 35320-57 | BP07-630630-0850 | 850 | 630 | 350 | 500 | 315 | 100 | 50 | M16 | M16 | 8 | 460 |
| 35320-58 | BP07-800800-1000 | 1000 | 800 | 500 | 640 | 400 | 135 | 50 | M16 | M16 | 8 | 800 |
| 35320-59 | BP07-10001000-1250 | 1250 | 1000 | 600 | 800 | 500 | 165 | 55 | M20 | M16 | 8 | 1391 |
