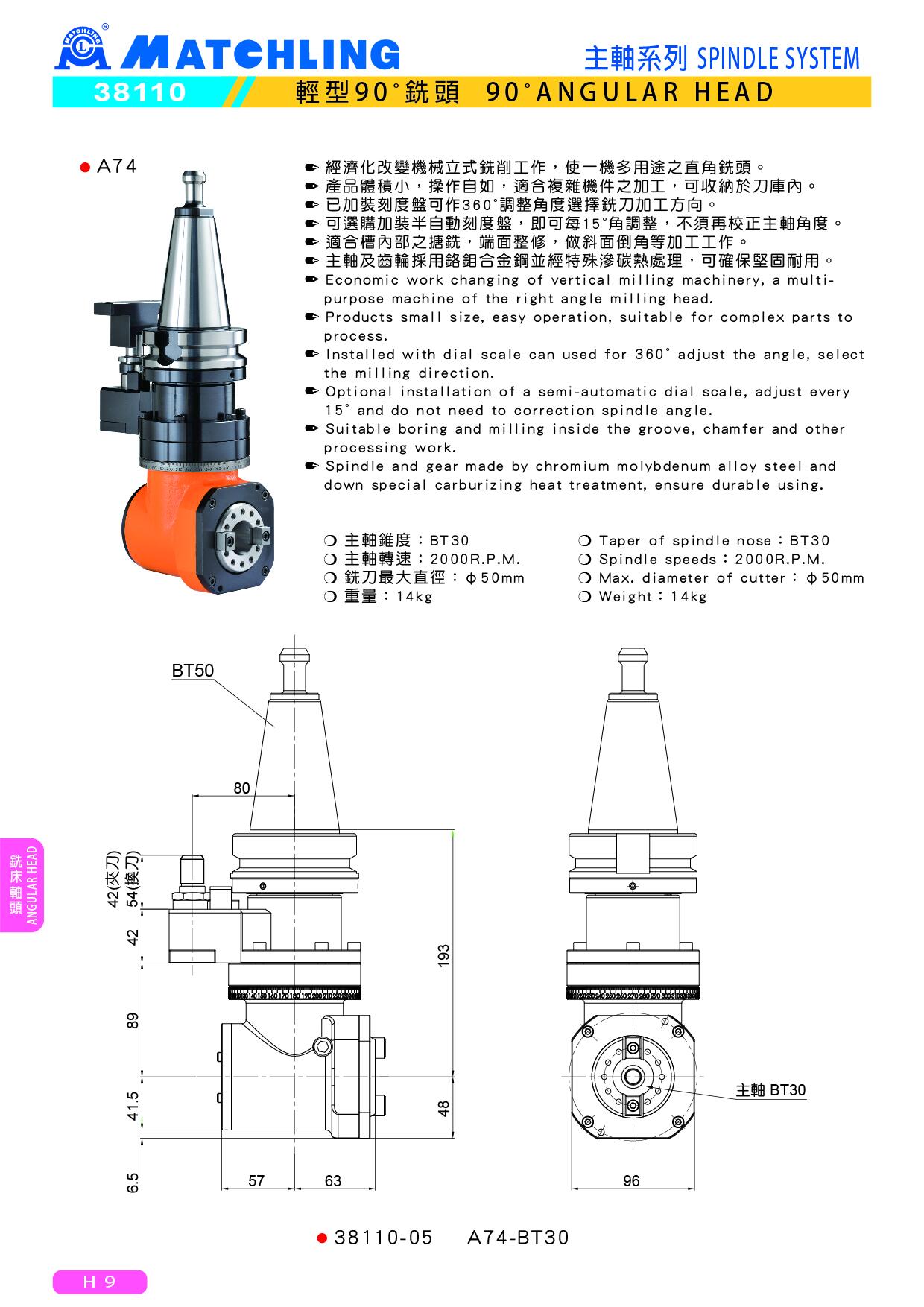

38110 90˚ ANGULAR HEAD

● Economic work changing of vertical milling machinery, a multi-purpose machine of the right angle milling head.
● Products small size, easy operation, suitable for complex parts to process.
● Installed with dial scale can used for 360° adjust the angle, select the milling direction.
● Optional installation of a semi-automatic dial scale, adjust every 15° and do not need to correction spindle angle.
● Suitable boring and milling inside the groove, chamfer and other processing work.
● Spindle and gear made by chromium molybdenum alloy steel and down special carburizing heat treatment, ensure durable using.

■Specifications:
● Taper of spindle nose:BT30
● Spindle speeds:2000R.P.M.
● Max. diameter of cutter：φ50mm
● Weight：14kg
