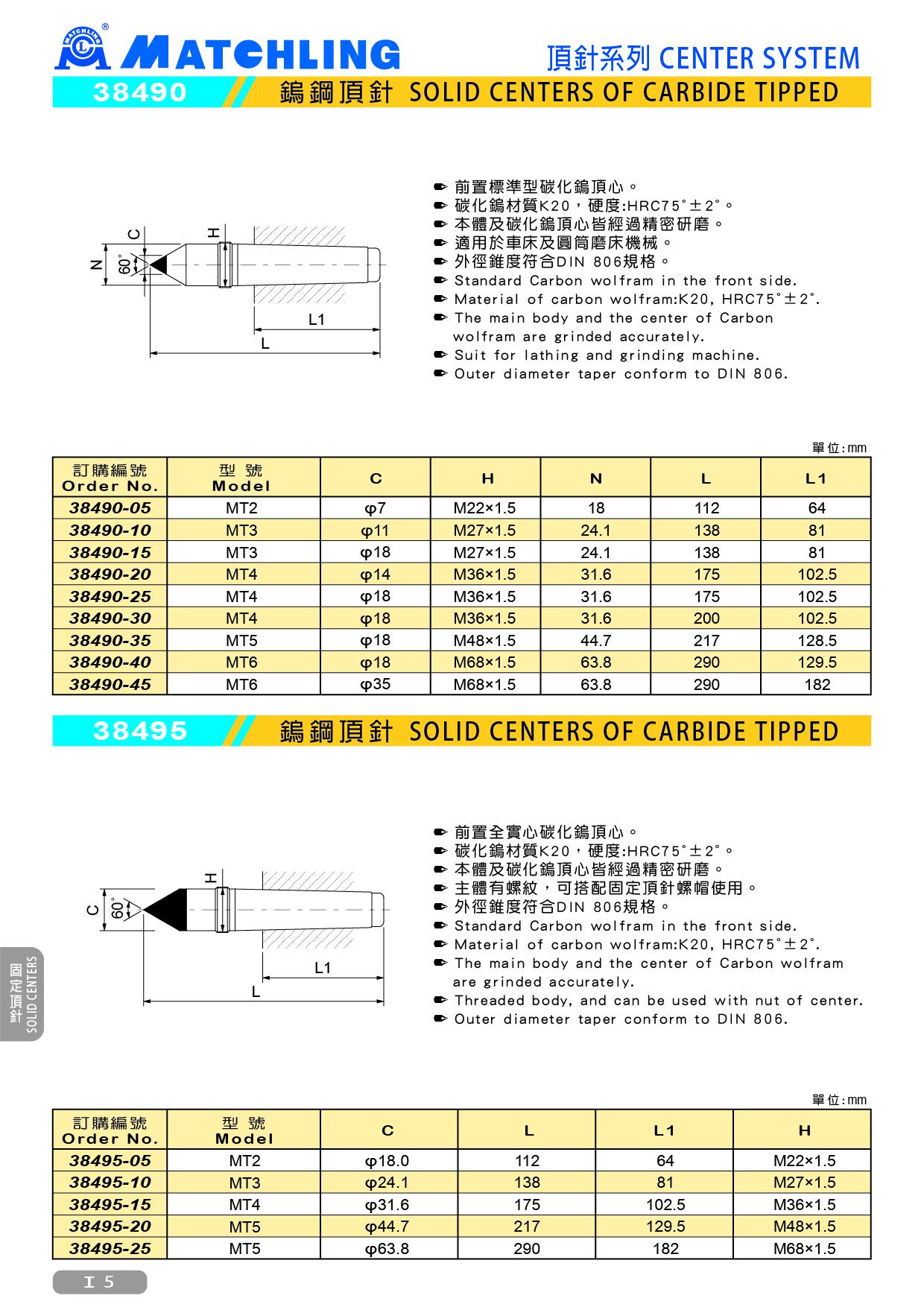

38490 SOLID CENTERS OF CARBIDE TIPPED
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Suit for lathing and grinding machine.
● Outer diameter taper conform to DIN 806.
unit：mm
| Order No. | Model | C | H | N | L | L1 |
| 38490-05 | MT2 | φ7 | M22x1.5 | 18 | 112 | 64 |
| 38490-10 | MT3 | φ11 | M27x1.5 | 24.1 | 138 | 81 |
| 38490-15 | MT3 | φ18 | M27X1.5 | 24.1 | 138 | 81 |
| 38490-20 | MT4 | φ14 | M36x1.5 | 31.6 | 175 | 102.5 |
| 38490-25 | MT4 | φ18 | M36x1.5 | 31.6 | 175 | 102.5 |
| 38490-30 | MT4 | φ18 | M36x1.5 | 31.6 | 200 | 102.5 |
| 38490-35 | MT5 | φ18 | M48X1.5 | 44.7 | 217 | 128.5 |
| 38490-40 | MT6 | φ18 | M68x1.5 | 63.8 | 290 | 129.5 |
| 38490-45 | MT6 | φ35 | M68x1.5 | 63.8 | 290 | 182 |
