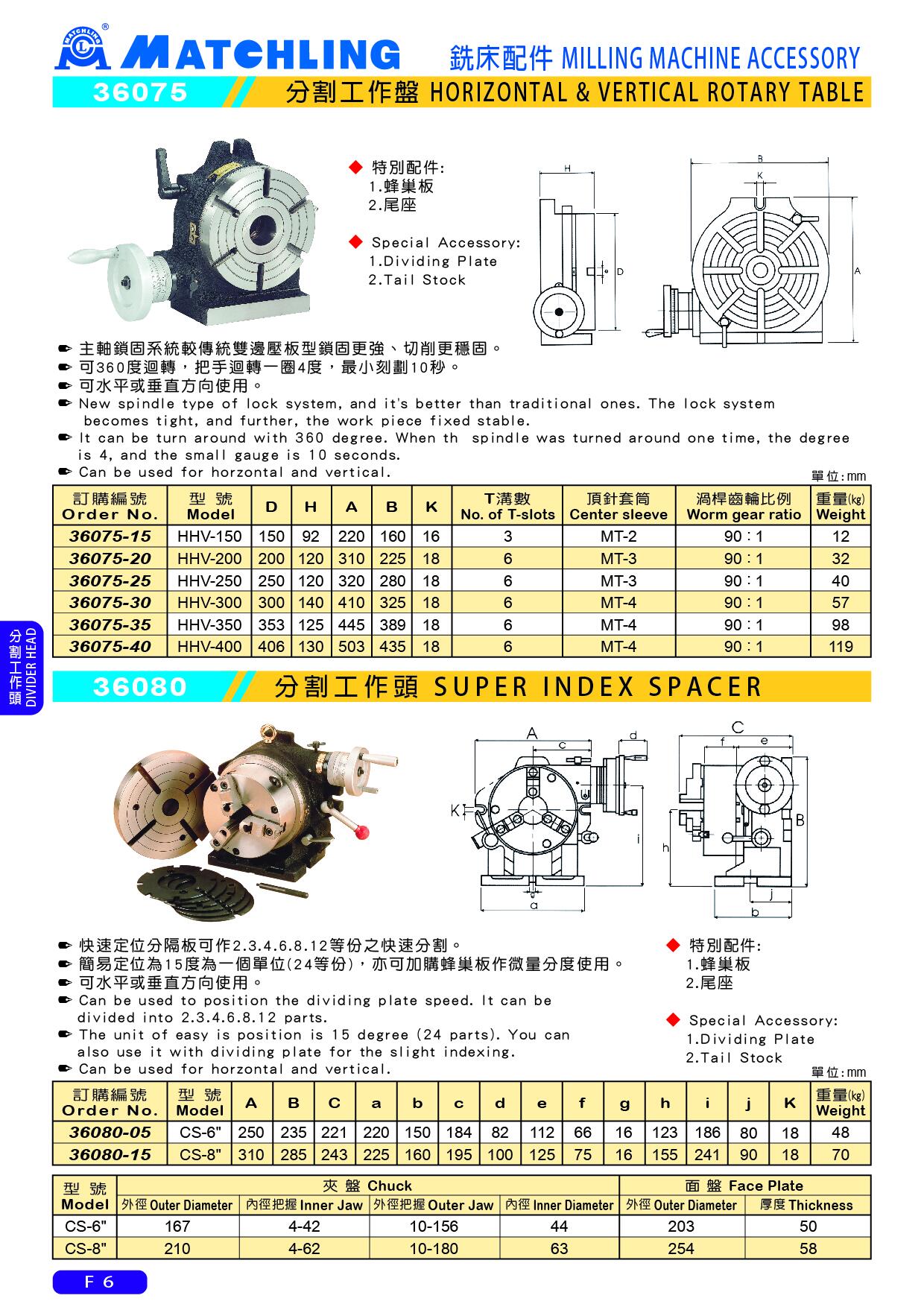

36075 HORIZONTAL & VERTICAL ROTARY TABLE
● New spindle type of lock system, and it's better than traditional ones. The lock system becomes tight, and further, the work piece fixed stable.
● It can be turn around with 360 degree. When th spindle was turned around one time, the degree. is 4, and the small gauge is 10 seconds.
● Can be used for horzontal and vertical.
◆ Special Accessory:
1.Dividing Plate
2.Tail Stock
unit：mm
| Order No. | Model | D | H | A | B | K | No. of T-slots | Center sleeve | Worm gear ratio | Weight (kg) |
| 36075-15 | HHV-150 | 150 | 92 | 220 | 160 | 16 | 3 | MT-2 | 90 : 1 | 12 |
| 36075-20 | HHV-200 | 200 | 120 | 310 | 225 | 18 | 6 | MT-3 | 90 : 1 | 32 |
| 36075-25 | HHV-250 | 250 | 120 | 320 | 280 | 18 | 6 | MT-3 | 90 : 1 | 40 |
| 36075-30 | HHV-300 | 300 | 140 | 410 | 325 | 18 | 6 | MT-4 | 90 : 1 | 57 |
| 36075-35 | HHV-350 | 353 | 125 | 445 | 389 | 18 | 6 | MT-4 | 90 : 1 | 98 |
| 36075-40 | HHV-400 | 406 | 130 | 503 | 435 | 18 | 6 | MT-4 | 90 : 1 | 119 |
