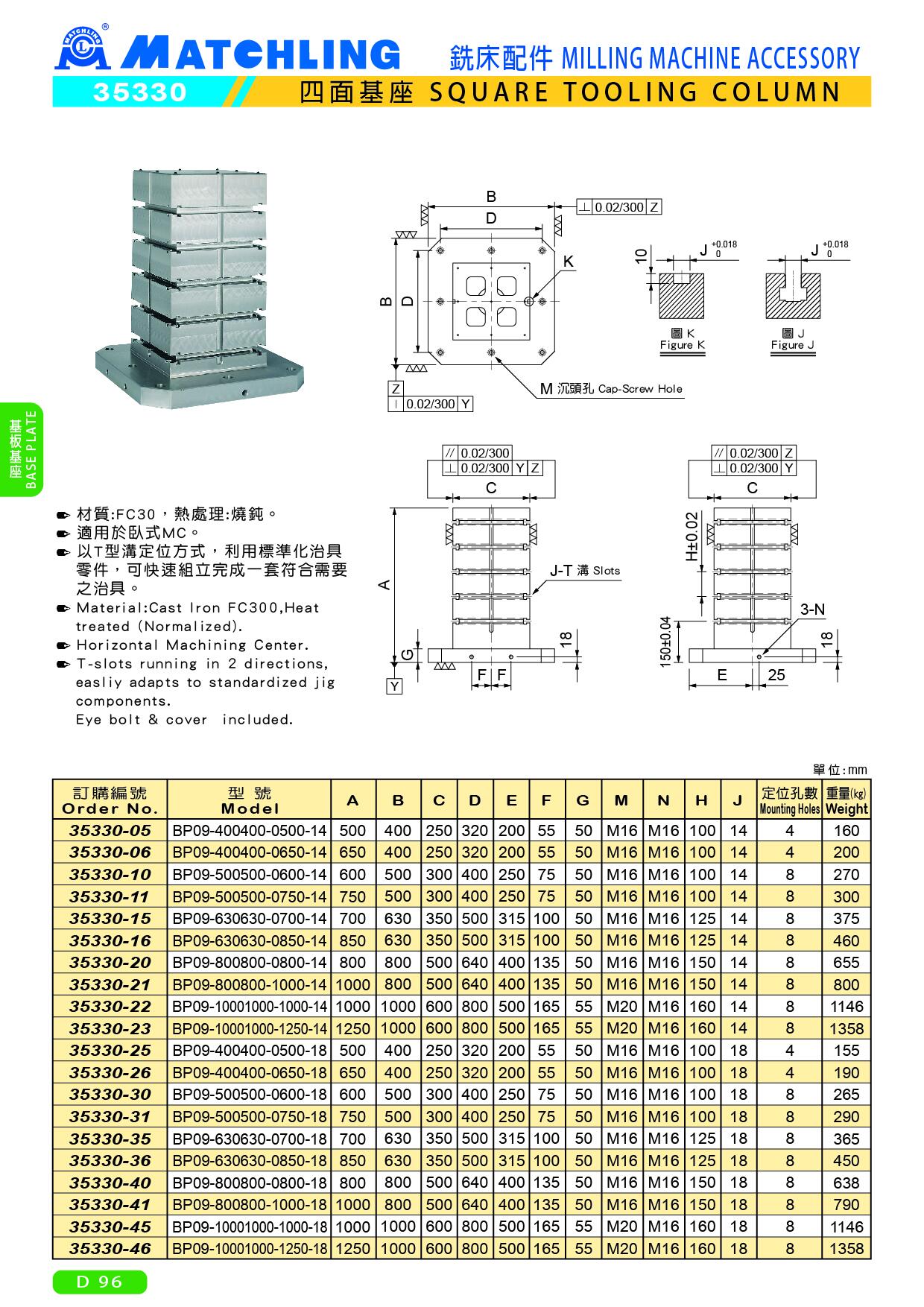

35330 SQUARE TOOLING COLUMN

Description
Specifications

● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● T-slots running in 2 directions,easliy adapts to standardized jig components. Eye bolt & cover included.

unit：mm

Order No.	Model	A	B	C	D	E	F	G	M	N	H	J	Mounting Holes	Weight (kg)
35330-05	BP09-400400-0500-14	500	400	250	320	200	55	50	M16	M16	100	14	4	160
35330-06	BP09-400400-0650-14	650	400	250	320	200	55	50	M16	M16	100	14	4	200
35330-10	BP09-500500-0600-14	600	500	300	400	250	75	50	M16	M16	100	14	8	270
35330-11	BP09-500500-0750-14	750	500	300	400	250	75	50	M16	M16	100	14	8	300
35330-15	BP09-630630-0700-14	700	630	350	500	315	100	50	M16	M16	125	14	8	375
35330-16	BP09-630630-0850-14	850	630	350	500	315	100	50	M16	M16	125	14	8	460
35330-20	BP09-800800-0800-14	800	800	500	640	400	135	50	M16	M16	150	14	8	655
35330-21	BP09-800800-1000-14	1000	800	500	640	400	135	50	M16	M16	150	14	8	800
35330-22	BP09-10001000-1000-14	1000	1000	600	800	500	165	55	M20	M16	160	14	8	1146
35330-23	BP09-10001000-1250-14	1250	1000	600	800	500	165	55	M20	M16	160	14	8	1358
35330-25	BP09-400400-0500-18	500	400	250	320	200	55	50	M16	M16	100	18	4	155
35330-26	BP09-400400-0650-18	650	400	250	320	200	55	50	M16	M16	100	18	4	190
35330-30	BP09-500500-0600-18	600	500	300	400	250	75	50	M16	M16	100	18	8	265
35330-31	BP09-500500-0750-18	750	500	300	400	250	75	50	M16	M16	100	18	8	290
35330-35	BP09-630630-0700-18	700	630	350	500	315	100	50	M16	M16	125	18	8	365
35330-36	BP09-630630-0850-18	850	630	350	500	315	100	50	M16	M16	125	18	8	450
35330-40	BP09-800800-0800-18	800	800	500	640	400	135	50	M16	M16	150	18	8	638
35330-41	BP09-800800-1000-18	1000	800	500	640	400	135	50	M16	M16	150	18	8	790
35330-45	BP09-10001000-1000-18	1000	1000	600	800	500	165	55	M20	M16	160	18	8	1146
35330-46	BP09-10001000-1250-18	1250	1000	600	800	500	165	55	M20	M16	160	18	8	1358
