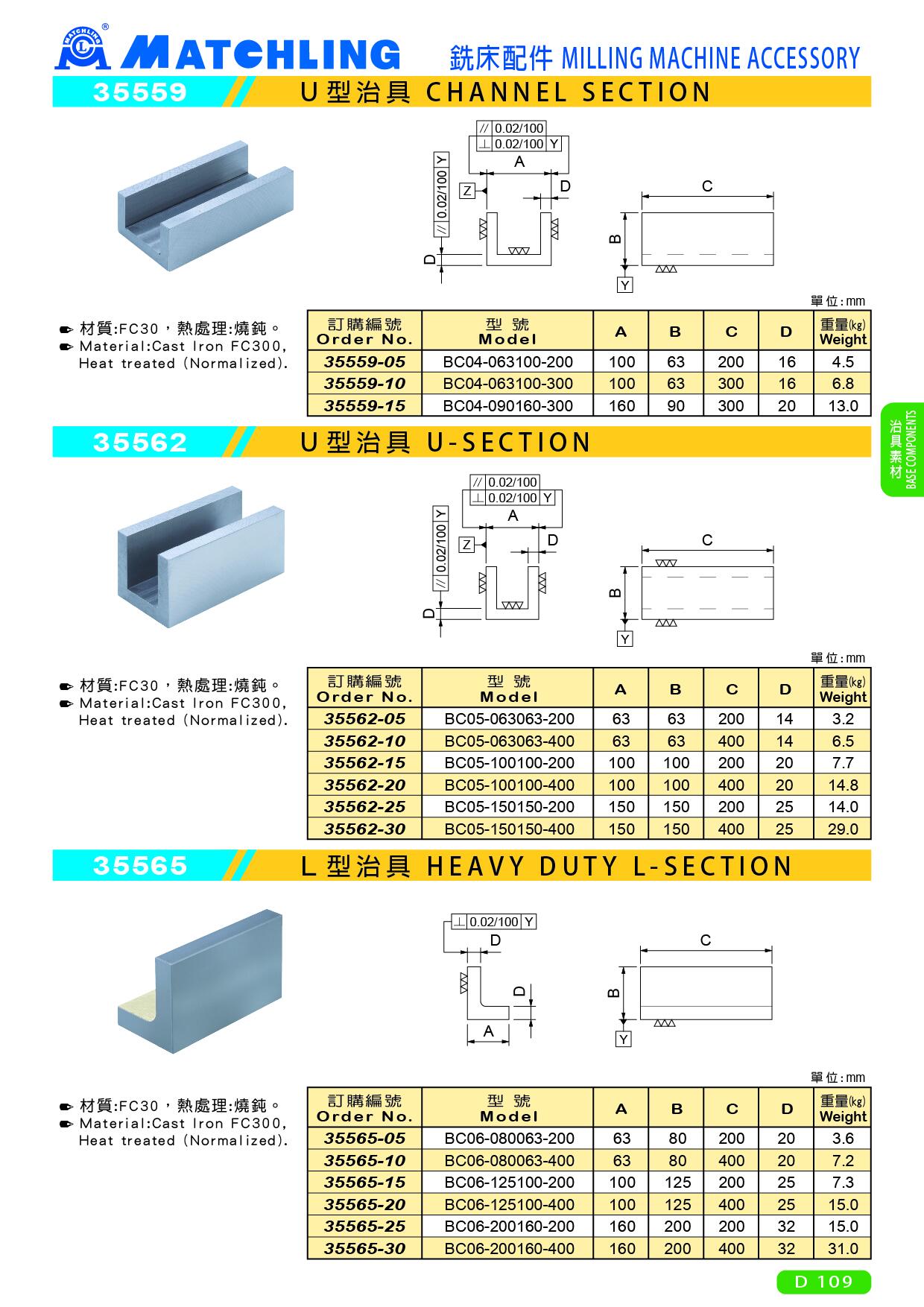

35565 HEAVY DUTY L-SECTION
● Material:Cast Iron FC300, Heat treated (Normalized).
unit：mm
| Order No. | Model | A | B | C | D | Weight (kg) |
| 35565-05 | BC06-080063-200 | 63 | 80 | 200 | 20 | 3.6 |
| 35565-10 | BC06-080063-400 | 63 | 80 | 400 | 20 | 7.2 |
| 35565-15 | BC06-125100-200 | 100 | 125 | 200 | 25 | 7.3 |
| 35565-20 | BC06-125100-400 | 100 | 125 | 400 | 25 | 15.0 |
| 35565-25 | BC06-200160-200 | 160 | 200 | 200 | 32 | 15.0 |
| 35565-30 | BC06-200160-400 | 160 | 200 | 400 | 32 | 31.0 |
