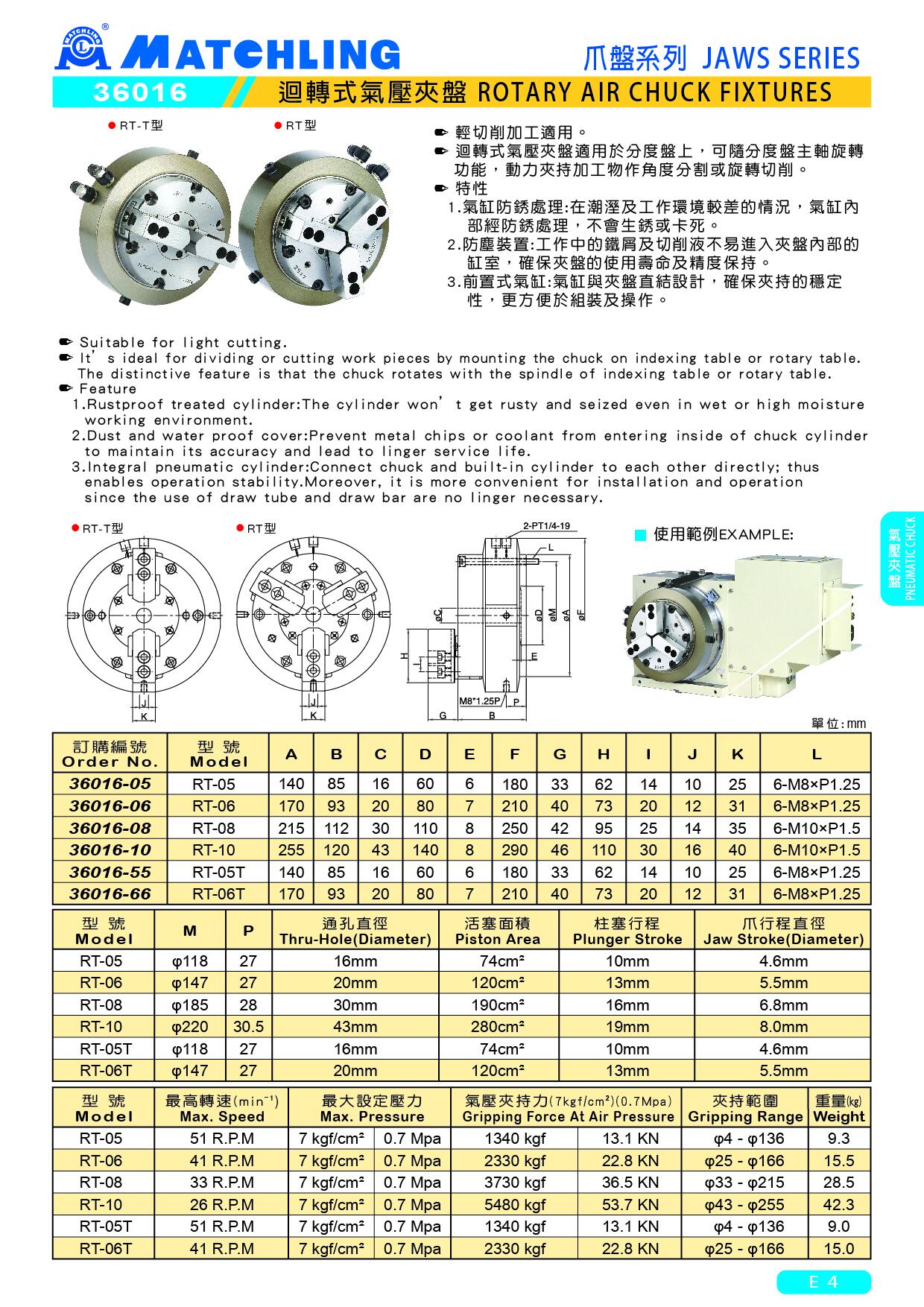

36016 ROTARY AIR CHUCK FIXTURES
● Suitable for light cutting.
● It’s ideal for dividing or cutting work pieces by mounting the chuck on indexing table or rotary table. The distinctive feature is that the chuck rotates with the spindle of indexing table or rotary table.
● Feature :
1.Rustproof treated cylinder:The cylinder won’t get rusty and seized even in wet or high moisture working environment.
2.Dust and water proof cover:Prevent metal chips or coolant from entering inside of chuck cylinder to maintain its accuracy and lead to linger service life.
3.Integral pneumatic cylinder:Connect chuck and built-in cylinder to each other directly;thus enables operation stability.Moreover, it is more convenient for installation and operation since the
use of draw tube and draw bar are no linger necessary.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | 1 | J | K | L | |||||||||
| 36016-05 | RT-05 | 140 | 85 | 16 | 60 | 6 | 180 | 33 | 62 | 14 | 10 | 25 | 6-M8xP1.25 | |||||||||
| 36016-06 | RT-06 | 170 | 93 | 20 | 80 | 7 | 210 | 40 | 73 | 20 | 12 | 31 | 6-M8xP1.25 | |||||||||
| 36016-08 | RT-08 | 215 | 112 | 30 | 110 | 8 | 250 | 42 | 95 | 25 | 14 | 35 | 6-M10xP1.5 | |||||||||
| 36016-10 | RT-10 | 255 | 120 | 43 | 140 | 8 | 290 | 46 | 110 | 30 | 16 | 40 | 6-M10xP1.5 | |||||||||
| 36016-55 | RT-05T | 140 | 85 | 16 | 60 | 6 | 180 | 33 | 62 | 14 | 10 | 25 | 6-M8xP1.25 | |||||||||
| 36016-66 | RT-06T | 170 | 93 | 20 | 80 | 7 | 210 | 40 | 73 | 20 | 12 | 31 | 6-M8xP1.25 | |||||||||
| Model | M | P | Thru-Hole( Diameter) | Piston Area | Plunger Stroke | Jaw Stroke(Diameter) | ||||||||||||||||
| RT-05 | φ118 | 27 | 16mm | 74cm² | 10mm | 4.6mm | ||||||||||||||||
| RT-06 | φ147 | 27 | 20mm | 120cm² | 13mm | 5.5mm | ||||||||||||||||
| RT-08 | φ185 | 28 | 30mm | 190cm² | 16mm | 6.8mm | ||||||||||||||||
| RT-10 | φ220 | 30.5 | 43mm | 280cm² | 19mm | 8.0mm | ||||||||||||||||
| RT-05T | φ118 | 27 | 16mm | 74cm² | 10mm | 4.6mm | ||||||||||||||||
| RT-06T | φ147 | 27 | 20mm | 120cm² | 13mm | 5.5mm | ||||||||||||||||
| Model | Max. Speed (min-1) | Max. Pressure | Gripping Force At Air Pressure(7kgf/cm²)(0.7Mpa) | Gripping Range | Weight (kg) | |||||||||||||||||
| RT-05 | 51 R.P.M | 7 kgf/cm² | 0.7 Mpa | 1340 kgf | 13.1 KN | φ4 - φ136 | 9.3 | |||||||||||||||
| RT-06 | 41 R.P.M | 7 kgf/cm² | 0.7 Mpa | 2330 kgf | 22.8 KN | φ25 - φ166 | 15.5 | |||||||||||||||
| RT-08 | 33 R.P.M | 7 kgf/cm² | 0.7 Mpa | 3730 kgf | 36.5 KN | φ33 - φ215 | 28.5 | |||||||||||||||
| RT-10 | 26 R.P.M | 7 kgf/cm2 | 0.7 Mpa | 5480 kgf | 53.7 KN | φ43 - φ255 | 42.3 | |||||||||||||||
| RT-05T | 51 R.P.M | 7 kgf/cm² | 0.7 Mpa | 1340 kgf | 13.1 KN | φ4 - φ136 | 9.0 | |||||||||||||||
| RT-06T | 41 R.P.M | 7 kgf/cm² | 0.7 Mpa | 2330 kgf | 22.8 KN | φ25 - φ166 | 15.0 | |||||||||||||||
