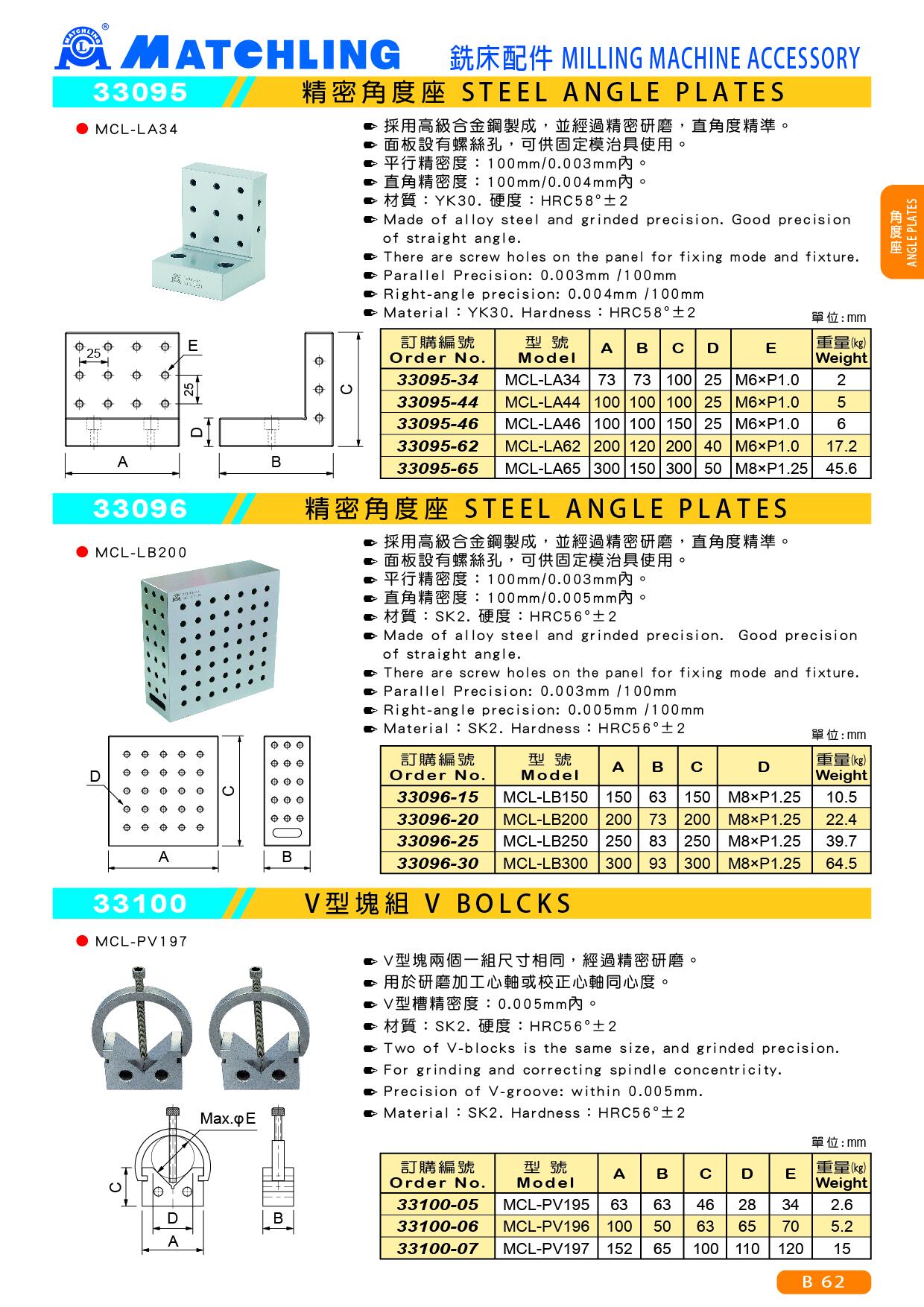

33096 STEEL ANGLE PLATES
● Made of alloy steel and grinded precision. Good precision of Straight angle.
● There are screw holes on the panel for fixing mode and fixture.
● Parallel Precision: 0.003mm /100mm
● Right-angle precision: 0.005mm /100mm
● Material：SK2. Hardness：HRC56°±2
unit：mm
| Order No | Model | A | B | C | D | Weight (kg) |
| 33096-15 | MCL-LB150 | 150 | 63 | 150 | M8xP1.25 | 10.5 |
| 33096-20 | MCL-LB200 | 200 | 73 | 200 | M8xP1.25 | 22.4 |
| 33096-25 | MCL-LB250 | 250 | 83 | 250 | M8xP1.25 | 39.7 |
| 33096-30 | MCL-LB300 | 300 | 93 | 300 | M8xP1.25 | 64.5 |
