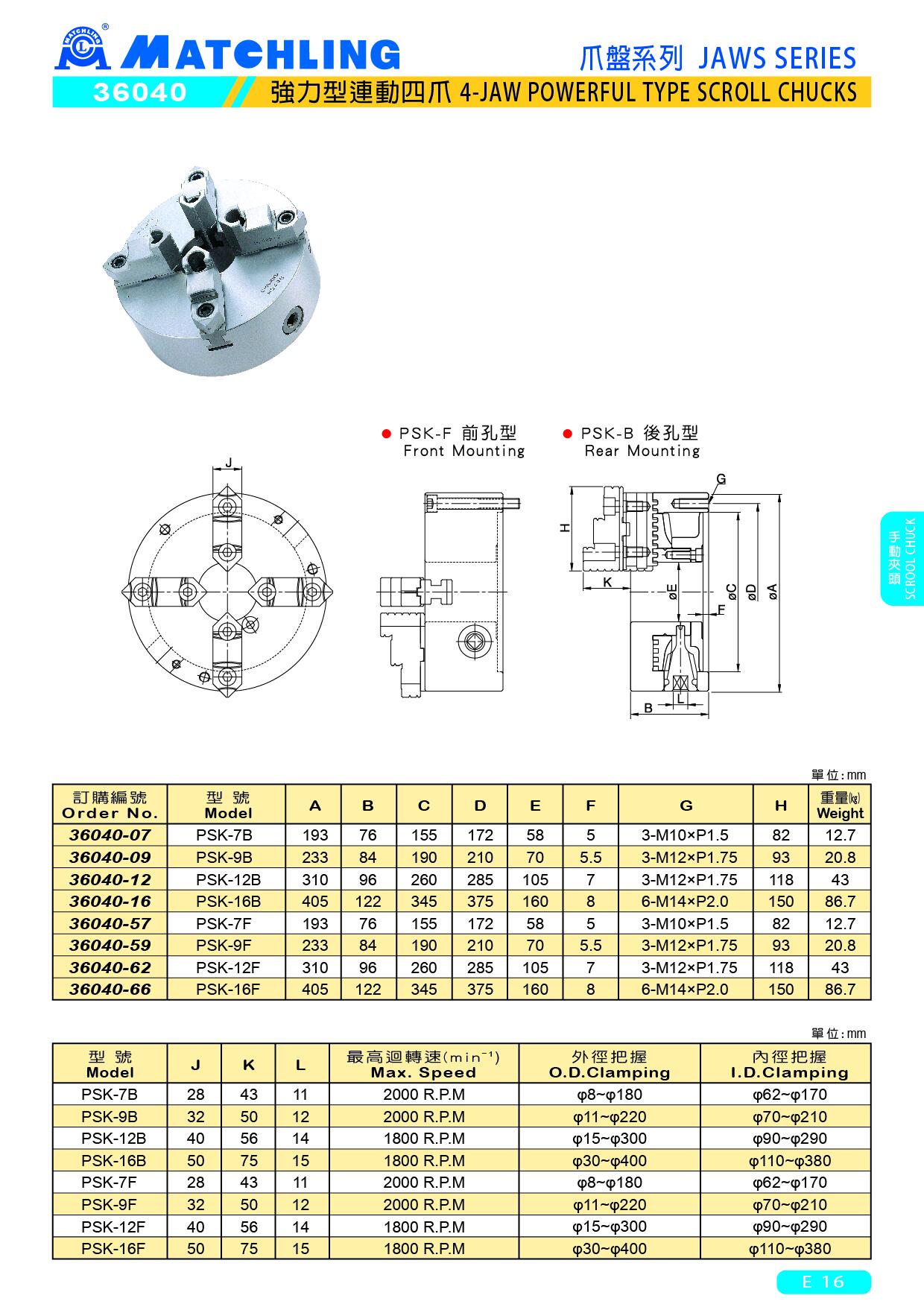

36040 4-JAW POWERFUL TYPE SCROLL CHUCKS
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | Weight (kg) | |||||
| 36040-07 | PSK-7B | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10xP1.5 | 82 | 12.7 | |||||
| 36040-09 | PSK-9B | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12xP1.75 | 93 | 20.8 | |||||
| 36040-12 | PSK-12B | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12xP1.75 | 118 | 43 | |||||
| 36040-16 | PSK-16B | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14xP2.0 | 150 | 86.7 | |||||
| 36040-57 | PSK-7F | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10xP1.5 | 82 | 12.7 | |||||
| 36040-59 | PSK-9F | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12xP1.75 | 93 | 20.8 | |||||
| 36040-62 | PSK-12F | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12xP1.75 | 118 | 43 | |||||
| 36040-66 | PSK-16F | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14xP2.0 | 150 | 86.7 | |||||
| Model | J | K | L | Max. Speed (min-1) | O・ D.Clamping | I.D.Clamping | |||||||||
| PSK-7B | 28 | 43 | 11 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | |||||||||
| PSK-9B | 32 | 50 | 12 | 2000 R.P.M | φ11~φ220 | φ70~φ210 | |||||||||
| PSK-12B | 40 | 56 | 14 | 1800 R.P.M | φ15~φ300 | φ90~φ290 | |||||||||
| PSK-16B | 50 | 75 | 15 | 1800 R.P.M | φ30~φ400 | φ110~φ380 | |||||||||
| PSK-7F | 28 | 43 | 11 | 2000 R.P.M | φ8~φ180 | φ62~φ170 | |||||||||
| PSK-9F | 32 | 50 | 12 | 2000 R.P.M | φ11~φ220 | φ70~φ210 | |||||||||
| PSK-12F | 40 | 56 | 14 | 1800 R.P.M | φ15~φ300 | φ90~φ290 | |||||||||
| PSK-16F | 50 | 75 | 15 | 1800 R.P.M | φ30~φ400 | φ110~φ380 | |||||||||
