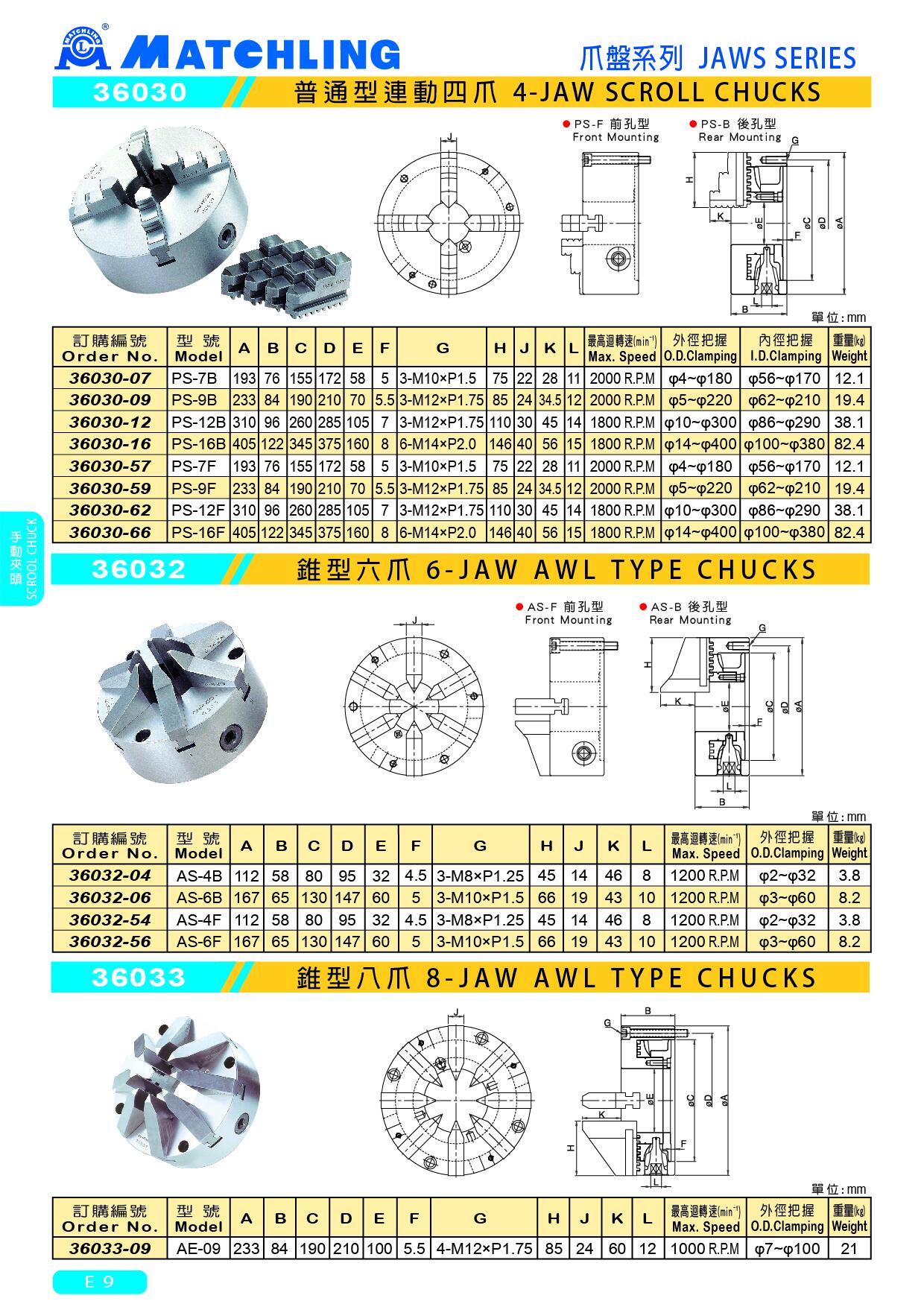

36033 8-JAW AWL TYPE CHUCKS
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | L | Max. Speed (min-1) | O.D.CIamping | Weight (kg) |
| 36033-09 | AE-09 | 233 | 84 | 190 | 210 | 100 | 5.5 | 4-M12xP1.75 | 85 | 24 | 60 | 12 | 1000 R.P.M | φ7~φ100 | 21 |
