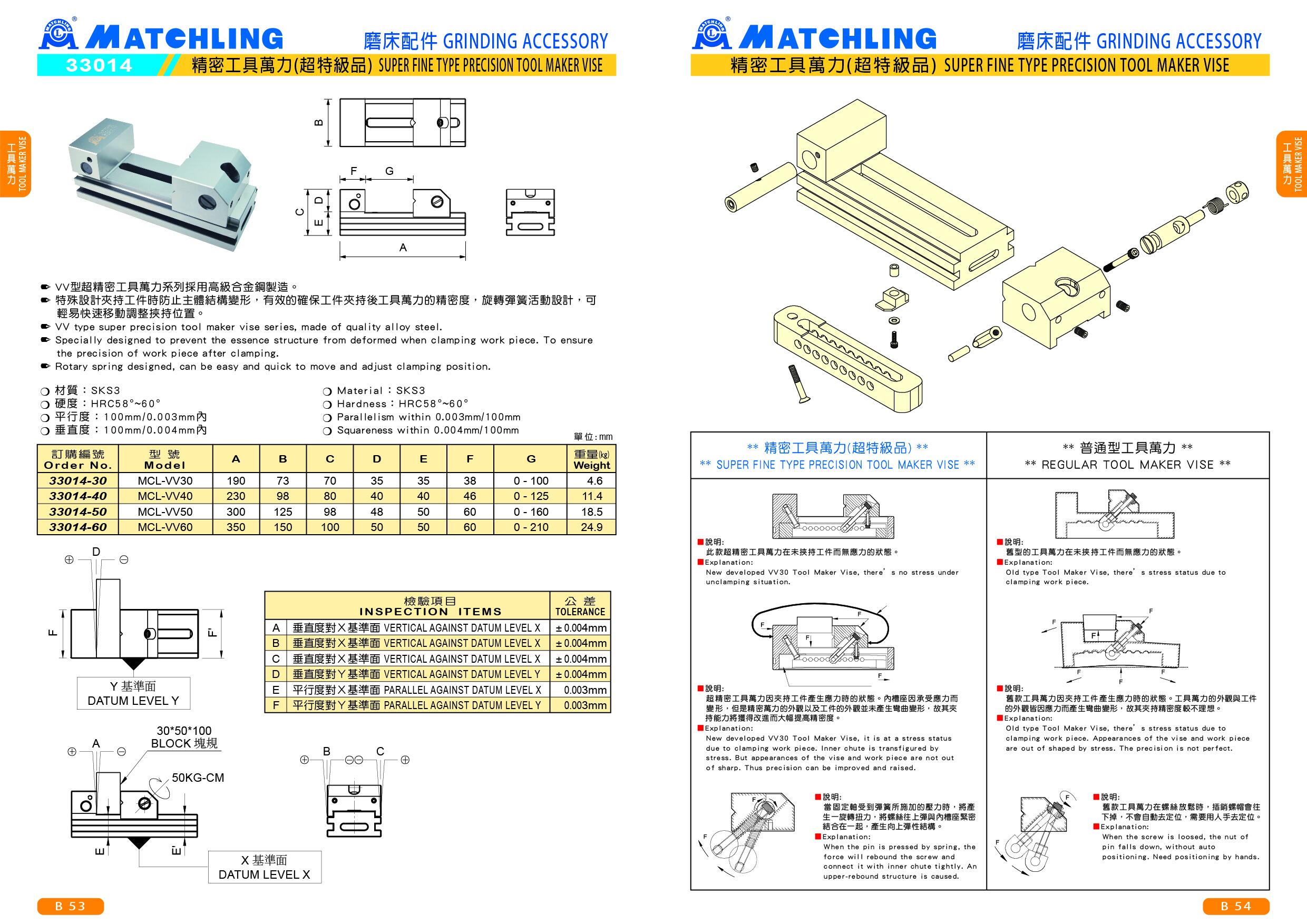

33014 SUPER FINE TYPE PRECISION TOOL MAKER VISE
● Parallelism within:0.003MM/100MM.
● Squareness within:0.005MM/100MM.
● Material:S50C，Hardness:HRC54°±2.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | Weight (kg) |
| 33014-30 | MCL-VV30 | 190 | 73 | 70 | 35 | 35 | 38 | 0-100 | 4.6 |
| 33014-40 | MCL-VV40 | 230 | 98 | 80 | 40 | 40 | 46 | 0-125 | 11.4 |
| 33014-50 | MCL-VV50 | 300 | 125 | 98 | 48 | 50 | 60 | 0-160 | 18.5 |
| 33014-60 | MCL-VV60 | 350 | 150 | 100 | 50 | 50 | 60 | 0-210 | 24.9 |
