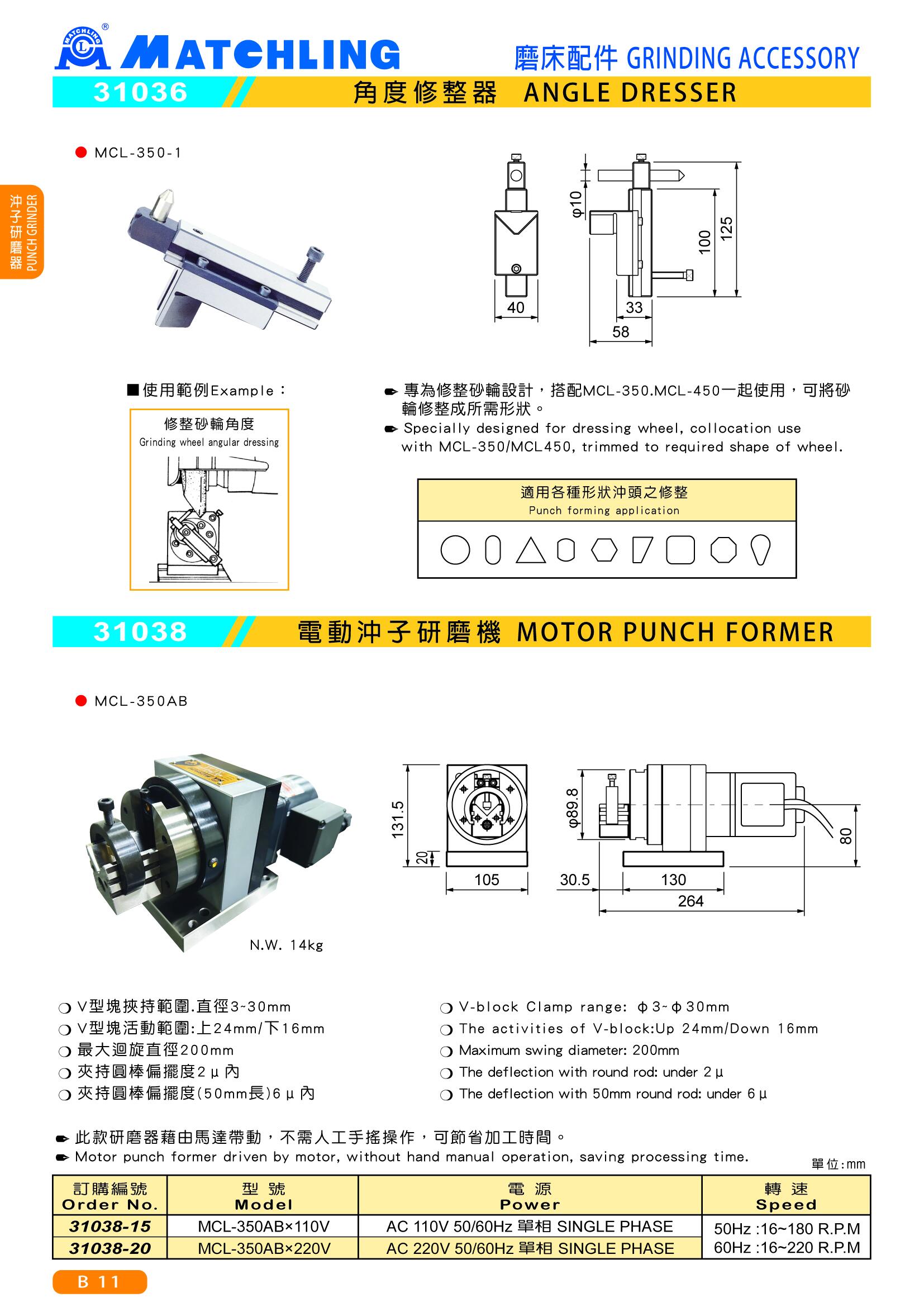

31038 MOTOR PUNCH FORMER
- Motor punch former driven by motor, without hand manual operation, saving processing time.
■ Specifications:
- V-block Clamp range: φ3~φ30mm
- The activities of V-block:Up 24mm/Down 16mm
- Maximum swing diameter: 200mm
- The deflection with round rod: under 2μ
- The deflection with 50mm round rod: under 6μ
■ Accessory:
- C type clip-- 1 piece
unit：mm
| Order No. | Model | Motor | Speed | weight (kg) |
|---|---|---|---|---|
| 31038-15 | MCL-350AB*110V | 50/60Hz SINGLE PHASE | 50Hz :16~180 R.P.M 60Hz :16~220 R.P.M | 14 |
| 31038-15 | MCL-350AB*220V | 50/60Hz SINGLE PHASE | 14 |
