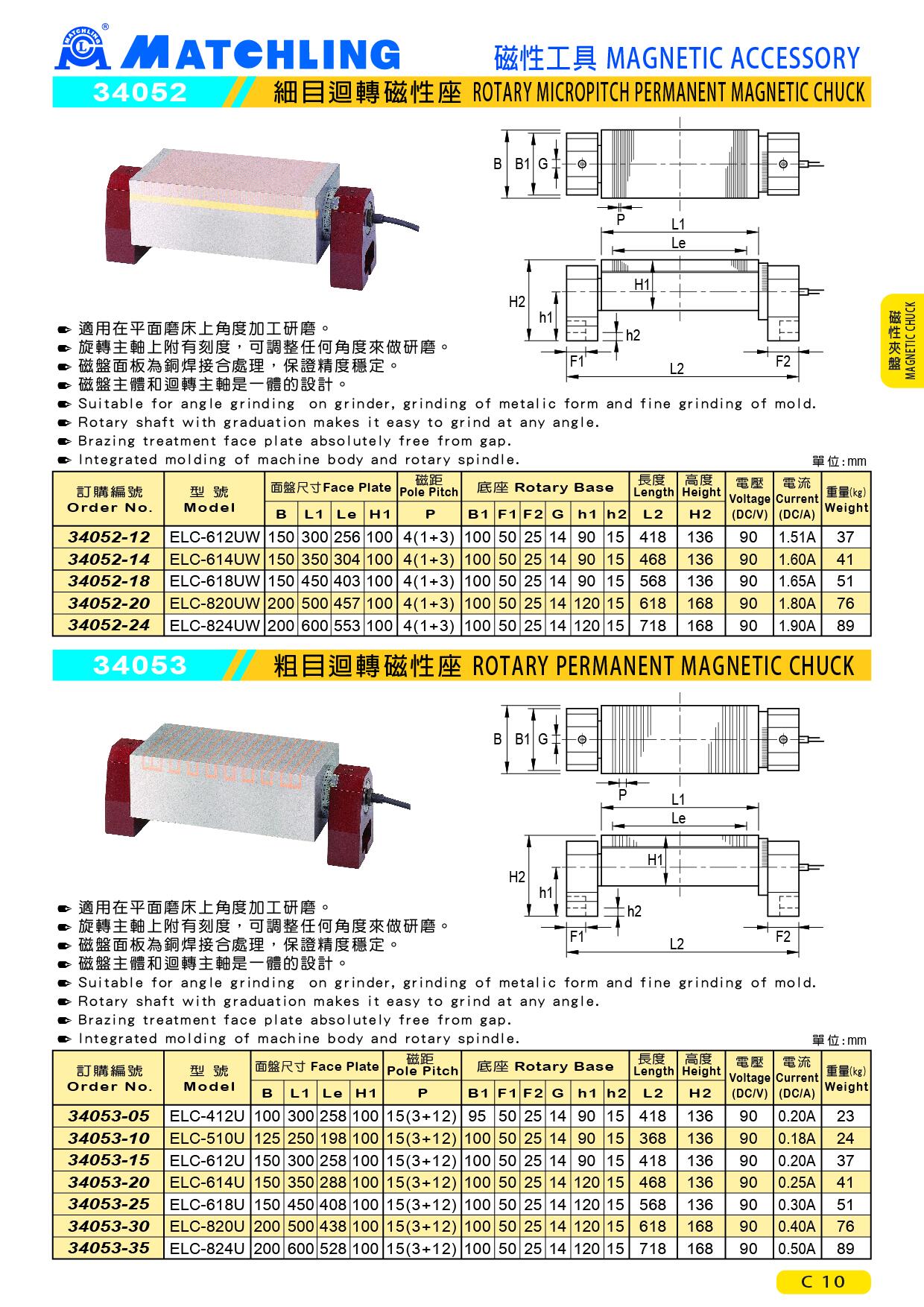

34052 Rotary Micropitch Permanent Magnetic Chuck
● Suitable for angle grinding on grinder, grinding of metalic form and fine grinding of mold.
● Rotary shaft with graduation makes it easy to grind at any angle.
● Brazing treatment face plate absolutely free from gap.
● Integrated molding of machine body and rotary spindle.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Length | Height | Voltage (DC/V) | Current (DC/A) | Weight (kg） | ||||||||
| B | L1 | Le | H1 | P | B1 | F1 | F2 | G | h1 | h2 | L2 | H2 | |||||
| 34052-12 | ELC-612UW | 150 | 300 | 256 | 100 | 4(1+3) | 100 | 50 | 25 | 14 | 90 | 15 | 418 | 136 | 90 | 1.51A | 37 |
| 34052-14 | ELC-614UW | 150 | 350 | 304 | 100 | 4(1+3) | 100 | 50 | 25 | 14 | 90 | 15 | 468 | 136 | 90 | 1.60A | 41 |
| 34052-18 | ELC-618UW | 150 | 450 | 403 | 100 | 4(1+3) | 100 | 50 | 25 | 14 | 90 | 15 | 568 | 136 | 90 | 1.65A | 51 |
| 34052-20 | ELC-820UW | 200 | 500 | 457 | 100 | 4(1+3) | 100 | 50 | 25 | 14 | 120 | 15 | 618 | 168 | 90 | 1.80A | 76 |
| 34052-24 | ELC-824UW | 200 | 600 | 553 | 100 | 4(1+3) | 100 | 50 | 25 | 14 | 120 | 15 | 718 | 168 | 90 | 1.90A | 89 |
