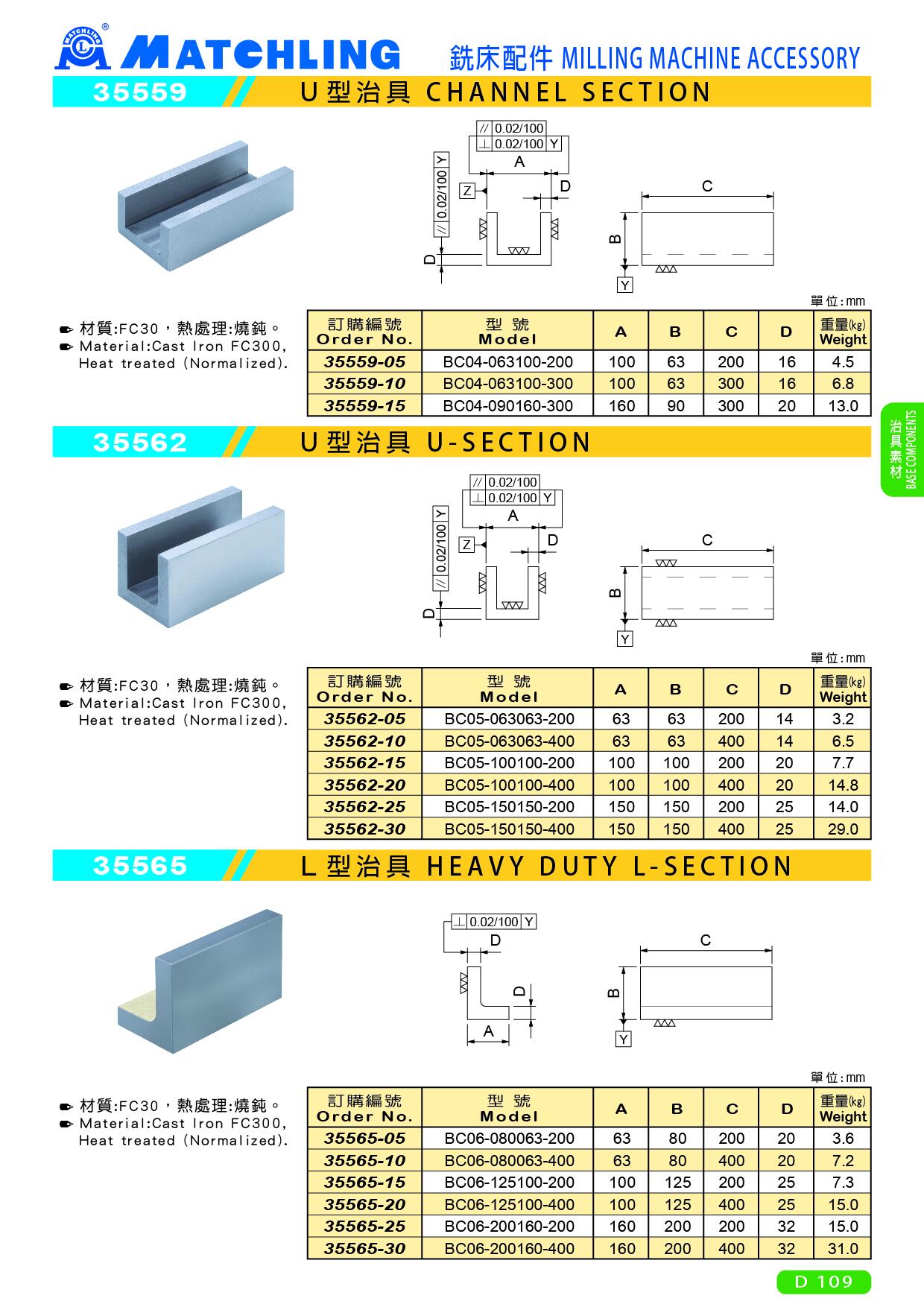

35562 U-SECTION
● Material:Cast Iron FC300, Heat treated (Normalized).
unit：mm
| Order No. | Model | A | B | C | D | Weight (kg) |
| 35562-05 | BC05-063063-200 | 63 | 63 | 200 | 14 | 3.2 |
| 35562-10 | BC05-063063-400 | 63 | 63 | 400 | 14 | 6.5 |
| 35562-15 | BC05-100100-200 | 100 | 100 | 200 | 20 | 7.7 |
| 35562-20 | BC05-100100-400 | 100 | 100 | 400 | 20 | 14.8 |
| 35562-25 | BC05-150150-200 | 150 | 150 | 200 | 25 | 14.0 |
| 35562-30 | BC05-150150-400 | 150 | 150 | 400 | 25 | 29.0 |
