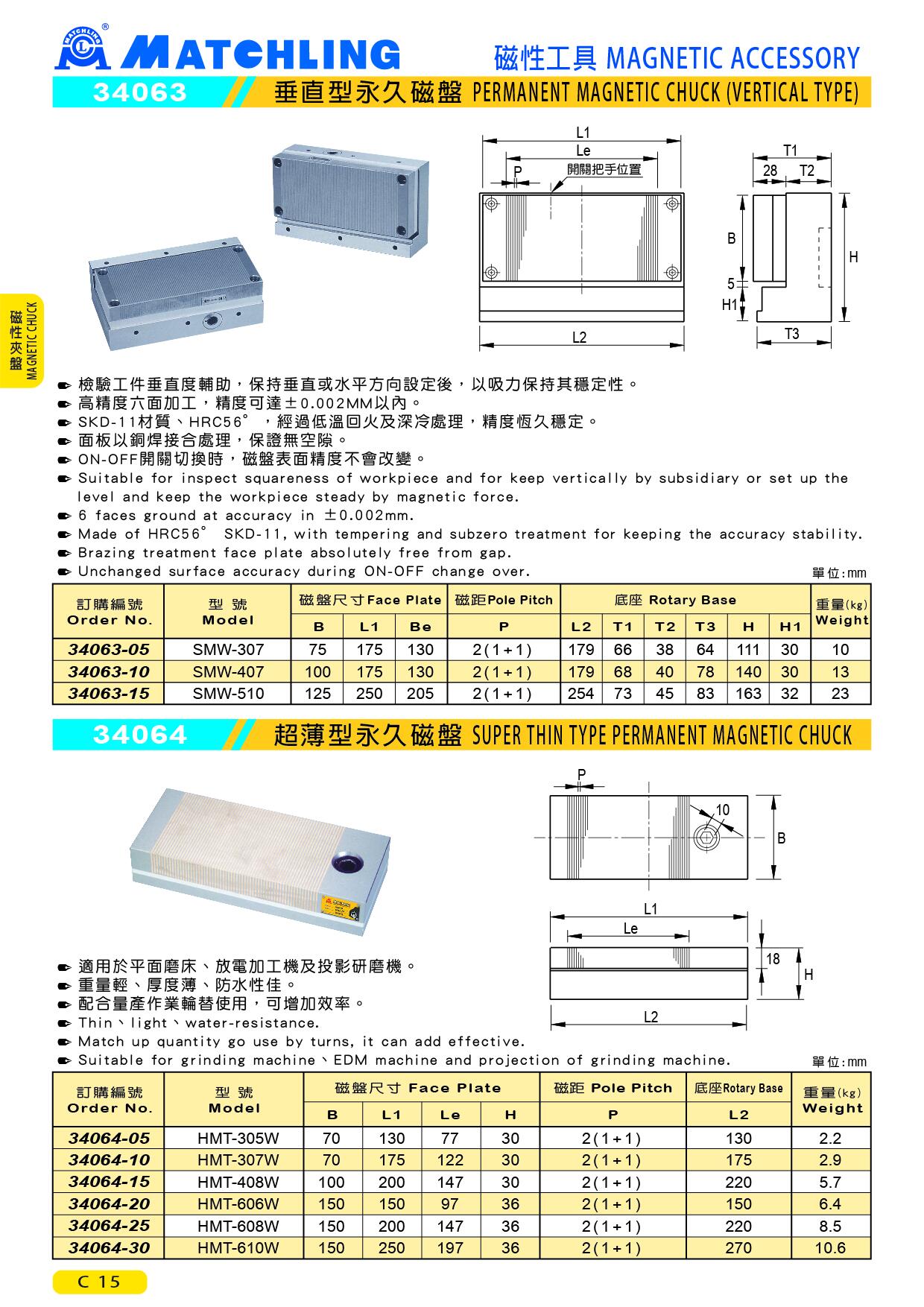

34063 PERMANENT MAGNETIC CHUCK (VERTICAL TYPE)
● Suitable for inspect squareness of workpiece and for keep vertically by subsidiary or set up the level and keep the workpiece steady by magnetic force.
● 6 faces ground at accuracy in ±0.002mm.
● Made of HRC56° SKD-11, with tempering and subzero treatment for keeping the accuracy stability.
● Brazing treatment face plate absolutely free from gap.
● Unchanged surface accuracy during ON-OFF change over.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Weight (kg) | |||||||
| B | L1 | Be | P | L2 | T1 | T2 | T3 | H | H1 | |||
| 34063-05 | SMW-307 | 75 | 175 | 130 | 2(1+1) | 179 | 66 | 38 | 64 | 111 | 30 | 10 |
| 34063-10 | SMW-407 | 100 | 175 | 130 | 2(1+1) | 179 | 68 | 40 | 78 | 140 | 30 | 13 |
| 34063-15 | SMW-510 | 125 | 250 | 205 | 2(1+1) | 254 | 73 | 45 | 83 | 163 | 32 | 23 |
