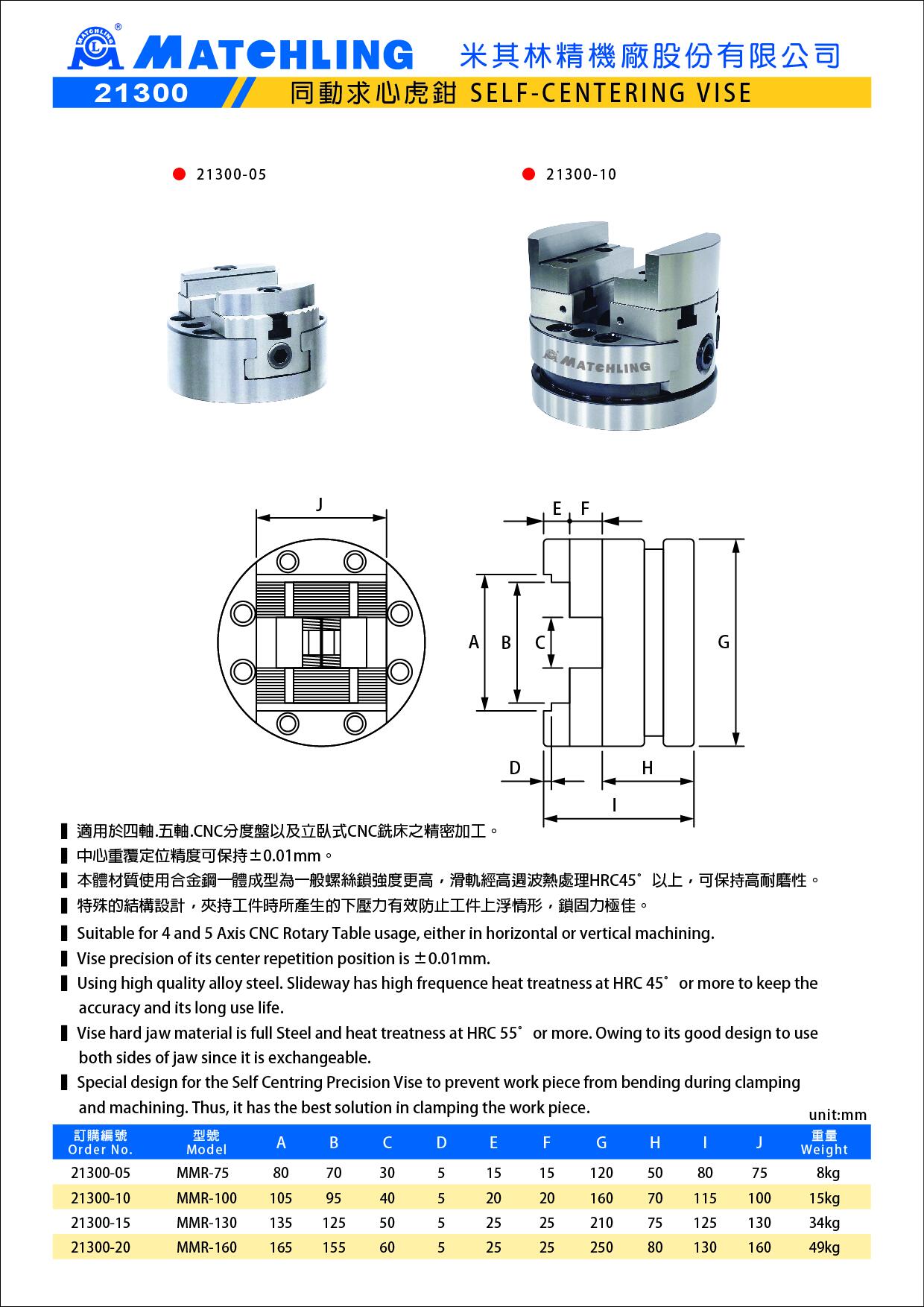

21300 Self-centering Vise
▍Suitable for 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining.
▍Vise precision of its center repetition position is ±0.01mm.
▍Using high quality alloy steel. Slideway has high frequence heat treatness at HRC 45°or more
to keep the accuracy and its long use life.
▍Vise hard jaw material is full Steel and heat treatness at HRC 55°or more. Owing to its good
design to use both sides of jaw since it is exchangeable.
▍Special design for the Self Centring Precision Vise to prevent work piece from bending during
clamping and machining. Thus, it has the best solution in clamping the work piece.
| Order No. | Model | A | B | C | D | E | F | G | H | I | J | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21300-05 | MMR-75 | 80 | 70 | 30 | 5 | 15 | 15 | 120 | 50 | 80 | 75 | 8 |
| 21300-10 | MMR-100 | 105 | 95 | 40 | 5 | 20 | 20 | 160 | 70 | 115 | 100 | 15 |
| 21300-15 | MMR-130 | 135 | 125 | 50 | 5 | 25 | 25 | 210 | 75 | 125 | 130 | 34 |
| 21300-20 | MMR-160 | 165 | 155 | 60 | 5 | 25 | 25 | 250 | 80 | 130 | 160 | 49 |
