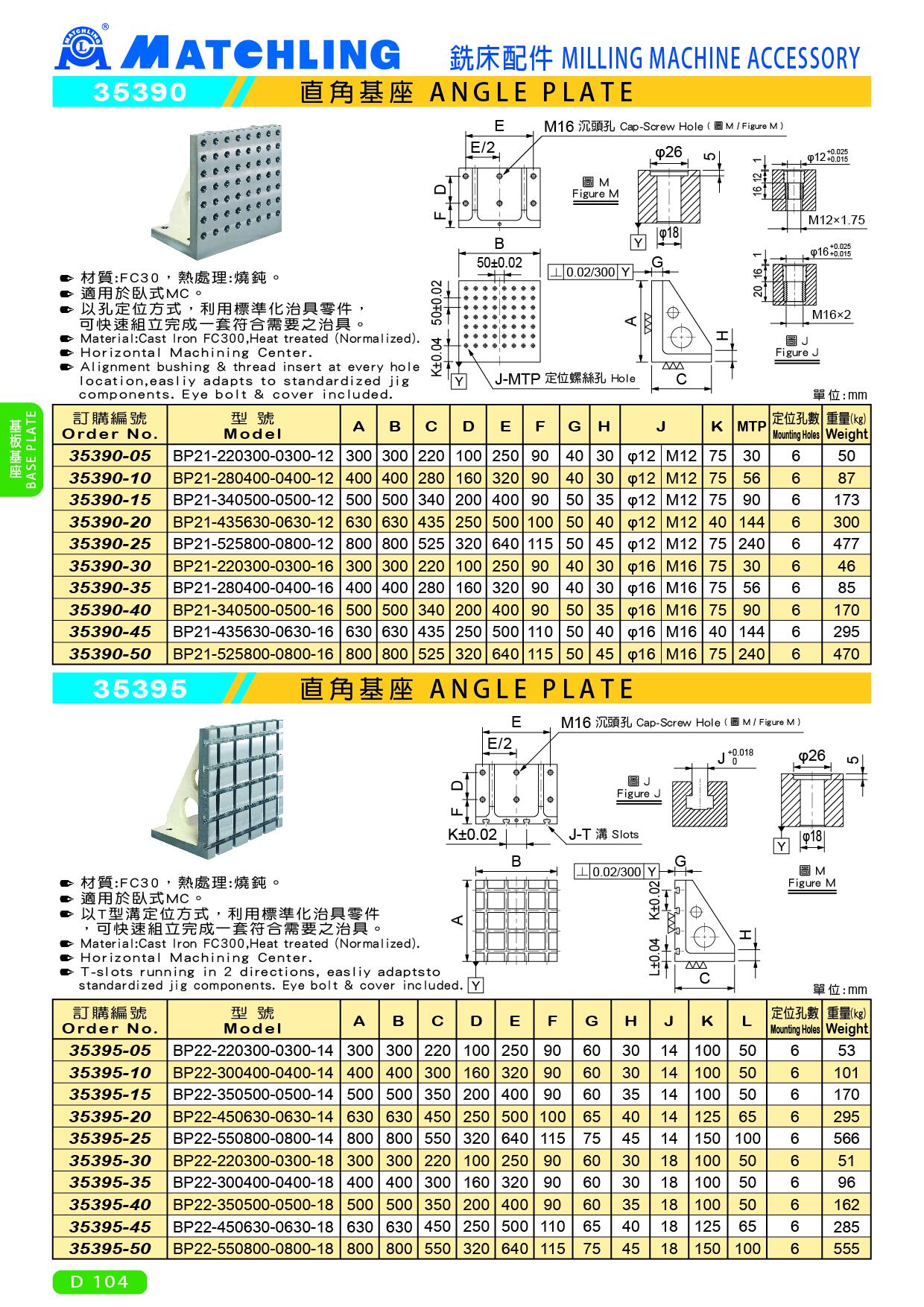

35395 ANGLE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● T-slots running in 2 directions,easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | L | Mounting Holes | Weight (kg) |
| 35395-05 | BP22-220300-0300-14 | 300 | 300 | 220 | 100 | 250 | 90 | 60 | 30 | 14 | 100 | 50 | 6 | 53 |
| 35395-10 | BP22-300400-0400-14 | 400 | 400 | 300 | 160 | 320 | 90 | 60 | 30 | 14 | 100 | 50 | 6 | 101 |
| 35395-15 | BP22-350500-0500-14 | 500 | 500 | 350 | 200 | 400 | 90 | 60 | 35 | 14 | 100 | 50 | 6 | 170 |
| 35395-20 | BP22-450630-0630-14 | 630 | 630 | 450 | 250 | 500 | 100 | 65 | 40 | 14 | 125 | 65 | 6 | 295 |
| 35395-25 | BP22-550800-0800-14 | 800 | 800 | 550 | 320 | 640 | 115 | 75 | 45 | 14 | 150 | 100 | 6 | 566 |
| 35395-30 | BP22-220300-0300-18 | 300 | 300 | 220 | 100 | 250 | 90 | 60 | 30 | 18 | 100 | 50 | 6 | 51 |
| 35395-35 | BP22-300400-0400-18 | 400 | 400 | 300 | 160 | 320 | 90 | 60 | 30 | 18 | 100 | 50 | 6 | 96 |
| 35395-40 | BP22-350500-0500-18 | 500 | 500 | 350 | 200 | 400 | 90 | 60 | 35 | 18 | 100 | 50 | 6 | 162 |
| 35395-45 | BP22-450630-0630-18 | 630 | 630 | 450 | 250 | 500 | 110 | 65 | 40 | 18 | 125 | 65 | 6 | 285 |
| 35395-50 | BP22-550800-0800-18 | 800 | 800 | 550 | 320 | 640 | 115 | 75 | 45 | 18 | 150 | 100 | 6 | 555 |
